Shaft Seals Archives

235c

Item #N/A

Single Spring Mechanical Seal 235C – Equal to industry standard number 235/ PS-235

1″ Single spring mechanical seal with 1.625 x 0.437 cup seat, 1.547 rotary OD, 1″ working length

Crimped rotary head, electro polished 304SS metal parts.

Single spring mechanical seal, with an elastomeric bellows, independent of the direction of rotation of the shaft. Utilized in centrifugal pumps, mixers, rotating equipment, and further apparatus.

View Product

358c

Item #N/A

Single Spring Mechanical Seal 358C – Equal to industry standard number 358/ PS-358

3/4″ Single spring mechanical seal with 1.375 x .405″ cup seat , 1.197 rotary OD, .875″ working length

Crimped rotary head , electro polished 304SS metal parts.

Single spring mechanical seal, with an elastomeric bellows, independent of the direction of rotation of the shaft. Utilized in centrifugal pumps, mixers, rotating equipment, and further apparatus.

View Product

359c

Item #N/A

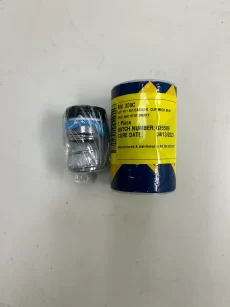

Single Spring Mechanical Seal 359C – Equal to industry standard number 359 / PS-359

5/8″ Single spring mechanical seal with 1.250 x .406″ cup seat , 1.063 rotary OD, .875″ working length

Crimped rotary head , electro polished 304SS metal parts.

Single spring mechanical seal, with an elastomeric bellows, independent of the direction of rotation of the shaft. Utilized in centrifugal pumps, mixers, rotating equipment, and further apparatus.

Style	N11 mechanical seal
Function	Pumps, mixers, and further apparatus

View Product

PS-185C

Item #185C

PS-185C

Style	Mechanical Seal
Material	CAR/CER/NIT, CAR/CER/VIT, SIC/SIC/VIT
Function	Rotary Sealing

View Product

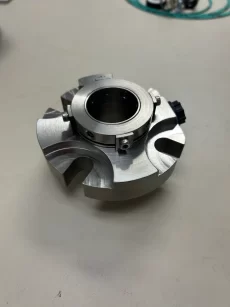

Single cartridge mechanical seal SMSC 1sv 1-3/8″

High Quality Single Cartridge Mechanical Seal. Multiple spring mechanical seals are available in a broad range of elastomers to handle almost any industrial fluid. A snap ring unites all the parts in a unified construction concept, making on-site repairs simple.

Features:

In applications involving high pressure and high temperature, monolithic seal faces offer the highest level of face stability, extending seal life. Seal face drives minimize face damage in stop/start applications and viscous fluids by covering a large contact surface.

A single cartridge stationary seal with modular monolithic seal faces.

Large 3/8″ NPT ports maximize cooling and extend seal life.

Short inboard axial length.

Reduces power consumption with hydraulically balanced seal face technology.

Non-shaft-fretting sleeve elastomer and positive set screw drive.

Multiple spring seal-face loading.

Stationary design suitable for high speed applications.

Sizes available from 1″ to 3/8″ in standard and ANSI.
