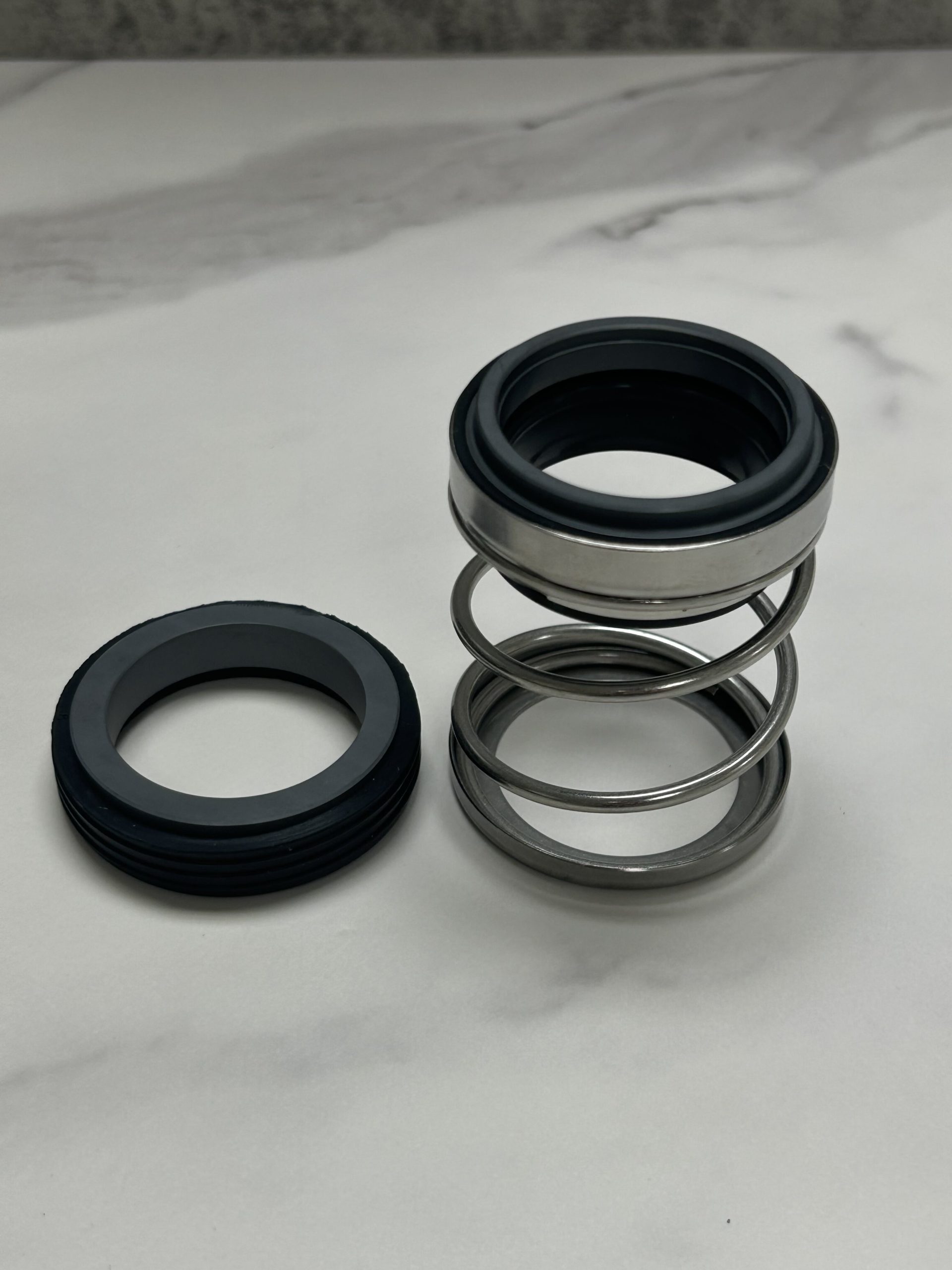

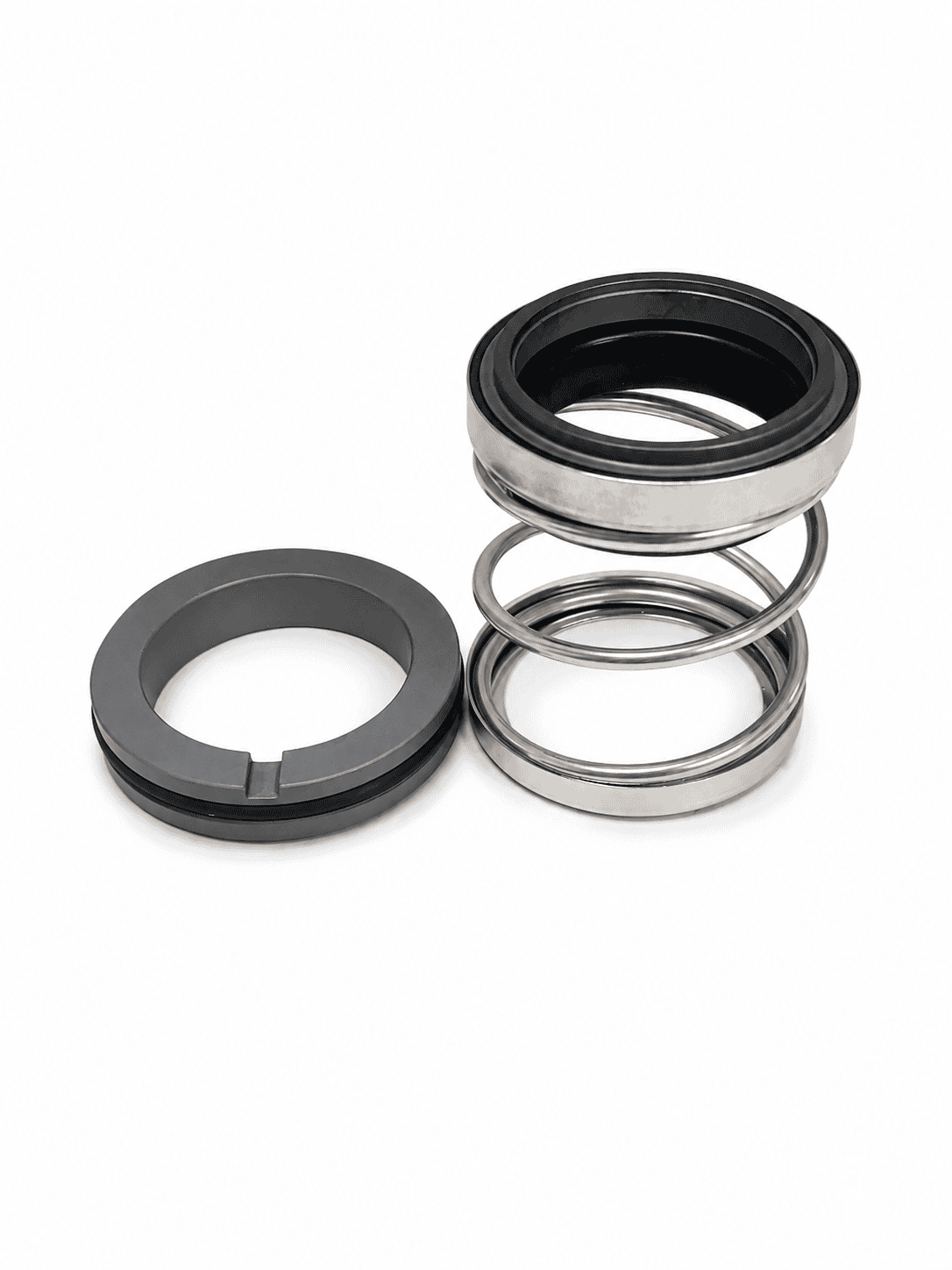

7679c Mechanical Seal (PS-7679) – 1-3/4″

7679c single spring mechanical seal (also called 550CVSS), PS-7679 equivalent. Fits 1-3/4″ shaft with 2.500″×0.500″ seat and Type N-11 (Type C/21) rotary head; SiC/SiC with Viton (FKM).

Typical applications: Centrifugal pumps, mixers, and other rotating equipment.

Key specs
Shaft size: 1-3/4″ single spring seal • Seat: 2.500″ × 0.500″ cup • Rotary OD: 2.402″ • Working length: 1.375″

Design & construction
Crimped rotary head (Type N-11)—similar to industry Type C / 21; can also replace Type D / 2 with a simple spring change (in most cases). Features an O-ring seat with rear relief slots for improved seating/fit. Electro-polished 304 stainless steel metal parts. Elastomeric bellows. Non-directional (independent of shaft rotation).

Material: SIC/SIC/VIT — Silicon Carbide vs. Silicon Carbide faces, Viton elastomers

Cross reference & alternative part numbers

PS-7679
7679c
550CVSS (also searched as 550cvss / 550-CVSS / 550 CVSS)
PS-550

Explore our full lineup of Single Spring Seals—PS replacements, pool/spa seals, and our SPS line.

Looking for more? Shop Pump Repair Kits, Parts & Accessories, and  Gaskets.

Please click “specifications” below for OEM numbers and Pump Nameplate Data
