1155c Mechanical Seal (PS-1155) – 5/8″

buy PS-1155 Pump Seal

1155c Mechanical Seal (PS-1155) – 5/8″

SKU: N/A

Weight .5 lbs
Dimensions 1 × 1 × 1.5 in
QTY Price
Have a Question?
  • DESCRIPTION

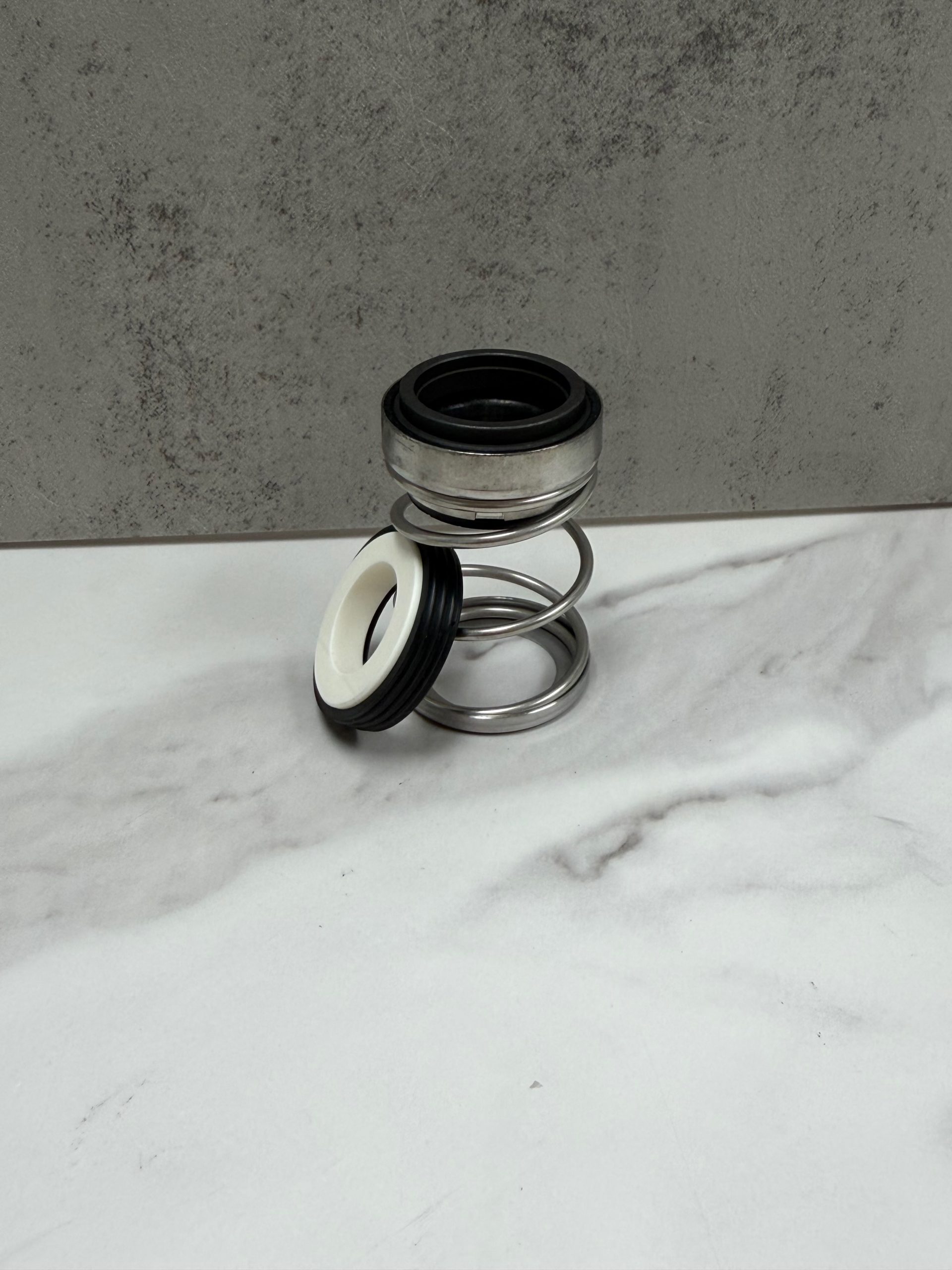

    Mechanical Seal 1155C — Type 166

    1155c Type 166 single spring mechanical seal, PS-1155 equivalent. Fits 5/8″ shaft with 1.187″× 0.288″/0.296″ cup seat and 1.063″ rotary OD / 0.875″ working length (Type 166 footprint).

    At-a-glance

    • Footprint: Type 166 (single spring)

    • Cup seat: 1.187″ × 0.288″ / 0.296″

    • Rotary OD / Working length: 1.063″ / 0.875″

    Replaces common styles
    Type 16, G, A, 6, AV, 2100 (drop-in crossover).

    Material options (choose above)

    • CAR/CER/NIT — Carbon/Ceramic, Nitrile

    • CAR/CER/VIT — Carbon/Ceramic, Viton

    • CAR/SIC/VIT — Carbon/Silicon Carbide, Viton

    • SIC/SIC/VIT — Silicon Carbide/Silicon Carbide, Viton

    Build details
    Our Type 166 configuration uses a full metal retainer, positive-drive crimped rotary, and full rubber bellows for strong drive and sealing. Carbon-face versions use a true carbon face (not plastic/phenolic) for longer service life.

    OEM / Cross-reference

    • OEM numbers: 15529, 10K55 , 10K46 , 10K62, 10K92, 10k87, 10k88

    • Brands (examples): Goulds Pumps, Wayne Combustion Systems (Series J and S nameplates)

    Have questions? Check out our Single Spring Seal Guide  or call us anytime—we’re here to help.

    Explore our full lineup of Single Spring Seals—PS replacements, pool/spa seals, and our SPS line.

    Looking for more? Shop Pump Repair Kits, Parts & Accessories, and Pre-Cut Gaskets.

    Please click “specifications” below for OEM numbers and Pump Nameplate Data



  • SPECIFICATIONS
    Cross References / Alternative Part Numbers

    OEM numbers: 15529, 10K55 , 10K46 , 10K62, 10K92, 10k87, 10k88

    Brands: GOULDS PUMPS , WAYNE COMBUSTION SYSTEMS

    Nameplate Data: Series J and S

    Part number variations
    PS-1155 / PS1155 / PS 1155
    1155c / 1155 C / 1155-c
    15529
    10K55 / 10K46 / 10K62 / 10K92 / 10K87 / 10K88

    Size / measurement variations
    5/8″ mechanical seal / 0.625″ seal / 5 8 seal
    1.187 seat / 1.187″ seat OD
    1.187 × 0.288 seat / 1.187 × 0.296 seat
    1.063 rotary OD
    0.875 working length

    Style variations
    Type 166 seal / Type 166 pump seal
    Type 16 / G / A / 6 / AV / 2100 seal

  • PHYSICAL PROPERTIES

    Seal House Type 166
    Our Type 166 configuration combines the best design elements we’ve refined over the years to deliver superior reliability and performance.

    Key advantages include:

    • Crimped rotary face with positive drive — securely held in place to prevent dislodgement during installation.

    • Full metal retainer with positive drive — ensures strength and long-term durability.

    • Full rubber bellows construction — provides complete sealing along both the shaft and face, rather than relying on a small O-ring or partial gasket.

    • Molded carbon face (never plastic) — delivers extended service life.

    Compatibility & upgrade:

    The Type 166 is designed to replace most small seal types commonly used in pool and spa applications, including Type 16, G, A, 6, AV, 2100, and more. Even in its basic form, this seal is a significant upgrade over standard “pool” seals typically available on the market

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
