2161 Mechanical Seal (PS-2161) — 5/8″ | Marlow SCT & LX Pumps

2161 Mechanical Seal (PS-2161) — 5/8″ Type 6A

Equal to industry standard 2161 / PS-2161. Direct-fit Type 6A single-spring seal for pool, spa and small-pump applications — built with molded carbon / ceramic faces and Buna-N elastomers for dependable everyday service.

At a Glance

5/8? shaft • 1.437? OD • 0.615? operating height • 1.375? × 0.406? ceramic cup seat • Type 6A • Molded carbon/Ceramic faces • Buna-N elastomers

Cross References:

Replaces Marlow (ITT Industries) 46328-00 and 46328000000 on SCT Series stainless steel pumps, and fits LX pumps. Cross-references to US Seal PS-2161.

Construction

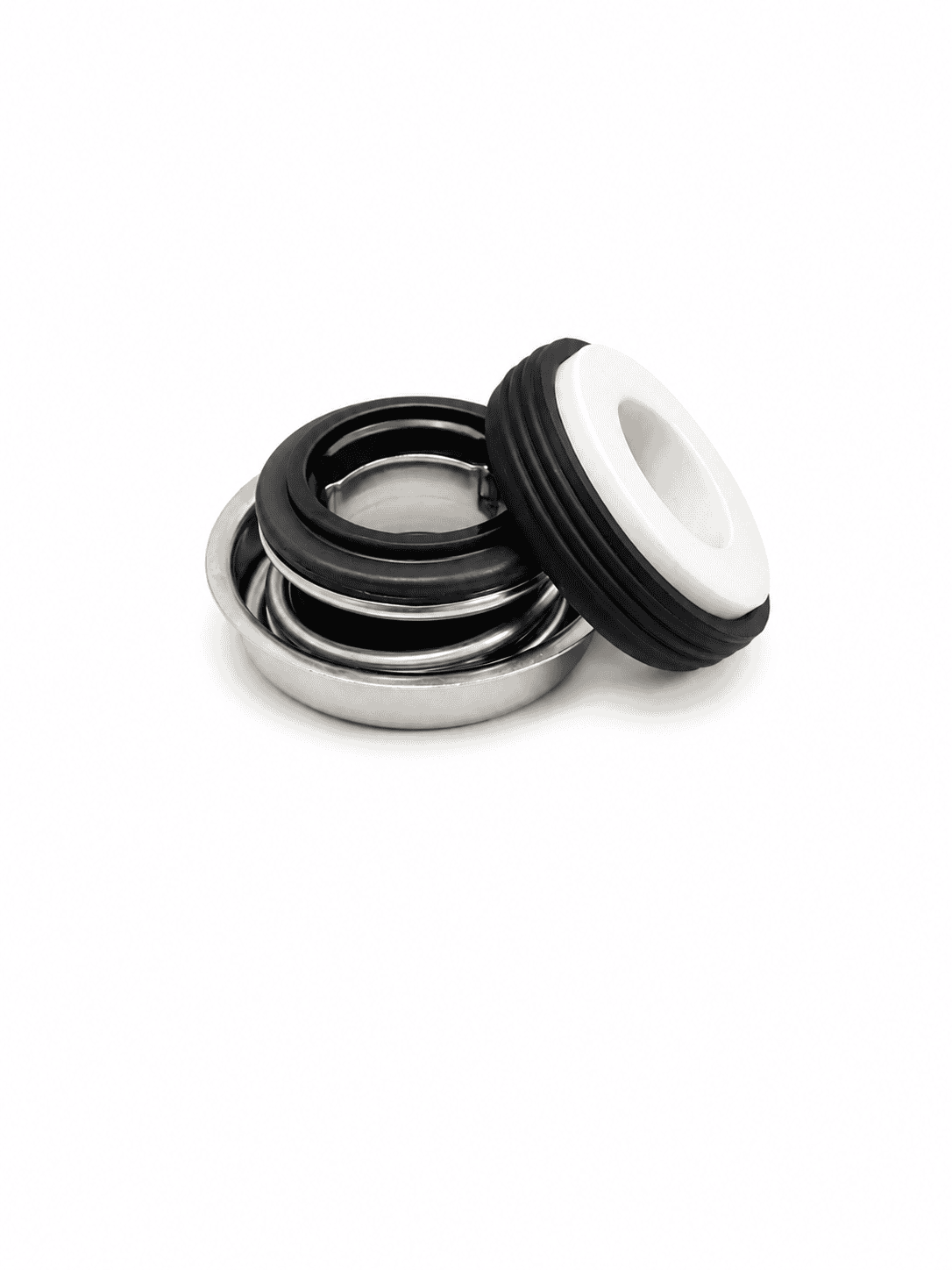

Single-spring design running a molded carbon rotary face against a ceramic cup seat, with Buna-N elastomers throughout. Working length 0.615″ — check this against your old seal if you are matching from a worn part, as it is what separates the 5/8″ families from one another.

Is the 2161 Your Seal?

Pool and spa seals are rarely marked, so most people match by measuring. Check three things against your old seal:

• Shaft diameter — 5/8″. Measure the motor shaft, not the seal bore.

• Ceramic seat outside diameter — 1.375″. This is the flat ceramic ring that presses into the pump housing

• Working length — 0.615″, the height of the seal assembly as it sits compressed.

Need Help Matching?

Send a photo of the old seal and your pump nameplate to info@sealhouseusa.com, or call or text 561-414-1046 — our seal specialists will confirm it before you order. No purchase required. Not sure which family you need? See our  Pool/Spa Small Pump Guide
