523c Mechanical Seal (PS-523) – 1-7/8″

N22 pump seal ps-2016, ps-4518 ps-188 ps-754 ps-204 ps-361 ps-354 ps-305 ps-745 ps-205 ps-523 ps-479 ps-537 ps-323

523c Mechanical Seal (PS-523) – 1-7/8″

SKU: N/A

Weight 1 lbs
Dimensions 8 × 6 × 4 in
QTY Price
Have a Question?
  • DESCRIPTION

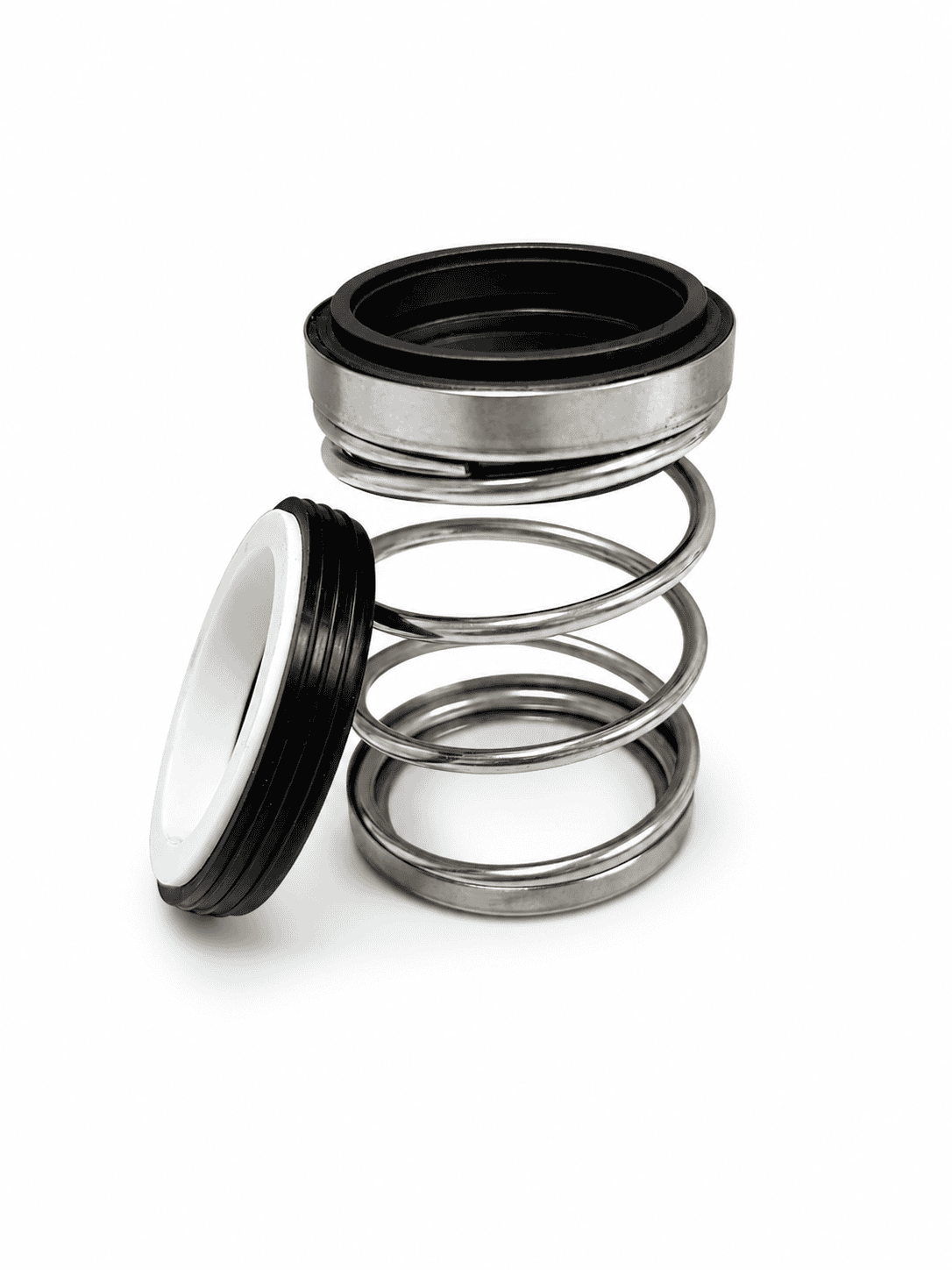

    Single Spring Mechanical Seal 523c | PS-523 Equivalent

    523c single spring mechanical seal, PS-523 / 523 equivalent. Fits 1-7/8″ shaft with 2.625″× 0.500″ cup seat, and Type N-22 rotary head.

    Key specs: Shaft size: 1-7/8″ single spring seal • Seat: 2.625″ x 0.500″ • Rotary OD: 2.520″• Working length: 2.125″

    Crimped rotary head type N-22. Utilized in centrifugal pumps, mixers, rotating equipment, and further apparatus.

    Interchange / replacements:

    • Equivalent to Pac-Seal T-21 (long working length) and Burgmann MG9

    • Can replace Type E and Type 1 in many applications (confirm dimensions)

    Design & construction:

    • Electro-polished 304 stainless steel metal parts

    • Elastomeric bellows for stable sealing and easy installation

    • Independent of shaft rotation

    Material options (select above):

    • CAR/CER/NIT — Carbon/Ceramic, Nitrile elastomers

    • CAR/CER/VIT — Carbon/Ceramic, Viton elastomers

    • SIC/SIC/VIT — Silicon Carbide/Silicon Carbide, Viton elastomers

    Have questions? Check out our Single Spring Seal Guide  or call us anytime—we’re here to help.

    Explore our full lineup of Single Spring Seals—PS replacements, pool/spa seals, and our SPS line.

    Looking for more? Shop Pump Repair Kits, Parts & Accessories, and  Gaskets.

    Please click “specifications” below for OEM numbers and Pump Nameplate Data
  • SPECIFICATIONS
    Cross Reference / Alternative Part Numbers

    OEM numbers: None available

    Brands: None available

    Nameplate Data: None available

    Part number variations
    PS-523 / PS523 / PS 523
    523 seal / 523 mechanical seal / 523 pump seal
    523c / 523 C / 523C / 523-c

    Size / measurement variations
    1-7/8″ mechanical seal / 1.875″ seal / 1 7/8 seal
    2.625 × .500 seat / 2-5/8 × 1/2 seat / 2.625 x 0.5 seat
    2.520 rotary OD / 2.520″ OD
    2.125 working length / 2-1/8 working length

    Style variations
    N-22 / N22 / T-N22 seal head
    Pac-Seal T-21 (long working length)
    Burgmann MG9
    Type E / Type 1 / T-E/1 / C/21

  • PHYSICAL PROPERTIES

    T-N11/N22 Seal Heads

    Our T-N11/N22 type seal heads are designed with a reduced outer diameter, making them fully compatible with ANSI seal chamber dimensions. The rotary portion of our seal is typically smaller than the stationary seat, and can fit straight box bores where many other seals cannot.

    These seals are direct replacements for industry-standard T-E / 1 heads as well as C / 21 models.

    Note: The N11/N22 seal designs max shaft size is 2.25″. For larger shafts, please refer to our other seal types.

    Have questions? Call us anytime—we’re here to help.

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
