Goulds 5K256 / 5K522 Diaphragm Gasket — Irri-Gator GT

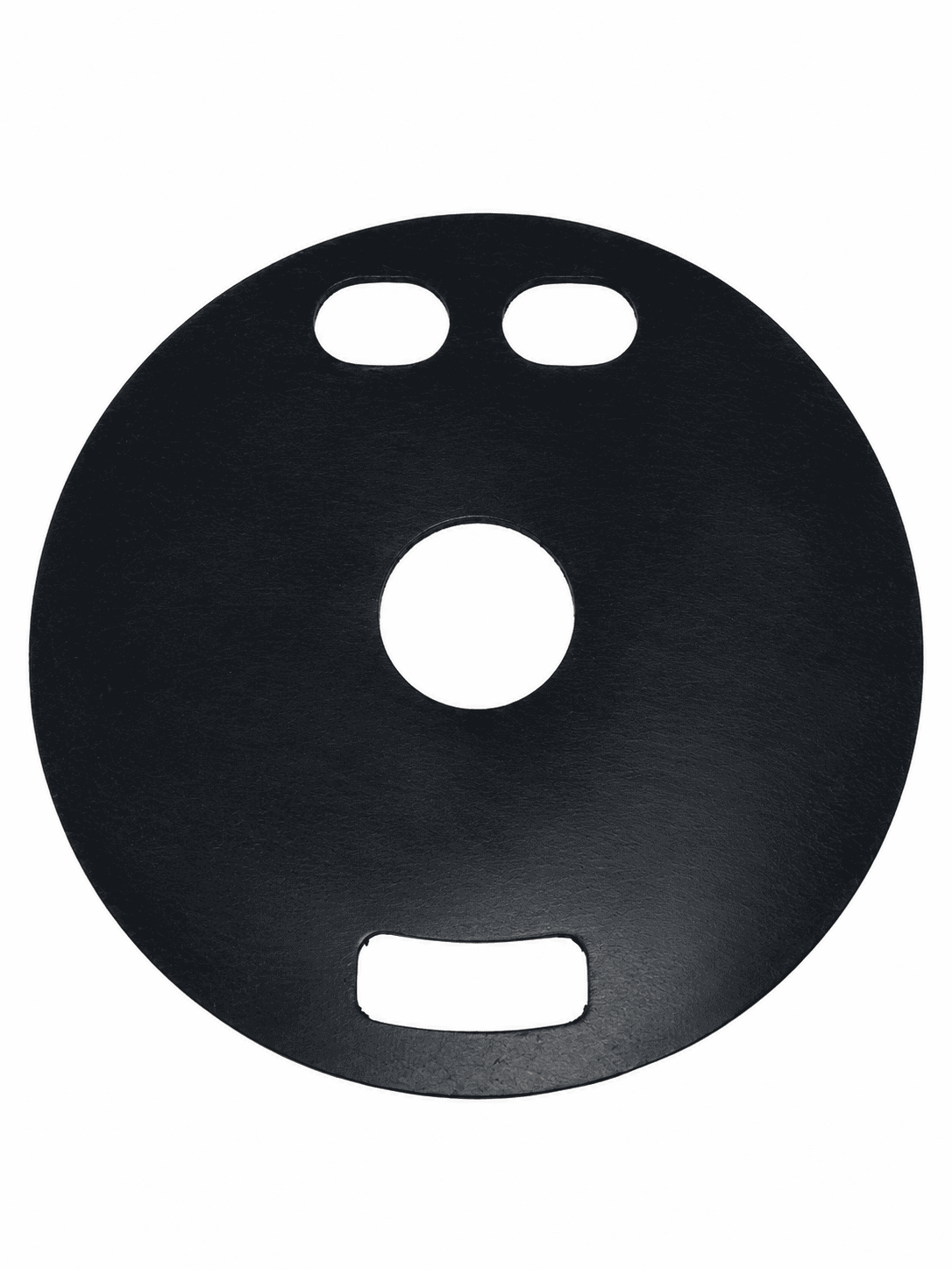

Goulds 5K256 neoprene diaphragm gasket, also 5K522, for Irri-Gator GT self-priming pumps

Goulds 5K256 / 5K522 Diaphragm Gasket — Irri-Gator GT

Weight .25 lbs
Dimensions 8 × 8 × .25 in
Quantity Price Per Unit
1 - 2 $13.50
3 - 5 $11.48
6 - 9 $10.80
10 + $10.13
QTY Price

$13.50
Have a Question?
  • DESCRIPTION

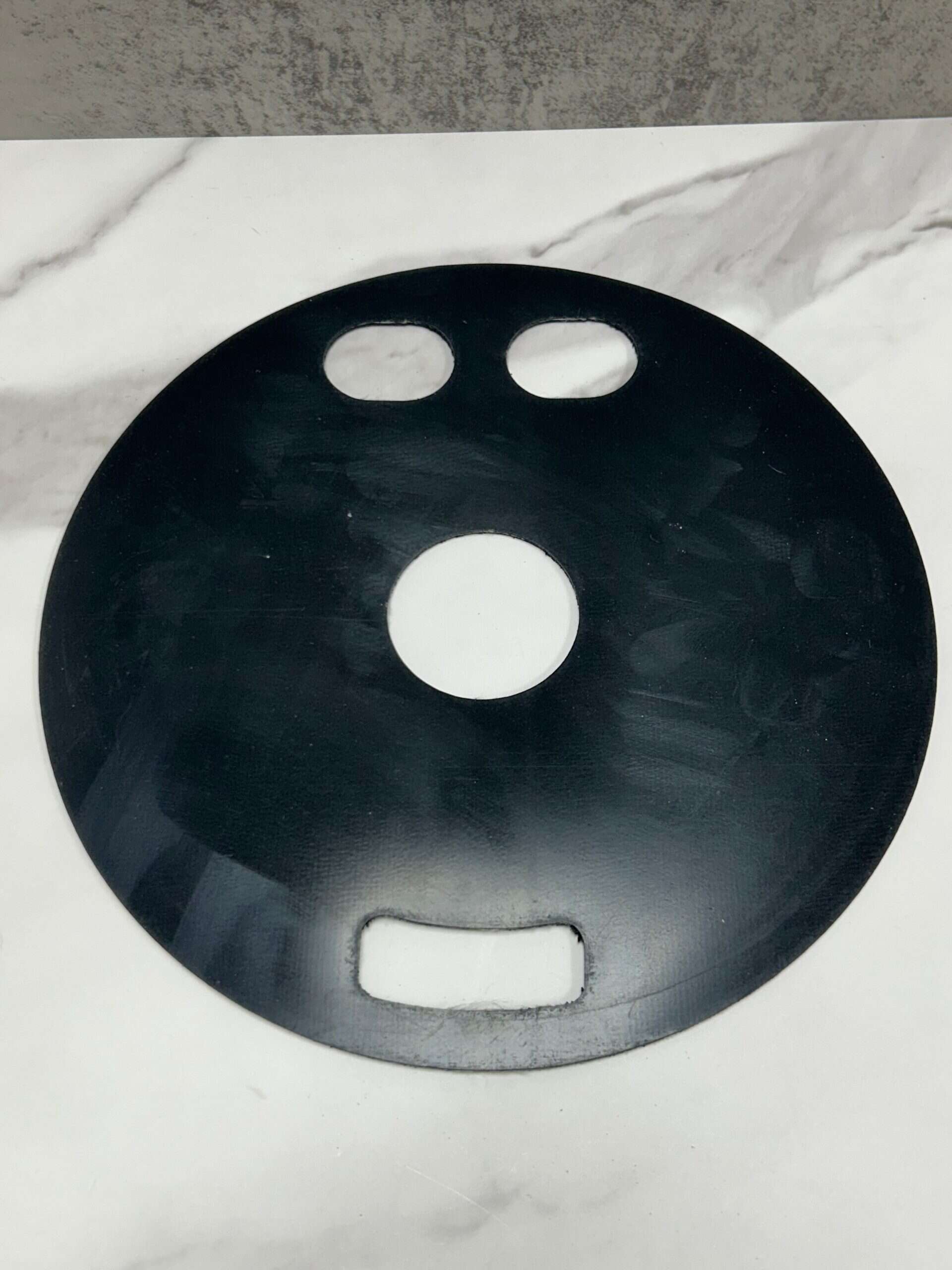

    Goulds 5K256 / 5K522 — Diaphragm Gasket

    The Goulds 5K256 / 5K522 diaphragm gasket is a high-quality replacement component designed for use in Goulds pump systems. This diaphragm gasket provides a reliable seal within the pump assembly, helping maintain proper pressure and system performance.

    These part numbers are commonly used interchangeably, making this gasket a compatible solution for multiple Goulds pump configurations. Fits the full Goulds Irri-Gator GT range of self-priming centrifugal pumps: GT07, GT10, GT15, GT20 and GT30 single phase, and GT073, GT103, GT153, GT203 and GT303 three phase, ¾ HP through 3 HP. Goulds lists this part as the diaphragm, neoprene, part number 5K256, common to every model in the series.

    Manufactured to meet original specifications, the gasket ensures a precise fit and dependable performance in demanding environments.

    Specs

    • Dimensions: 1.687″ × 7.500″

    • Material: Neoprene rubber, fabric-reinforced, 1/16″ thick, black
      (All of our diaphragm gaskets use highly reinforced neoprene unless otherwise specified.)

    Cross-reference

    • Goulds: 5K256 / 5K522

    Working on a Goulds Irri-Gator GT pump? We build a complete rebuild kit for these pumps — this diaphragm together with the shaft seal and the guide vane seal ring, in one part number instead of three.

    Goulds Irri-Gator GT Repair Kit — GT07, GT10, GT15, GT20, GT30 and three-phase GT073 to GT303

    Buying the parts separately? While the wet end is apart, replace the shaft seal and matching guide vane seal ring too — the shaft seal is the most common leak source. Goulds specifies the 10K10 shaft seal across the Irri-Gator GT range, a 5/8″ Type 166:

    Not sure which seal? See the full seal guide

    Explore our full lineup of Pre-cut Gaskets.

    Looking for more? Check out our Mechanical Seals, Pump Repair Kits , & Parts/Accessories

    Have questions? Call us anytime-we’re here to help
