Hayward Super II Seal Kit — PS-201 Shaft Seal, Housing & Diffuser Gaskets (SPX1600Z2 / SPX3000T / SPX1600R)

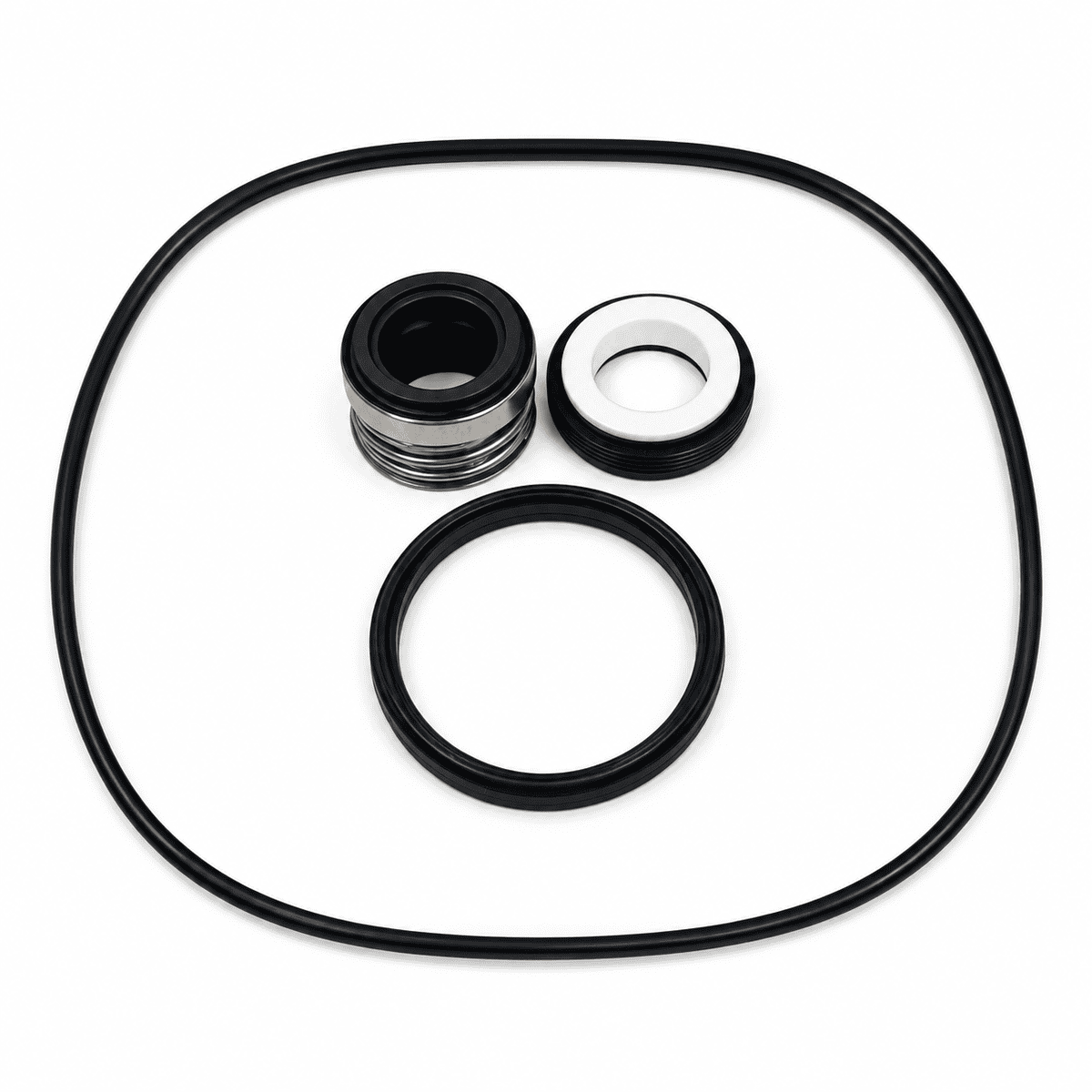

Hayward Super II seal kit — PS-201 shaft seal (SPX1600Z2), SPX3000T housing gasket and SPX1600R diffuser gasket

Hayward Super II Seal Kit — PS-201 Shaft Seal, Housing & Diffuser Gaskets (SPX1600Z2 / SPX3000T / SPX1600R)

SKU: N/A

QTY Price
Have a Question?
  • DESCRIPTION

    The Hayward Super II seal kit has the three wear parts a Super II rebuild takes: the PS-201 shaft seal (replaces Hayward SPX1600Z2), the SPX3000T housing gasket and the SPX1600R diffuser gasket. It fits Hayward Super II SP3000X and SP3000 series pumps. Built to OEM-equivalent standards or higher.

    What’s in the box

    • PS-201 shaft seal, 3/4 in. — replaces Hayward SPX1600Z2, in your choice of seal material

    • SPX3000T housing gasket — also sold as Aladdin G-345

    • SPX1600R diffuser gasket — also sold as Aladdin O-141

    The strainer lid O-ring (SPX3000S) is not included.

    Kit GuideHayward Super II Seal KitSPX1600Z2  /  SPX3000T  /  SPX1600R5 kits available. The gaskets are the same in every kit — only the PS-201 shaft seal changes. Pick the seal that suits your water, choose it from the drop-down menu above, then check your pump model below.

    1Choose your seal — best for this water
    Standard – Carbon/Ceramic/Nitrile (201c)Molded carbon face, ceramic seat, Nitrile rubberPS-201  view seal Normal chlorine, normal temperature, clear water. The standard build for a home pool or spa.
    Upgrade – Carbon/Ceramic/Viton (201cv)Molded carbon face, ceramic seat, Viton rubberPS-201V-CMS  view seal Saltwater or higher chlorine, and warmer water. Viton holds up where standard Nitrile hardens and cracks.
    Premium – Machined Carbon/Ceramic/Nitrile (851)Premium carbon face machined from solid stock, ceramic seat, Nitrile rubberPS-851  view seal Saltwater pools with a chlorine generator, commercial pools, or any pump that runs most of the day.
    Premium – Machined Carbon/Ceramic/Viton (3868)Premium carbon face machined from solid stock, ceramic seat, Viton rubberPS-3868  view seal High chlorine and hot water — heated spas, therapy pools, heavy commercial duty.
    Heavy Duty – Silicon Carbide/Viton (201cvss) Top gradeSilicon carbide face and seat, Viton rubberPS-201V-SC-SC  view seal Sandy, dusty or gritty water, or any pump where seals keep failing early. The hardest faces we offer.
    2Check your pump — Hayward model numbers
    Super II SP3000X SP3005X7, SP3007X10, SP3010X15, SP3015X20, SP3020X25, SP3025X30 — including AZ, 2-speed (2) and W3 versions
    Super II SP3000 (older) SP3007EEAZ, SP3007EECA, SP3010EEAZ, SP3015EEAZ, SP3020EEAZ, SP3025EEAZ, SP3030EEAZ
    Same pump, other names Leslie’s RS pump · Heldor E-Z Flo
    Super Pump (SP1600 / SP2600) Takes a different housing gasket — see the Hayward Super Pump seal kit.
    3OEM part numbers this kit replaces
    Shaft seal Hayward SPX1600Z2, SPX1600Z2G, SPX1600Z2VIT (Viton) · PS-201
    Housing gasket Hayward SPX3000T · Aladdin G-345
    Diffuser gasket Hayward SPX1600R · Aladdin O-141

    Not sure which kit? Call or text a photo of your pump nameplate to 561-414-1046 — no purchase required.Engineered to fit. Built to last.

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
