201cvss Mechanical Seal (PS-201V-SC-SC) — 3/4″ | Hayward Super Pump & Pentair IntelliFloXF Pool Pumps

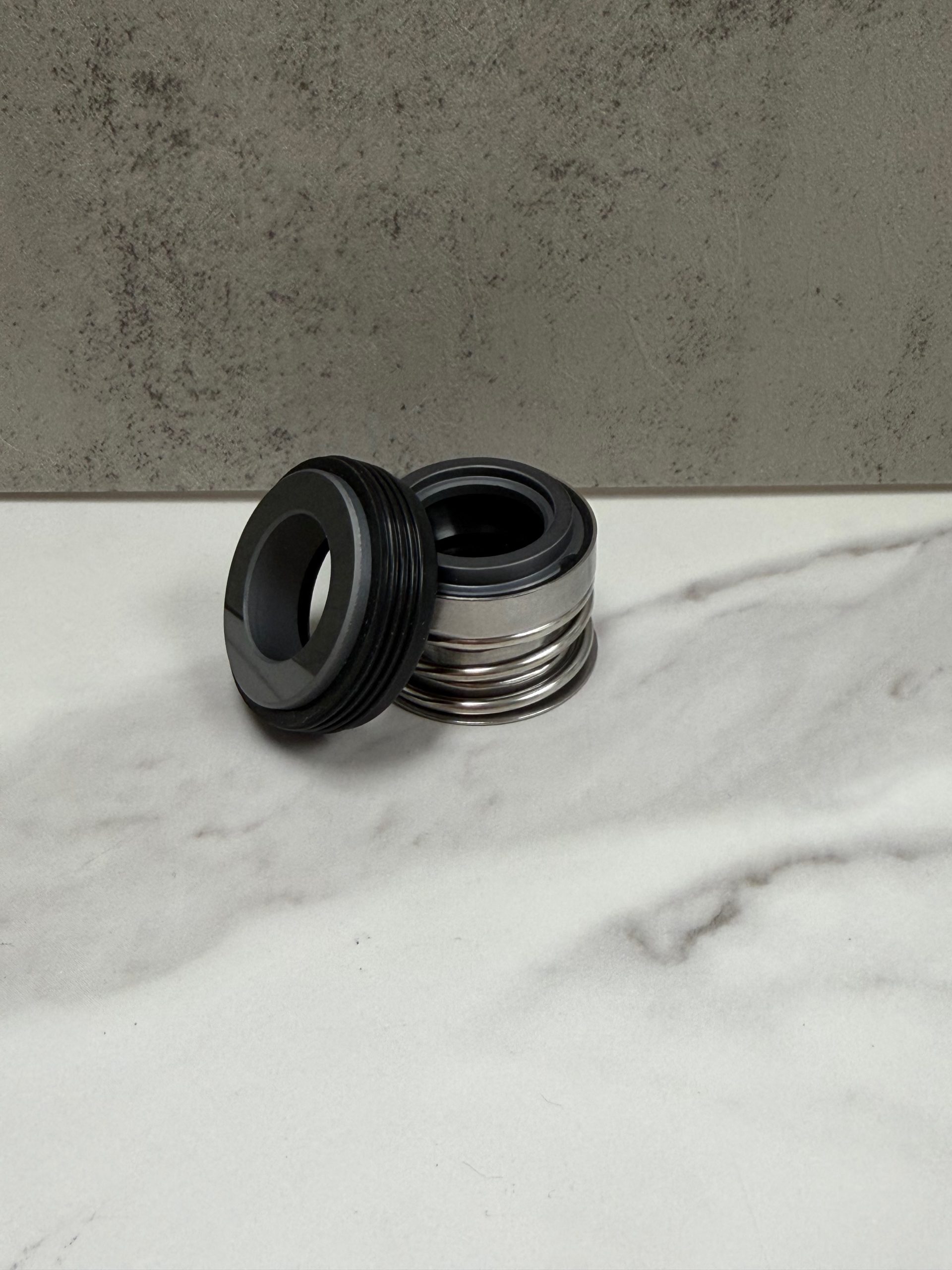

ps-100 ps-200 ps-201 pump seal sic/sic/vit

201cvss Mechanical Seal (PS-201V-SC-SC) — 3/4″ | Hayward Super Pump & Pentair IntelliFloXF Pool Pumps

Weight .25 lbs
Dimensions 1.5 × 1.5 × 1.25 in
QTY Price

$20.00
Have a Question?
  • DESCRIPTION

    Mechanical Seal 201CVSS — Type 166 / T-16 (3/4″) | PS-201V-SC-SC

    Equal to industry standard 201CVSS / PS-201V-SC-SC.
    Direct-fit Type 166 / T-16 single-spring seal for pool/spa and small-pump applications—engineered with hard faces and chemical-resistant elastomers for longer service life.

    At-a-glance spec: 3/4″ shaft • 1.375″ × 0.406″ cup seat • Silicon Carbide / Silicon Carbide faces • Viton/FKM elastomers

    Fits: Hayward Super Pump®, Super Pump II, Super Pump VS and the original Max-Flo (SPX1600Z2), Pentair IntelliFloXF® and SuperFlo® VST (17351-0101S), Sta-Rite Dura-Glas® II, Max-E-Glas™ II, Max-E-Pro® and Dyna-Pro®, plus Pac-Fab, American Products, Purex, Swimquip and Jacuzzi pool and spa pumps. The standard Pentair IntelliFlo takes the PS-1000; Pentair SuperFlo / SuperFlo VS and Hayward Max-Flo II take the PS-200.

    Same seal, same size, same fit — what changes is the material and how it’s built. All five seals below are the PS-201 for a 3/4″ shaft, and all five fit the same pumps. They differ in two ways. The build: a molded carbon face or a premium carbon face machined from solid stock. The materials: a ceramic or silicon carbide seat, and Nitrile or Viton rubber. Pick the one that suits your water.

    Seal Material Best For This Water
    201c Molded carbon face, ceramic seat, Nitrile rubber Normal chlorine, normal temperature, clear water. The standard build for a home pool or spa.
    201cv Molded carbon face, ceramic seat, Viton rubber Saltwater or higher chlorine, and warmer water. Viton holds up where standard Nitrile hardens and cracks.
    851 Machined premium carbon face, ceramic seat, Nitrile rubber Saltwater pools with a chlorine generator, commercial pools, or any pump that runs most of the day.
    3868 Machined premium carbon face, ceramic seat, Viton rubber High chlorine and hot water — heated spas, therapy pools, heavy commercial duty.
    201cvss Silicon carbide face and seat, Viton rubber Sandy, dusty or gritty water, or any pump where seals keep failing early. The hardest faces we offer.

    Rebuilding a Hayward Super Pump or Super II?Get this 201cvss seal in a complete kit with both gaskets — choose Heavy Duty – Silicon Carbide/Viton (201cvss) from the kit drop-down.

    Doing the job yourself? Read How to Replace a Mechanical Pump Seal.

    Please click “specifications” below for OEM numbers and Pump Nameplate Data
  • SPECIFICATIONS
    Cross references & alternative part numbers

    OEM numbers: None available

    Brands: None available

    Nameplate Data: None available

    Also known as / searched as

    • 201CVSS mechanical seal

    • PS-201V-SC-SC pump seal

    • PS-201V-SC-SC mechanical seal

    • PS-201VSC pump seal

    • PS201VSC / PS 201 VSC

    • 201 VSC pump seal

    • Type 166 mechanical seal 3/4

    • T-16 mechanical seal 3/4

    • pool pump mechanical seal 3/4 silicon carbide

    • spa pump seal 3/4 SiC/SiC

    • Replacement style commonly used for Type 16, G, A, 6, AV, 2100 (verify size/fitment)

  • PHYSICAL PROPERTIES

    Seal House Type 166
    Our Type 166 configuration combines the best design elements we’ve refined over the years to deliver superior reliability and performance.

    Key advantages include:

    • Crimped rotary face with positive drive — securely held in place to prevent dislodgement during installation.

    • Full metal retainer with positive drive — ensures strength and long-term durability.

    • Full rubber bellows construction — provides complete sealing along both the shaft and face, rather than relying on a small O-ring or partial gasket.

    • Molded/machined carbon face (never plastic) with upgrade options — delivers extended service life.

    Compatibility & upgrade:

    The Type 166 is designed to replace most small seal types commonly used in pool and spa applications, including Type 16, G, A, 6, AV, 2100, and more. Even in its basic form, this seal is a significant upgrade over standard “pool” seals typically available on the market.

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
