Berkeley S19310 Shaft Sleeve

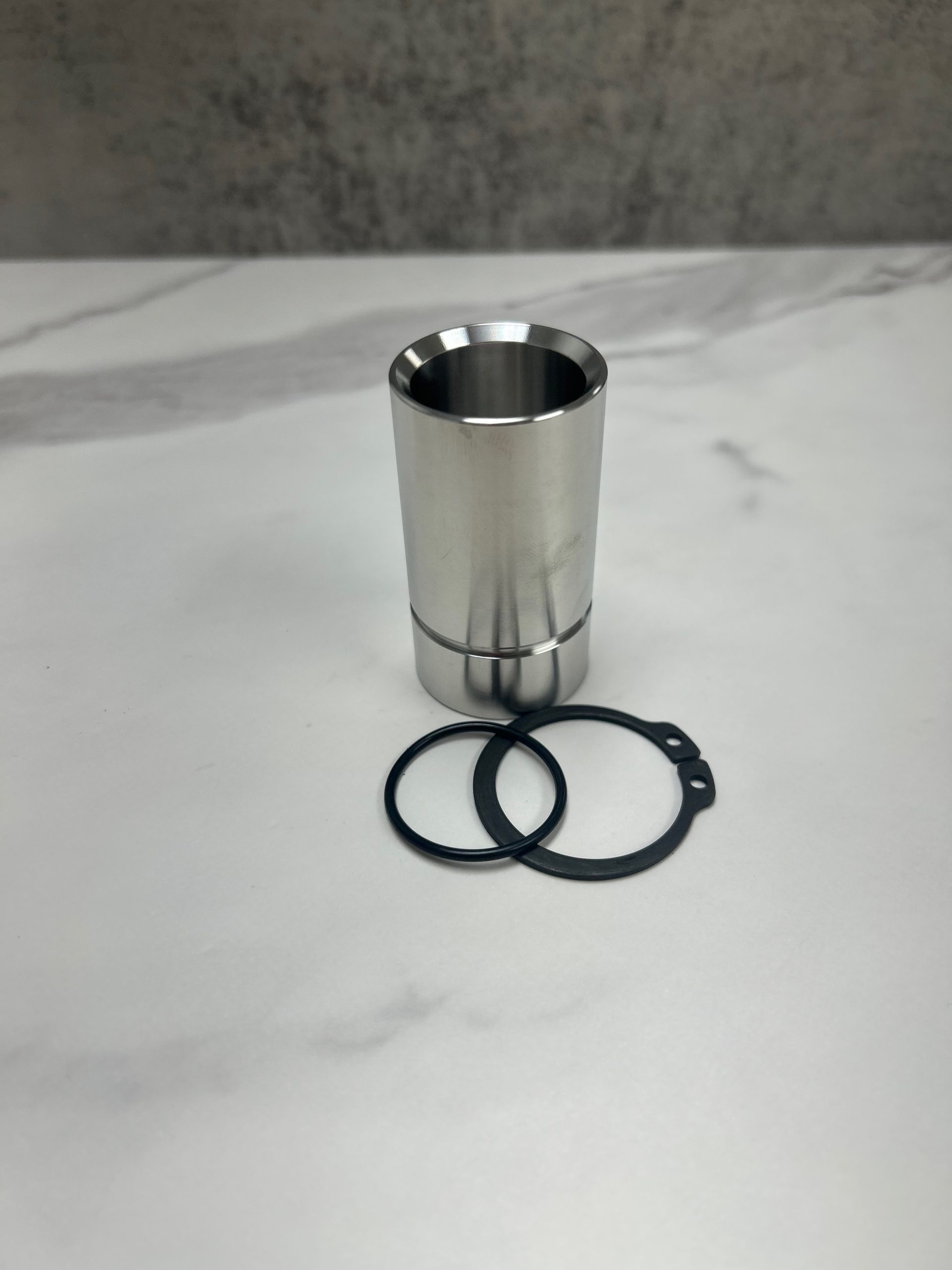

19310 stainless shaft sleeve, O-ring, and S11207 snap ring

Berkeley S19310 Shaft Sleeve

SKU: SH-S19310

Dimensions 1 × 1 × 3 in
Material

Stainless Steel
QTY Price

$34.95
Have a Question?
  • DESCRIPTION

    Berkeley S19310 Shaft Sleeve — Slip-Fit (19310)

    The Berkeley S19310 shaft sleeve is a stainless steel slip-fit sleeve for 1-1/4″ Berkeley Type B pumps, equivalent to Berkeley part numbers S19310 and S19310L. It carries the wear at the seal face so the pump shaft doesn’t — a $30 sleeve replaces what would otherwise be a shaft replacement or a scrapped rotating assembly.

    A chamfered lead-in eases installation without rolling the seal elastomer, and a machined groove in the outer diameter seats the S11207 external retaining ring for positive axial location.

    At a glance

    • 19310 stainless shaft sleeve, O-ring, and S11207 snap ring

    • Dimensions: 1.00″ ID × 1.25″ OD × 2.25″ length

    • Material: stainless steel

    • Fit: slip-fit, chamfered lead-in

    • Retained by: S11207 external retaining ring (included)

    • Mates with: 185-type mechanical seal (Berkeley S32014), S05126 and S04757 volute gaskets

    What’s included

    • 19310 stainless shaft sleeve, O-ring, and S11207 snap ring

    Fits Berkeley Type B

    Used across Berkeley Type B single-stage centrifugal pumps built on the 1-1/4″ seal size, including ZPLS, ZPHS, ZPMS, TPLS, TPMS, and WPS series models. Check your nameplate for seal size before ordering.

    Cross-Reference: Berkeley S19310

    • Berkeley: S19310 / S19310L / 19310 / S-19310

    • Service group: S32014 seal, S19310L sleeve, S11207 retaining ring, S05126 gasket

    A worn sleeve is the most common reason a new mechanical seal fails early. If the old sleeve has a visible track where the seal faces rode, replace it — new faces running on a grooved sleeve will weep within hours.

    Ordering tip: Verify ID, OD, and length against your pump’s parts list or nameplate before ordering. Contact us with your Berkeley model number and we’ll confirm the fit.

    The sleeve is one of three parts in this joint.

    Berkeley’s Type B service group is the seal, the sleeve, the retaining ring, and the volute gasket. The ring ships with this sleeve — here are the other two.

    •  PS-185 Mechanical Seal — replaces Berkeley S32014. 1-1/4″ shaft, 1.875″ × 0.437″ seat, Type N-11 (Type C/21). Nitrile, Viton, and SiC/SiC options.
    •  Berkeley S04757 Volute Gasket — the case gasket that comes off with the wet end. Single-use; a compressed fiber gasket won’t re-seal.

    Installing the seal? A drop of P-80 rubber lubricant lets the elastomer slide over the chamfer instead of rolling or nicking.

    Want it in one box? Get the seal, sleeve, and gasket together in the Berkeley Type B Pump Repair Kit — or call/text 561-414-1046 with your model and we’ll quote the full set.

    Explore our full line up of Parts & Accessories

    Looking for more? Shop Pump Repair kits, Gaskets, OEM seals, & Shaft Seals

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
