Berkeley S04757 Volute Gasket

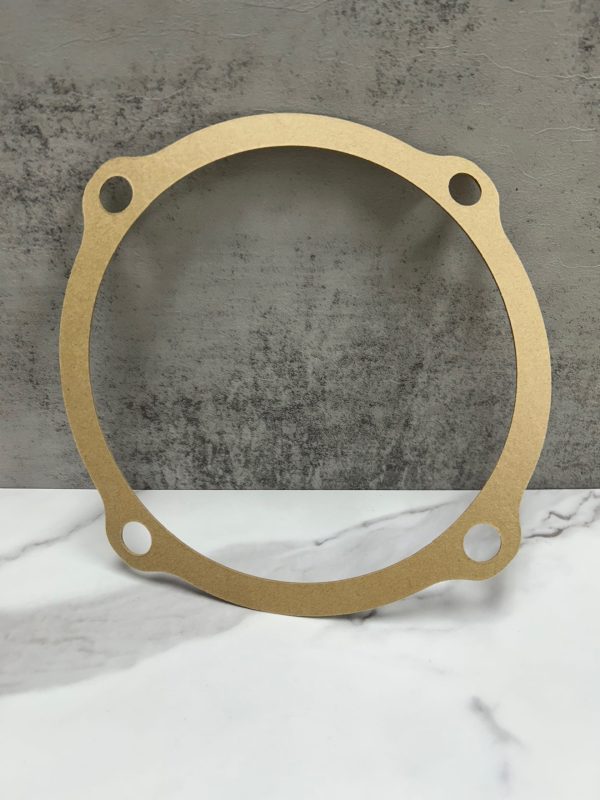

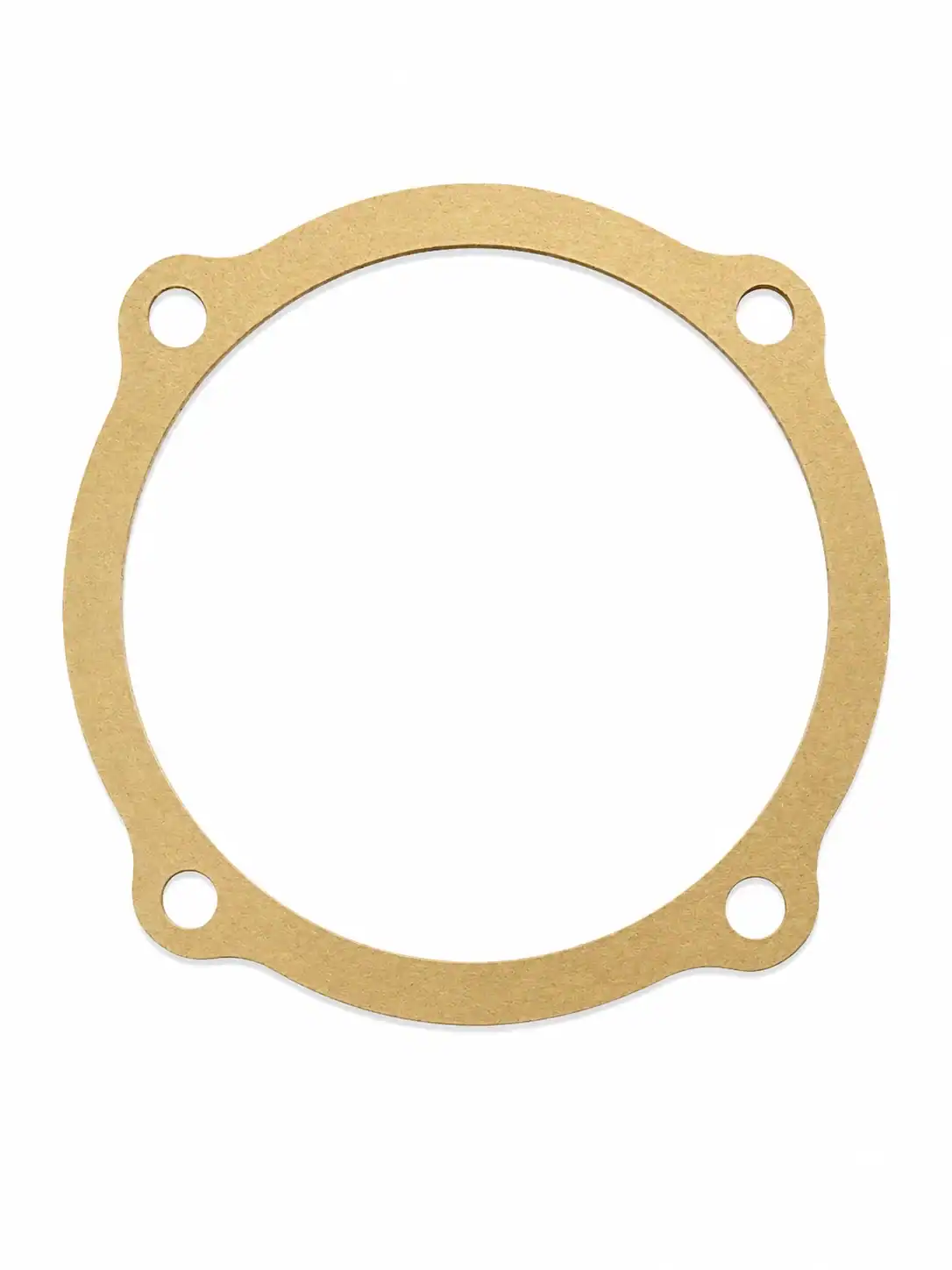

Berkeley S04757 volute gasket pre-cut vellumoid replacement

Berkeley S04757 Volute Gasket

SKU: SMSG 74

Weight .1 lbs
Dimensions 9 × 9 × 1 in
Quantity Price Per Unit
1 - 2 $10.00
3 - 5 $7.00
6 - 9 $6.50
10 + $5.50
QTY Price

$10.00
Have a Question?
  • DESCRIPTION

    Berkeley S04757 Volute Gasket — Pre-Cut (S-04757)

    The Berkeley S04757 gasket is a pre-cut volute gasket for Berkeley centrifugal pump service, equivalent to Berkeley part number S-04757. Cut from vellumoid fiber to seat cleanly against the volute face and compress evenly, it holds a positive seal through routine rebuilds without cold-flowing or tearing on removal.

    Specs

    • Material: 3/64″ vellumoid (vegetable fiber), brown

    • Dimensions: ID 6.625″ (6-5/8″) × OD 7.625″ (7-5/8″)

    Cross-Reference: Berkeley S04757

    Volute gaskets are a wear item — any time a Berkeley pump comes apart for an impeller, wear plate, or mechanical seal replacement, the volute gasket should be replaced rather than reused. A compressed fiber gasket that has already taken a set will not re-seal reliably, and a weeping volute joint on an irrigation or transfer pump is a slow leak that gets blamed on the shaft seal.

    Rebuilding the whole wet end? Pair this gasket with the matching mechanical seal — call or text us with your Berkeley model number and we’ll match the full kit.

    One teardown. Two wear parts.

    The Berkeley S04757 volute gasket is the case gasket in the 1-1/4″ Type B rebuild. Any time you’re in far enough to pull this gasket, the mechanical seal is already exposed — and a seal that has run against a worn sleeve will not re-seat. Doing the gasket alone means coming back for a second teardown.

    Complete the rebuild:

    •  PS-185 Mechanical Seal — 1-1/4″ shaft, 1.875″ × 0.437″ seat, Type N-11 (Type C/21). Nitrile, Viton, and SiC/SiC options.
    •  Berkeley Stainless Shaft Sleeve — the third wear item in this joint. Replace it with the seal, or the new faces wear early.

    Doing the full 1-1/4″ Type B job? Get the seal, sleeve, and this gasket together in the Berkeley TP Series Pump Repair Kit — matched to the same service and shipped in one box.

    Running a 1-3/4″ seal size? Larger Type B models take a bigger seal in the same volute joint. Check your motor frame to confirm. The PS-446 is our 1-3/4″ single spring seal  — and covers Berkeley B3TPMS among others. Check your nameplate before ordering.

    Not sure which seal size your pump takes? Call or text 561-414-1046 with your Berkeley model number and we’ll match the full set.

    Explore our full lineup of Pre-cut Gaskets.

    Looking for more? Check out our Shaft Seals, Pump Repair Kits , & Parts/Accessories

    Have questions? Call us anytime-we’re here to help

  • SPECIFICATIONS

    Cross Reference / Alternative Part Numbers
    Berkeley S04757, S-04757, S0-4757, Berkeley 4757 volute gasket. Also appears misspelled as SO-4757 or SO4757 with the letter O in place of the zero.

    Common Search Terms
    Berkeley volute gasket, Berkeley pump housing gasket, Berkley S04757 gasket, Berkeley Type B gasket, irrigation pump volute gasket, centrifugal pump case gasket.

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
