Bronze Shaft Sleeve — 1 in. ID x 1-1/4 in. OD (Paco 05008976B / Berkeley S19310L Size)

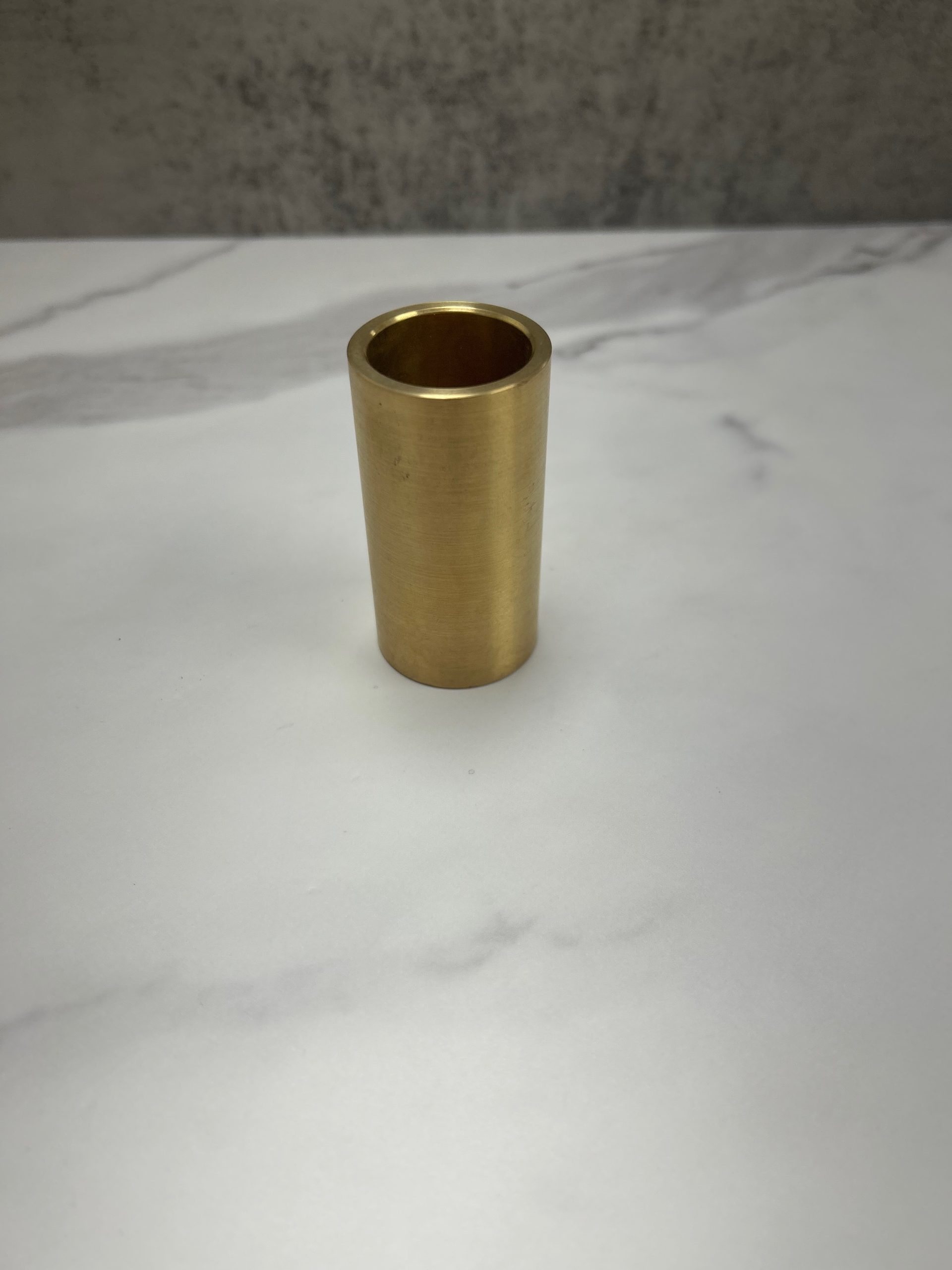

This bronze shaft sleeve fits centrifugal pumps with a 1 in. shaft and takes a 1-1/4 in. mechanical seal or packing. Choose your length from the dropdown: 2-1/4 in., 3-1/2 in. or 4 in. It is precision machined from bronze, so it resists corrosion in water service. It is a plain straight sleeve with no shoulders, keyways or threads.

Why replace the shaft sleeve

The seal or packing runs on the sleeve, not the shaft. Once the sleeve is scored or pitted, even a new seal can leak, and worn packing keeps cutting deeper. A new sleeve at every seal change protects the shaft and gives the seal a true surface to run on.

At a glance

• Material: Bronze

• Inside diameter: 1 in. (fits a 1 in. shaft)

• Outside diameter: 1-1/4 in. (takes a 1-1/4 in. mechanical seal or packing)

• Lengths: 2-1/4 in., 3-1/2 in., 4 in.

• Style: Plain straight sleeve, no shoulders, keyways or threads

Cross references

• 3-1/2 in. length: same size as Paco 05008976B / Grundfos 91843687 (bronze, 1.000 x 1.25 x 3.50 in.)

• 2-1/4 in. length: same size as Berkeley S19310L (Berkeley’s original is stainless steel; this is the bronze alternative). Berkeley Type B pumps on the 1-1/4 in. seal: ZPLS, ZPHS, ZPMS, TPLS, TPMS, WPS

How to check the fit

Measure the old sleeve: inside diameter, outside diameter and overall length. Match all three to the dropdown. Looking for a brand-specific sleeve? See our Paco shaft sleeve (1.00 in. x 1.25 in. x 2.38 in.) and Sta-Rite C23-58 stainless shaft sleeve. Not sure? Text a photo of the old sleeve to 561-414-1046 and we’ll match it, no purchase required.
