Sta-Rite C23-58 (2358) Shaft Sleeve — Stainless Steel, 1 in. ID x 1-1/4 in. OD, with O-Ring

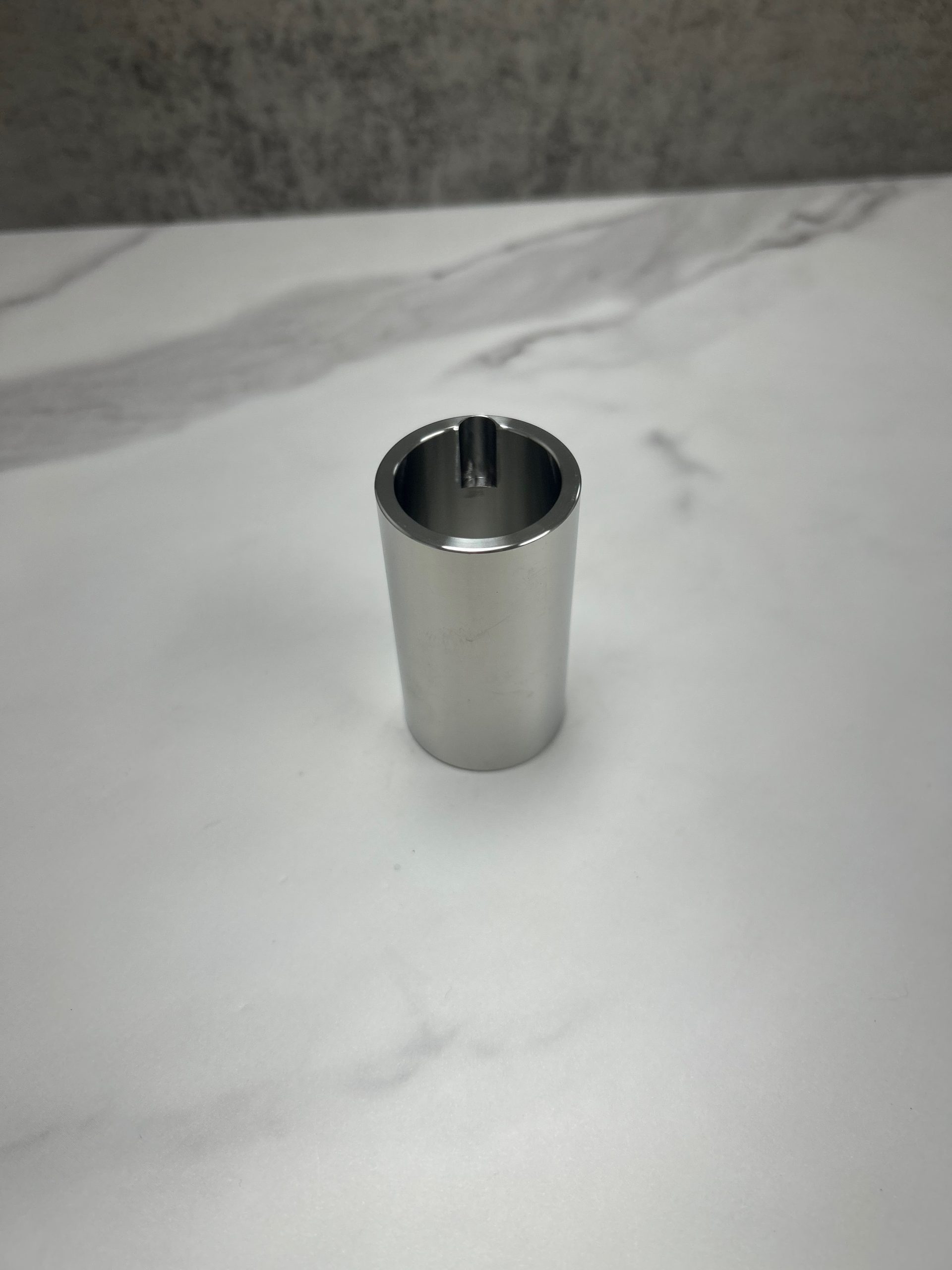

The Sta-Rite C23-58 shaft sleeve (2358) is a precision-machined stainless steel slip-fit sleeve for Sta-Rite pumps on the 1-1/4 in. seal, built on 184JM and 215JM motor frames. It slides over the motor shaft so the mechanical seal runs on the sleeve instead of the shaft. A chamfered lead-in makes it easy to start, a keyway in the bore at the other end drives it with the shaft, and the O-ring that seals it to the shaft is included. It measures 1.000 in. ID x 1.250 in. OD x 2.285 in. long. Built to OEM-equivalent standards or higher.

Why replace the sleeve with the seal

The seal runs directly on the sleeve. Once the sleeve is scored or pitted, even a new seal can leak. A fresh C23-58 at every seal change protects the shaft and gives the new seal a true surface to run on.

At a glance

• Part number: Sta-Rite C23-58 (2358)

• Material: Stainless steel

• Inside diameter: 1.000 in. (fits a 1 in. shaft)

• Outside diameter: 1.250 in. (takes a 1-1/4 in. mechanical seal)

• Length: 2.285 in.

• Chamfered lead-in; keyway in the bore at the non-chamfered end

• Includes: O-ring

Fits

• Sta-Rite pumps on 184JM and 215JM motor frames with the 1-1/4 in. seal

• Seals that run on it: Sta-Rite S32014 (our 185c, US Seal PS-185, used on Sta-Rite CC / C and D Series) and Sta-Rite S32013 (US Seal PS-2122)

How to check the fit

Measure the old sleeve: 1.000 in. inside, 1.250 in. outside and 2.285 in. long with a keyway in the bore means this is the C23-58. Not sure? Text a photo of the old sleeve or your pump nameplate to 561-414-1046 and we’ll match it, no purchase required.
