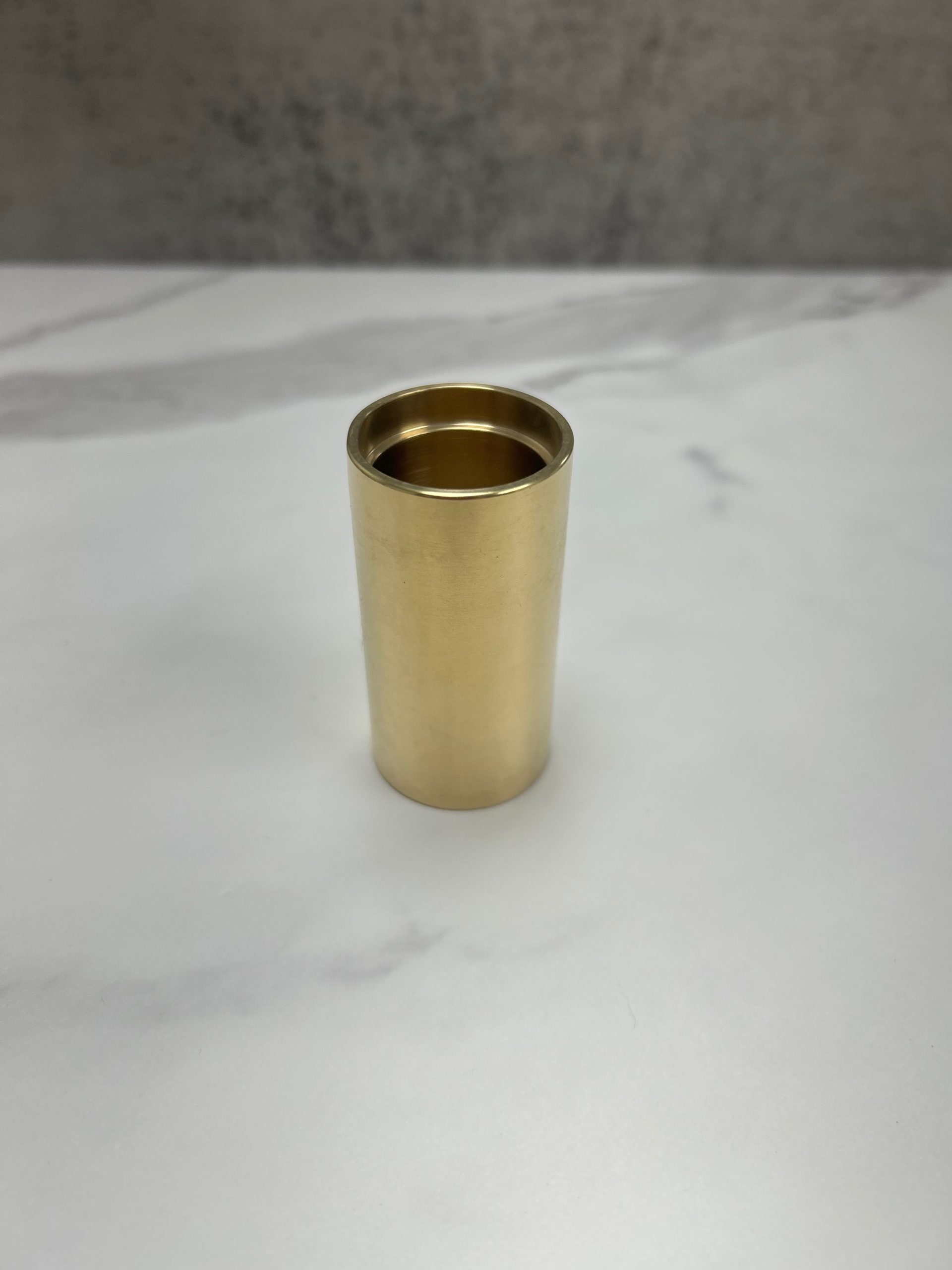

Griswold Shaft Sleeve 8287211 — Bronze, 1.00 in. ID x 1.24 in. OD, with O-Ring

Griswold shaft sleeve 8287211, bronze, 1.00 in. ID x 1.24 in. OD x 2.40 in., with 022 O-ring

Griswold Shaft Sleeve 8287211 — Bronze, 1.00 in. ID x 1.24 in. OD, with O-Ring

Weight .25 lbs
Dimensions 1 × 1.24 × 2.40 in
Material

Bronze
QTY Price

$48.00
Have a Question?
  • DESCRIPTION

    The Griswold shaft sleeve 8287211 is a precision-machined bronze sleeve for Griswold centrifugal pumps on the 1-1/4 in. seal. It slides over the pump shaft so the mechanical seal runs on the sleeve instead of the shaft, and it comes with the 022 O-ring that seals the sleeve to the shaft. It measures 1.00 in. ID x 1.24 in. OD x 2.40 in. long. Built to OEM-equivalent standards or higher.

    Why replace the sleeve with the seal

    The seal runs directly on the sleeve. Once the sleeve is scored or pitted, even a new seal can leak. Bronze resists corrosion, so a fresh sleeve at every seal change protects the shaft and gives the new seal a true surface to run on.

    At a glance

    • Part number: 8287211

    • Material: Bronze

    • Inside diameter: 1.00 in. (fits a 1 in. shaft)

    • Outside diameter: 1.24 in. (takes a 1-1/4 in. mechanical seal)

    • Length: 2.40 in.

    • Includes: 022 O-ring

    Seal it takes

    • Griswold GRI-10036903 — 1-1/4 in. Type 21 seal, carbon/ceramic/Nitrile (US Seal PS-2122)

    • Griswold GRI-10036903CNV (Viton) and GRI-10036903SSV (silicon carbide/Viton) builds of the same seal

    How to check the fit

    Measure the old sleeve: 1.00 in. inside, 1.24 in. outside and 2.40 in. long means this is the sleeve. Not sure? Text a photo of the old sleeve or your Griswold pump nameplate to 561-414-1046 and we’ll match it, no purchase required.

    Replacing the seal too?This sleeve takes the 1-1/4 in. Griswold seal GRI-10036903. Change the seal and sleeve together so the new seal runs on a true surface.

    Doing the job yourself? Read How to Replace a Mechanical Pump Seal.

    Explore our full line up of Parts & Accessories

    Looking for more? Shop Pump Repair kits, Gaskets, OEM seals, & Shaft Seals

    Have questions? Call us anytime- we can help fit the right part to your application

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
