200c Mechanical Seal (PS-200) — 5/8″ | Hayward Max-Flo II & Pentair SuperFlo Pool Pumps

ps-100 , ps-200 , ps-201 mechanical seal

200c Mechanical Seal (PS-200) — 5/8″ | Hayward Max-Flo II & Pentair SuperFlo Pool Pumps

Weight	.25 lbs
Dimensions	1.5 × 1.5 × 1.25 in

Title	Quantity	Price Per Unit
Pool Pumps 200c	1 - 24	0% $3.60
Pool Pumps 200c	25 - 49	6% $3.38
Pool Pumps 200c	50 - 99	12% $3.17
Pool Pumps 200c	100 - 499	18% $2.95
Pool Pumps 200c	500 +	24% $2.74

QTY	Price
200c Mechanical Seal (PS-200) — 5/8" \| Hayward Max-Flo II & Pentair SuperFlo Pool Pumps quantity	$3.60

Have a Question?

DESCRIPTION

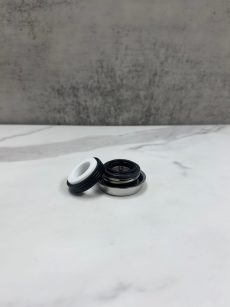

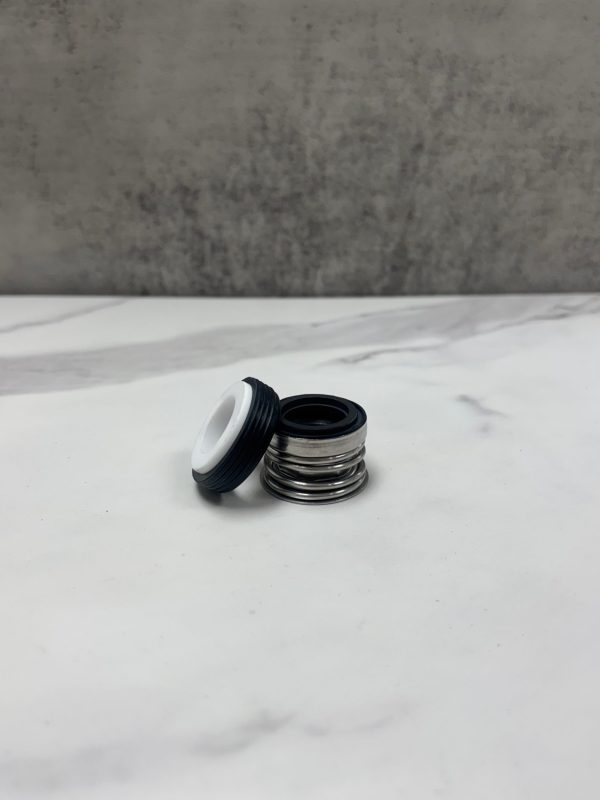

Mechanical Seal 200 — Type 166 (5/8″) | PS-200

Equal to industry standard 200 / PS-200.
Direct-fit Type 166 single-spring seal for pool/spa and small-pump applications—built with molded carbon / ceramic faces and Buna-N elastomers for dependable everyday service.

At-a-glance specs: 5/8″ shaft • 1.25″ × 0.406″ cup seat • Carbon/Ceramic faces • Buna-N elastomers

Fits: Hayward Max-Flo II® and Max-Flo VS (SPX1250XZ2), Pentair / Pac-Fab Challenger®, Dynamo®, Dynatron® and Pinnacle®, Sta-Rite Dura-Glas® and Max-E-Glas® Series PE, PEA, P2R and P2RA, plus Speck, Waterway, Jacuzzi, Astral Pool and Doughboy pool and spa pumps. The original Hayward Max-Flo (SP2800X) and Dura-Glas II / Max-E-Glas II take the PS-201; pre-1998 Dura-Glas takes the PS-100.

Same seal, same size, same fit — what changes is the material and how it’s built. All five seals below are the PS-200 for a 5/8″ shaft, and all five fit the same pumps. They differ in two ways. The build: a molded carbon face or a premium carbon face machined from solid stock. The materials: a ceramic or silicon carbide seat, and Nitrile or Viton rubber. Pick the one that suits your water.

Seal	Material	Best For This Water
200c	Molded carbon face, ceramic seat, Nitrile rubber	Normal chlorine, normal temperature, clear water. The standard build for a home pool or spa.
200cv	Molded carbon face, ceramic seat, Viton rubber	Saltwater or higher chlorine, and warmer water. Viton holds up where standard Nitrile hardens and cracks.
516	Machined premium carbon face, ceramic seat, Nitrile rubber	Saltwater pools with a chlorine generator, commercial pools, or any pump that runs most of the day.
3867	Machined premium carbon face, ceramic seat, Viton rubber	High chlorine and hot water — heated spas, therapy pools, heavy commercial duty.
200cvss	Silicon carbide face and seat, Viton rubber	Sandy, dusty or gritty water, or any pump where seals keep failing early. The hardest faces we offer.

Have questions? Check out our Pool/Spa Small Pump Guide or call us anytime—we’re here to help.

Explore our full lineup of Single Spring Seals—PS replacements, pool/spa seals, and our SPS line.

Looking for more? Shop Pump Repair Kits, Parts & Accessories, and Pre-Cut Gaskets.

Please click “specifications” below for OEM numbers and Pump Nameplate Data

SPECIFICATIONS
OEM numbers: SJ-45, A-8 , Series 1800 , 35B1175 , 35B1178 , 180013 , S20790 , 17038 , 1S-5005A , 1S-5054 , 2661 , W105-7 , 106467 , 2658090 , 0000015 , 907-06030 , 180013 , 306-1006 , 2544 , 8247075 , 1000206 , 106196105 , 92500150 , 92500151 , S756 , S1531 , 12874-010 , SPX1250XZ2C , 62729 , 00083000 , 00083001 , 14525A010 , CPM-6252C1 , CPM-6258C1 , 10-467, 10-0002-06 , 10-1436-00 , 2661 , 240160 , 10840A1 , 14525A000 , 354545 , SL-7101 , SL-7741 , K102-1 , 91909744 , 11397-12839 , 12703 , 2658090 , 96667758 , 353253S , 354545S , 21-024 , 618-001 , 101.000.340 , 10159 , 17304-0100
17304-0100S, 17038 , 96667758 , 1181377 000 , 16-062-03 , 172-009 , 172-017 , 1R312, 5P405 , 5P406 , 15559, 56104 , 04300800

Brands: AERMOTOR PUMPS (A PENTAIR Brand) , AMERICAN MACHINE AND TOOL COMPANY (AMT) , ARNESON PRODUCTS, INC. , ASTRAL POOL , BAKER-HYDRO (Division of WATERCO USA) , BELL & GOSSETT (A XYLEM Brand) , BERKELEY PUMPS (A PENTAIR Brand) , BURKS® PUMPS (Division of CRANE PUMPS & SYSTEMS) , CARTER PUMPS, INC. , CARVER PUMP COMPANY , C-B TOOL COMPANY , CH&E MFG. COMPANY , CHAMPION INDUSTRIES (Dishwashers) , CHICAGO PUMP (Division of GRUNDFOS, INC.) , CRANE-DEMING (Division of CRANE PUMPS & SYSTEMS) , CRANE PUMPS & SYSTEMS , DEMPSTER INDUSTRIES, LLC , DOMESTIC PUMP , DOUGHBOY INDUSTRIES (Division of H.I.I.) , EAST SIDE MFG. , EVERITE , FAIRBANKS NIJHUIS , FRANKLIN ELECTRIC COMPANY, INC. , GECKO ALLIANCE,INC. , HALL SCOTT , HAYWARD INDUSTRIES, INC. , HOMELITE CORPORATION , HYDROMATIC PUMP COMPANY , INGERSOLL-DRESSER PUMPS AND COMPRESSORS , JACUZZI , KENCO , LANCASTER PUMP COMPANY , METAL MASTER , MONARCH PUMPS (Division of FRANKLIN ELECTRIC COMPANY, INC.) , MOYNO, INC. (A NOV Brand) , MYERS, F.E. , PAC-FAB (PENTAIR POOL PRODUCTS, INC.) , PACO , PEABODY BARNES MFG. (Division of CRANE PUMPS & SYSTEMS) , PEERLESS PUMP COMPANY , PENTAIR POOL PRODUCTS , RICE PUMP , ROMAR ABRADO , SCOT PUMP (A WILO USA Brand) , SHERWOOD PUMP , SIMMONS PUMP CORPORATION , STA-RITE INDUSTRIES , STERLING FLUID SYSTEMS , STEVENS PUMP COMPANY , TACO , TEEL PUMP , WAYNE COMBUSTION SYSTEMS, WHITE , WORTHINGTON

Nameplate Data: Pool Sweep ; Sena ; New Style Mid-Jet S4 HS, CIMPS, CIMPHS, CIXPS ; B20-1, B1-2-1.25 ; CIXPRS, C1-1/4MPS, B-1/2APKS D1-1/2MPKS ; Fig. 4910-63, 4357, 4358 ; H, HC, HV Circ-Master®, Dominator® High Head Dominator® Medium Head, Flo-Master® Pond-Flo, Tub-Master® ; GENERAL PUMP ; GEORGIA PACIFIC PUMP ; GG INDUSTRIES ; GORMAN-RUPP COMPANY ; Cast Iron ; Cygnet K,KM, Vector LVLA, J, JCM, LCM, LCU and LR Series ; 139A New Style ; 1425A010, 16275A ; Challenger®, Dynamite, Dynamo® Dynatron®, Pinnacle® ; For Comet, Rocket Econo, 25, 31, 33, 35, 48, 49, 50, 52 102DM and 740DM Dura-Glas®, Max-E-Glas® Series PE, PEA,P2R and P2RA ; Series SJ-CJX, 1.250CS-5, 1.25OM-5

Cross references & alternative part numbers

Also known as / searched as
- PS-200 mechanical seal
- 200 mechanical seal
- 200c mechanical seal
- Type 166 mechanical seal 5/8
- Pool pump mechanical seal 5/8
- Spa pump mechanical seal 5/8
- Single spring mechanical seal Type 166
- T-166 pump seal
PHYSICAL PROPERTIES
Seal House Type 166
Our Type 166 configuration combines the best design elements we’ve refined over the years to deliver superior reliability and performance.

Key advantages include:
- Crimped rotary face with positive drive — securely held in place to prevent dislodgement during installation.
- Full metal retainer with positive drive — ensures strength and long-term durability.
- Full rubber bellows construction — provides complete sealing along both the shaft and face, rather than relying on a small O-ring or partial gasket.
- Molded carbon face (never plastic) — delivers extended service life.
Compatibility & upgrade:

The Type 166 is designed to replace most small seal types commonly used in pool and spa applications, including Type 16, G, A, 6, AV, 2100, and more. Even in its basic form, this seal is a significant upgrade over standard “pool” seals typically available on the market.

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
