Goulds 4K66 Shaft Sleeve — 3656 / 3756 S-Group

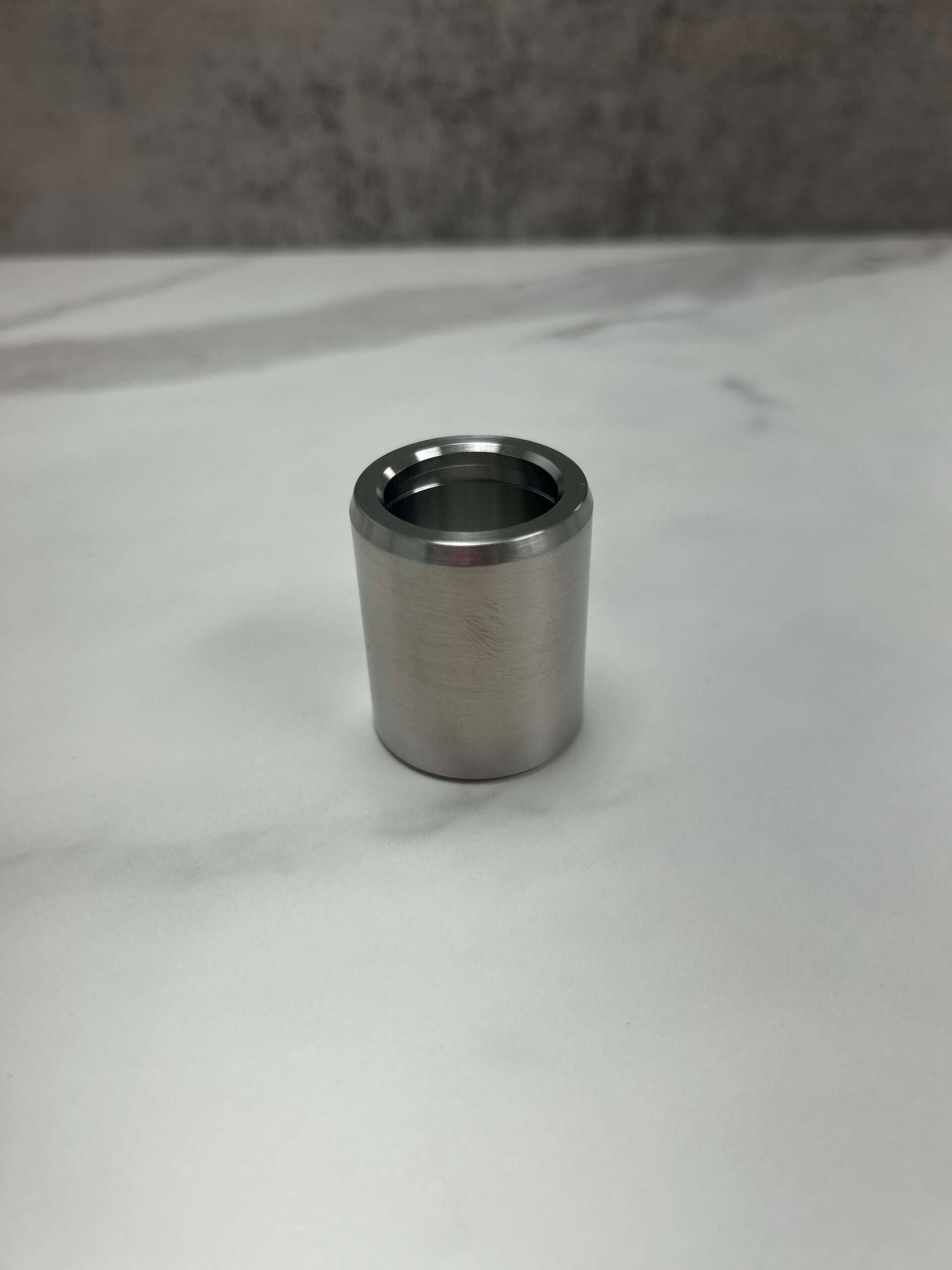

The Goulds 4K66 shaft sleeve is a precision-machined 316 stainless steel sleeve for Goulds 3656 and 3756 S-Group end suction pumps with the 1-1/4 in. seal. It slides over the pump shaft so the mechanical seal runs on the sleeve instead of the shaft, and gives the seal a corrosion-resistant, replaceable running surface. It measures 1.000 in. ID x 1.250 in. OD x 1.500 in. long. Built to OEM-equivalent standards or higher.

Why replace the sleeve with the seal

The seal runs directly on the 4K66 sleeve. Once the sleeve is scored or pitted, even a new seal can leak. Goulds puts a new 4K66 in its own 3656 S-Group seal kit for that reason, so fit a fresh sleeve every time you change the seal.

At a glance

• Part number: Goulds 4K66

• Material: 316 stainless steel

• Inside diameter: 1.000 in. (fits a 1 in. shaft)

• Outside diameter: 1.250 in. (takes a 1-1/4 in. mechanical seal)

• Length: 1.500 in.

• Style: Straight sleeve

Fits

• Goulds 3656 S-Group and 3756 S-Group end suction pumps with the 1-1/4 in. seal

• Seals that run on it: Goulds 10K13 or 9152071001 (our 185c, PS-185), Goulds 10K25 (Viton) and Goulds 10K64 (silicon carbide)

How to check the fit

Measure the old sleeve: 1.000 in. inside, 1.250 in. outside and 1.500 in. long means this is the 4K66. Not sure? Text a photo of the old sleeve or your pump nameplate to 561-414-1046 and we’ll match it, no purchase required.
