Goulds Mechanical Seals

  • 4240c mechanical seal is a direct-fit 5/ seal, the PS-4240 equivalent, cross-referenced to Goulds 10K10. ps-680c

    4240c Mechanical Seal (PS-4240)5/8″ (Goulds 10K10)

    4240c Mechanical Seal (PS-4240)5/8″ (Goulds 10K10)

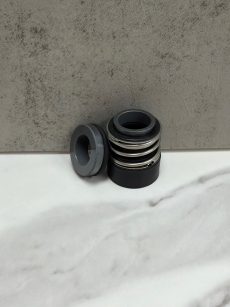

    4240c Mechanical Seal (PS-4240) — 5/8″ (Goulds 10K10)

    The 4240c mechanical seal is a direct-fit 5/8″ shaft seal, the PS-4240 equivalent, cross-referenced to Goulds 10K10. It is built to OEM-equivalent standards or higher with a Type 166 footprint and a machined carbon face for longer service life.

    Machined Carbon Face
    Our 4240c uses a precision-machined, resin-impregnated carbon face — not the molded plastic/phenolic carbon found in standard equivalents — for smoother sealing and longer life. For the standard molded carbon version, see our 680c seal.

    At a Glance

    • Goulds Reference: 10K10 (also 10K121, 10K258)

    • PS Reference: PS-4240 / 4240c

    • Shaft size: 5/8″

    • Cup Seat:1.187″ × 0.288″ / 0.296″ (verify thickness)

    • Footprint: Type 166 (replaces Type 16 / G / A / 6 / AV / 2100 styles)

    • Faces: Ceramic/Carbon: Machined carbon (not molded/phenolic) vs. ceramic, with Nitrile elastomers — for smoother sealing and longer life.

    Why This Seal

    Our Carbon/Ceramic build uses precision-machined, resin-impregnated carbon — not the plastic/phenolic used in PS-702 and similar equivalents — for smoother sealing and longer service life.

    Applications

    Built for Goulds pumps using the 5/8″ shaft and Type 166 seal arrangement. Matching from a worn seal? Confirm your shaft size and cup seat thickness first, or send a photo of the old seal and your pump nameplate to info@sealhouseusa.com, or call/text 561-414-1046. No purchase required.

    Working on a Goulds pump? We build complete rebuild kits for Goulds jet and Irri-Gator pumps — this seal together with the diaphragm and the guide vane seal ring, in one part number instead of three.

    Pick the kit that matches your pump:

    Need the parts separately? 5K231 Spacer Ring · 5K256 Diaphragm (GT) · 5K162 Diaphragm (J-series). Don’t see your model? Call or text 561-414-1046 and we’ll match it.

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions .75 × .75 × 1 in
  • Goulds 10L39 / 10K39 mechanical seal 22mm

    Goulds / Lowara SV Mechanical Seal 10L39 / 10K39 — 22mm

    Goulds / Lowara SV Mechanical Seal 10L39 / 10K39 — 22mm

    Goulds / Lowara SV Mechanical Seal 10L39 / 10K39 — 22mm

    Direct-fit 22mm mechanical seal replacement for Goulds / Lowara SV vertical multistage pumps, supplied in a hard-face build for long service in demanding duty. This listing cross-references Goulds 10L39 and 10K39 and is commonly used on SV-series pump models including 33SV, 46SV, 66SV, and 92SV (verify by nameplate/build sheet).

    At a glance

    • Shaft size: 22mm

    • Faces: Silicon Carbide / Silicon Carbide (SiC/SiC)

    • Elastomers: Viton (FKM)

    • Fits pump models: Goulds / Lowara SV 33SV, 46SV, 66SV, 92SV

    • Also seen on: G&L / SSV variants (confirm by dimensions)

    Catalog example (for matching): 33SVBF12Q6DA (verify against nameplate).

    Cross Reference / Alternate Search Numbers

    10L39 • 10 L39 • 10K39 • 10 K39 • 22mm Goulds SV mechanical seal • 22mm Lowara SV mechanical seal

    Alternate materials / configurations: If you need a different seat or materials for chemistry/speed/temperature, ask us about 10K199, 10K166, 10L37, 10L38, 10L40 equivalents

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions 2 × 2 × 1.75 in
  • Buy Goulds mechanical seal 10k168 10k69 10k95 Goulds 10K168 / 10K172 mechanical seal 12mm Goulds 10K95 mechanical seal 25mm

    Goulds Mechanical Seal 10K168 / 10K172 — 12mm

    Goulds Mechanical Seal 10K168 / 10K172 — 12mm

    Item #N/A

    Goulds Mechanical Seal — 12mm (10K168 / 10K172)

    Direct-fit 12mm mechanical seal replacement for Goulds vertical multistage pumps, built for reliable sealing in high-duty service with hard SiC/SiC faces and Viton elastomers. This seal fits Goulds 1SV, 2SV, 3SV, and 5SV pump models and is commonly searched by OEM part numbers 10K168 and 10K172.

    Interchangeable OEM references: 10K168 and 10K172 share the same design and fit. Because this listing is supplied in the SiC/SiC/Viton build, our 10K168 meets the 10K172 material specification—use either number for ordering.

    At a glance:

    • Shaft size: 12mm

    • Pump models: Goulds 1SV / 2SV / 3SV / 5SV

    • Faces: Silicon Carbide / Silicon Carbide (SiC/SiC)

    • Elastomers: Viton (FKM)

    • Cross-references: 10K168, 10K172

    Available versions (select from dropdown)

    • Standard Seal: Equivalent to 10K168 / 10K172

    • Upgrade Seal: Enhanced design for higher speeds/pressure; equivalent to Goulds/Lowara T-135, usable on 2SV and 5SV; working length matches 192S (example catalog ref: SSV 2SVB2H2P0). Refer to the product image when selecting “Upgrade” in the dropdown menu above.

    How to Confirm Your Seal Size — 12mm or 16mm
    Goulds/G&L SV-series pumps take either a 12mm or a 16mm seal depending on the series, and the catalog number alone won’t tell you — it can start with “3SV” either way. The series name at the top of the nameplate is the tiebreaker. If it reads SV, your pump takes this 12mm seal; if it reads SSV, it takes the larger 16mm seal. Use the guide below to check.

    12mm or 16mm? How to Read Your Nameplate
    SV-series pumps take either a 12mm or a 16mm seal. The catalog number can start with “3SV” on both — so the series name at the top of the nameplate is what tells you the size.
    If the series reads
    SV
    catalog no.
    e.g. 3SV…
    Takes this 12mm seal
    If the series reads
    SSV
    catalog no.
    e.g. 3SVC1J2E0
    Takes the 16mm seal
    The catch: a catalog number starting with “3SV” does not tell you the size by itself — both series use it. Always check whether the series reads SV or SSV.
    Nameplate Series Seal Size Order
    SV 12mm Goulds 10K168 / 10K172 — this seal
    SSV 16mm Goulds 10K169 / 10K173 (16mm)
    Not sure which you have? Text a photo of your nameplate to 561-414-1046 and we’ll confirm the size. No purchase required.
    Cross Reference / Alternate Search Formats

    10K168 • 10K 168 • 10k168 • 10K172 • 10K 172 • 10k172 • T-135 • 192S • SSV 2SVB2H2P0

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions 1 × 1 × 1.75 in
  • Buy Goulds mechanical seal 10k168 10k69 10k95 Goulds 10K168 / 10K172 mechanical seal 12mm Goulds 10K95 mechanical seal 25mm

    Goulds Mechanical Seal 10K169 / 10K173 — 16mm

    Goulds Mechanical Seal 10K169 / 10K173 — 16mm

    Item #N/A

    Goulds Mechanical Seal 10K169 / 10K173 — 16mm

    Direct-fit 16mm mechanical seal replacement for Goulds vertical multistage pumps, built for reliable sealing in high-duty service with Silicon Carbide / Silicon Carbide (SiC/SiC) faces and Viton (FKM) elastomers.

    Please Note: 10K169 and 10K173 share the same design and fit. Because we supply the upgraded SiC/SiC/Viton build as standard, our 10K169 meets the 10K173 material specification—the two references are interchangeable in our catalog.

    At a glance

    • Shaft size: 16mm

    • Faces: SiC/SiC

    • Elastomers: Viton (FKM)

    • OEM cross-refs: 10K169 / 10K173

    Available versions (select from dropdown)

    • Standard Seal — 16mm: Equivalent to 10K169 / 10K173

    • Upgrade Seal — 16mm: Enhanced design for higher speeds/pressure (refer to product image when selecting “Upgrade”)

      • Cross-references (for upgrade): Lowara 0160.135.R.V.T; Goulds 10K69, 10K114 (commonly used on SSV-3 / SSV-4)

    • Standard Seal with o-ring kit — for SV / e-SV / e-SVE series, frame (S) (10SV, 15SV, 22SV). OEM equivalents: 5K519 (FKM/Viton), 5K520 (EPDM).

    • Upgrade Seal with o-ring kit — SV / e-SV / e-SVE series, frame (S) (10SV, 15SV, 22SV). OEM equivalents: 5K519 (FKM/Viton), 5K520 (EPDM)

    Fits pump models (Example nameplate reference sometimes shown on SSV top plate: “3SVB1J2E0, 5 HP”)

    • Goulds: 10SV, 15SV, 22SV

    • Goulds SSV: SSV-3, SSV-4

    • Noted on equipment: Armstrong VMS-100 (Serial 555233-02)

    How to Confirm Your Seal Size — 12mm or 16mm

    Goulds/G&L SV-series pumps take either a 12mm or a 16mm seal depending on the series, and the catalog number alone won’t tell you — it can start with “3SV” either way. The series name at the top of the nameplate is the tiebreaker. If it reads SSV, your pump takes this 16mm seal; if it reads SV, it takes the smaller 12mm seal. Use the guide below to check.

    12mm or 16mm? How to Read Your Nameplate
    SV-series pumps take either a 12mm or a 16mm seal. The catalog number can start with “3SV” on both — so the series name at the top of the nameplate is what tells you the size.
    If the series reads
    SV
    catalog no.
    e.g. 3SV…
    Takes the 12mm seal
    If the series reads
    SSV
    catalog no.
    e.g. 3SVC1J2E0
    Takes this 16mm seal
    The catch: a catalog number starting with “3SV” does not tell you the size by itself — both series use it. Always check whether the series reads SV or SSV.
    Nameplate Series Seal Size Order
    SV 12mm Goulds 10K168 / 10K172 (12mm)
    SSV 16mm Goulds 10K169 / 10K173 — this seal
    Not sure which you have? Text a photo of your nameplate to 561-414-1046 and we’ll confirm the size. No purchase required.
    Cross Reference / Alternate Search Formats

    10K169 • 10K 169 • 10k169 • 10K173 • 10K 173 • 10k173 • 0160.135.R.V.T • 10K69 • 10K114

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions 1 × 1 × 1.75 in
  • Goulds Mechanical Seal 10k64

    Goulds Mechanical Seal 10k64

    Goulds Mechanical Seal 10k64

    Goulds 10k64 Mechanical Seal

    Goulds 10K64 mechanical seal (1-1/4″) for Goulds 3656/3756 S-Group end suction pumps—SiC/SiC faces with Viton (FKM) elastomers for severe-duty service.

    The 10K64 seal assembly is the OEM-specified mechanical seal option for Goulds 3656/3756 S-Group pumps, commonly used for water supply, recirculation, and cooling applications. Please note our seal is 304SS, OEM specification call for 314SS for 10k64 (refer to note below)

    *** Build note: Our 10K64 seal is manufactured with electro-polished 304 stainless steel for the spring and other metal components. Some Goulds documentation lists 316 stainless steel for these metal parts. For most standard water/HVAC services, this 304SS build performs reliably; if your application involves aggressive chemicals, or severe corrosion conditions, contact us and we can quote a 316SS option when available.

    Key specs: Shaft size: 1-1/4″ single spring seal • Seat: 1.875″ x 0.437″ cup • Rotary OD: 1.787″ • Working length: 1.062″

    Materials (10K64): Faces: Silicon Carbide vs Silicon Carbide (SiC/SiC); Elastomers: Viton (FKM)

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions 2.25 × 2.25 × 1.75 in
  • Buy Goulds mechanical seal 10k168 10k69 10k95 Goulds 10K168 / 10K172 mechanical seal 12mm Goulds 10K95 mechanical seal 25mm

    Goulds Mechanical Seal 10K95 / 10K70 — 25mm

    Goulds Mechanical Seal 10K95 / 10K70 — 25mm

    Item #N/A

    Goulds Mechanical Seal 10K95 / 10K70 — 25mm

    Direct-fit 25mm mechanical seal replacement for Goulds vertical multistage pumps, commonly used on Goulds SSV-5 and SSV-6 (verify by nameplate/build sheet). This OEM-style seal is built with Silicon Carbide / Silicon Carbide (SiC/SiC) faces and Viton (FKM) elastomers for reliable sealing and long service in demanding duty. Cross-references Goulds 10K95 and 10K70 for fast, accurate ordering.

    Available versions (select from dropdown)

    • Standard — 25mm: Equivalent to 10K95

    • Upgrade — 25mm: Enhanced design for higher speeds/pressure (see product image when selecting “Upgrade”) — commonly chosen for SSV-5 / SSV-6 higher-duty service

    At a glance

    • Shaft size: 25mm

    • Fits pump models: Goulds SSV-5 / SSV-6 (verify by nameplate)

    • Faces: SiC/SiC

    • Elastomers: Viton (FKM)

    • Cross-references: 10K95, 10K70

    Cross Reference / Alternate Search Formats

    10K95 • 10K 95 • 10k95 • 10K70 • 10K 70 • 10k70

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .5 lbs
    Dimensions 1 × 1 × 1.75 in
  • Lowara 131 14mm mechanical seal, 0140.131.R.N.B, Goulds 10L36 equivalent, single seal Gianneschi T-13 mechanical seal, ceramic/carbon faces with Buna, Gianneschi T-13 mechanical seals, ceramic/carbon faces with Buna, shaft sizes 12mm to 32mm

    Goulds Mechanical Seal 10L3614mm (Lowara 131 Equivalent)

    Goulds Mechanical Seal 10L3614mm (Lowara 131 Equivalent)

    Item #GLD-10L36-14

    Goulds 10L36 Mechanical Seal — 14mm (Lowara 131 Equivalent)

    The Goulds 10L36 mechanical seal is a direct-fit 14mm shaft seal for Goulds pumps. It is built to OEM-equivalent standards or higher and is a direct replacement for Goulds pumps using the 14mm shaft, cross-referenced to OEM 0140.131.R.N.B.

    This is the same 14mm seal we supply for the equivalent Lowara, Grundfos, and PLM pumps, listed here under its Goulds reference for easy matching.

    At a glance:

    • Shaft size: 14 mm

    • Manufacturer reference: Goulds 10L36

    • OEM reference: 0140.131.R.N.B

    • Also fits: Lowara 131, Grundfos, PLM 90 BG equivalents

    • Faces: Ceramic/Carbon

    • Elastomers: Buna (Nitrile)

    • Form: Seal assembly only (O-rings/gaskets sold separately)

    Built for Goulds pumps using the 14mm shaft seal arrangement, and the equivalent Lowara, Grundfos, and PLM models. Matching from a worn seal? Confirm your pump model and shaft size first, or send a photo of the old seal and your pump nameplate to info@sealhouseusa.com, or call/text 561-414-1046. No purchase required.

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

    Weight .25 lbs
    Dimensions 1.5 × 1.5 × 1.5 in
