Sta-Rite D-Series Pump Repair Kit — Seal, Sleeve, Diffuser Ring & Gasket

Sta-Rite D-Series Pump Repair Kit — Seal, Sleeve, Diffuser Ring & Gasket

This Sta-Rite D-series pump repair kit bundles the four parts you replace at a standard seal service into one kit — the mechanical seal, shaft sleeve, diffuser ring, and housing gasket. Built to OEM-equivalent standards or higher for a complete, correct rebuild of your Sta-Rite D-series pump. Also fits Berkeley and Pentair equivalents.

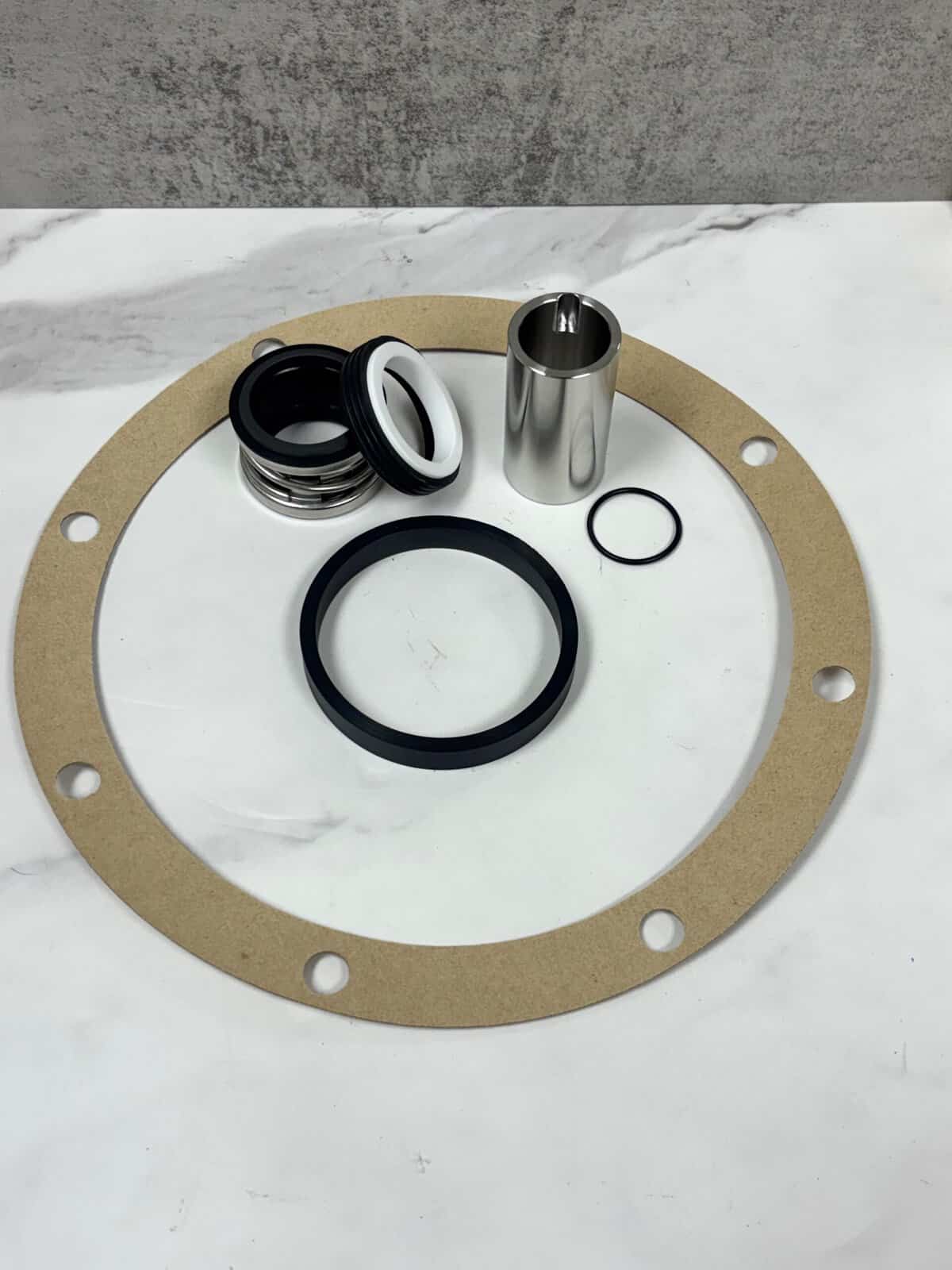

What’s Included

• Mechanical seal — PS-3883, 1-1/4″, John Crane 2100/2106 style (Sta-Rite U9-433SS / U109-220)

• Shaft sleeve — C23-58 (2358), stainless steel, 1.000″ ID × 1.250″ OD × 2.285″, with O-ring

• Diffuser ring — C21-2 (D/ED-series diffuser ring)

• Housing gasket — C20-46 (C2046), vellumoid, ID 7.937″ × OD 9.625″

Applications
Built for the Sta-Rite D-series pump seal service — everything you need to reseal the pump in one kit, instead of sourcing four parts separately. Matching from a worn pump or a parts list? Confirm your pump model and frame from the nameplate before ordering, or send a photo to info@sealhouseusa.com, or call/text 561-414-1046. No purchase required — our seal specialists will match it.

Why Buy the Kit
Ordering the seal, sleeve, diffuser ring, and gasket together as a kit means every part matches the same pump service, arrives together, and saves you sourcing them one at a time. Prefer to buy a single part? Each is available separately — see the individual product links below.
