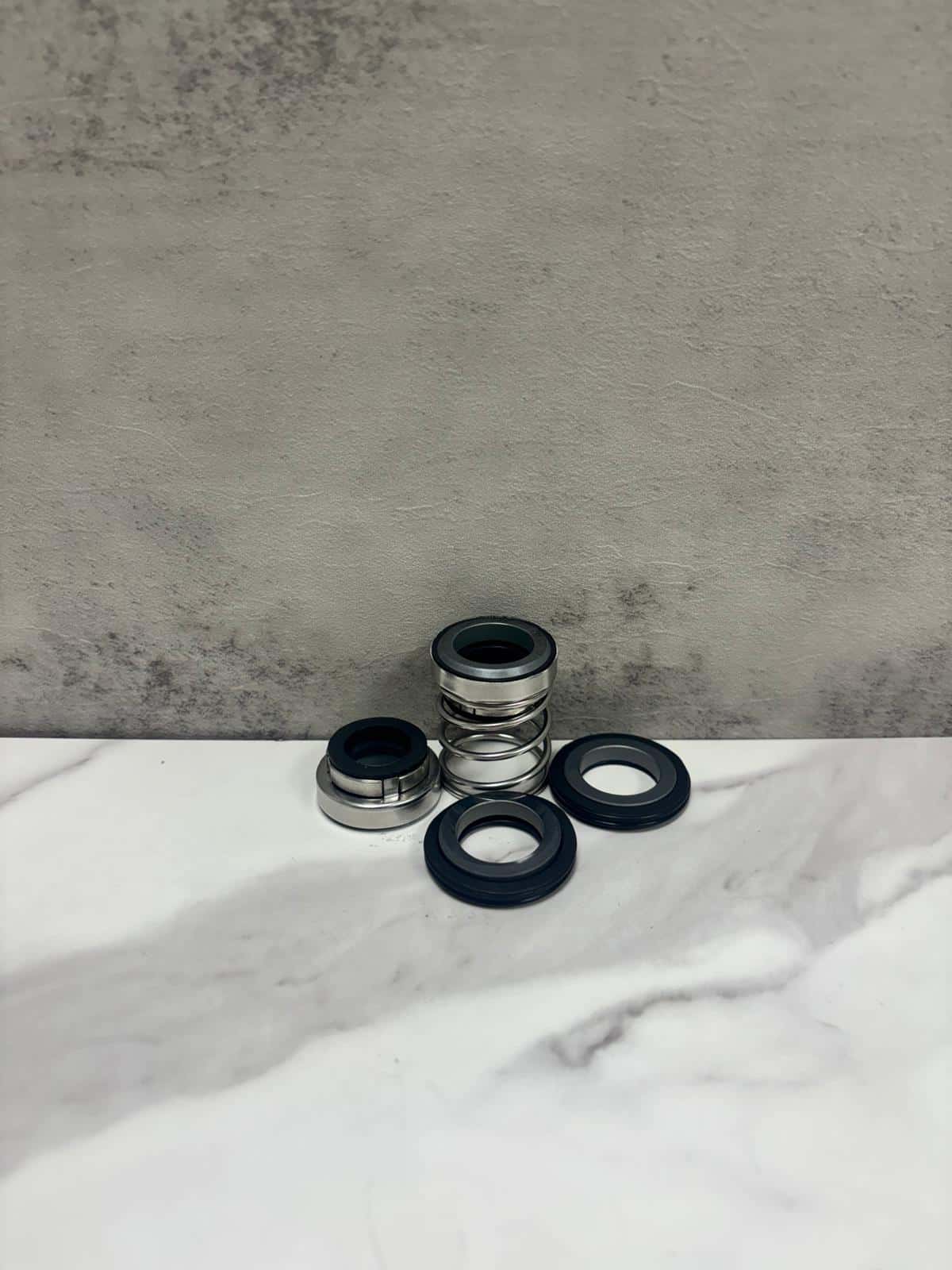

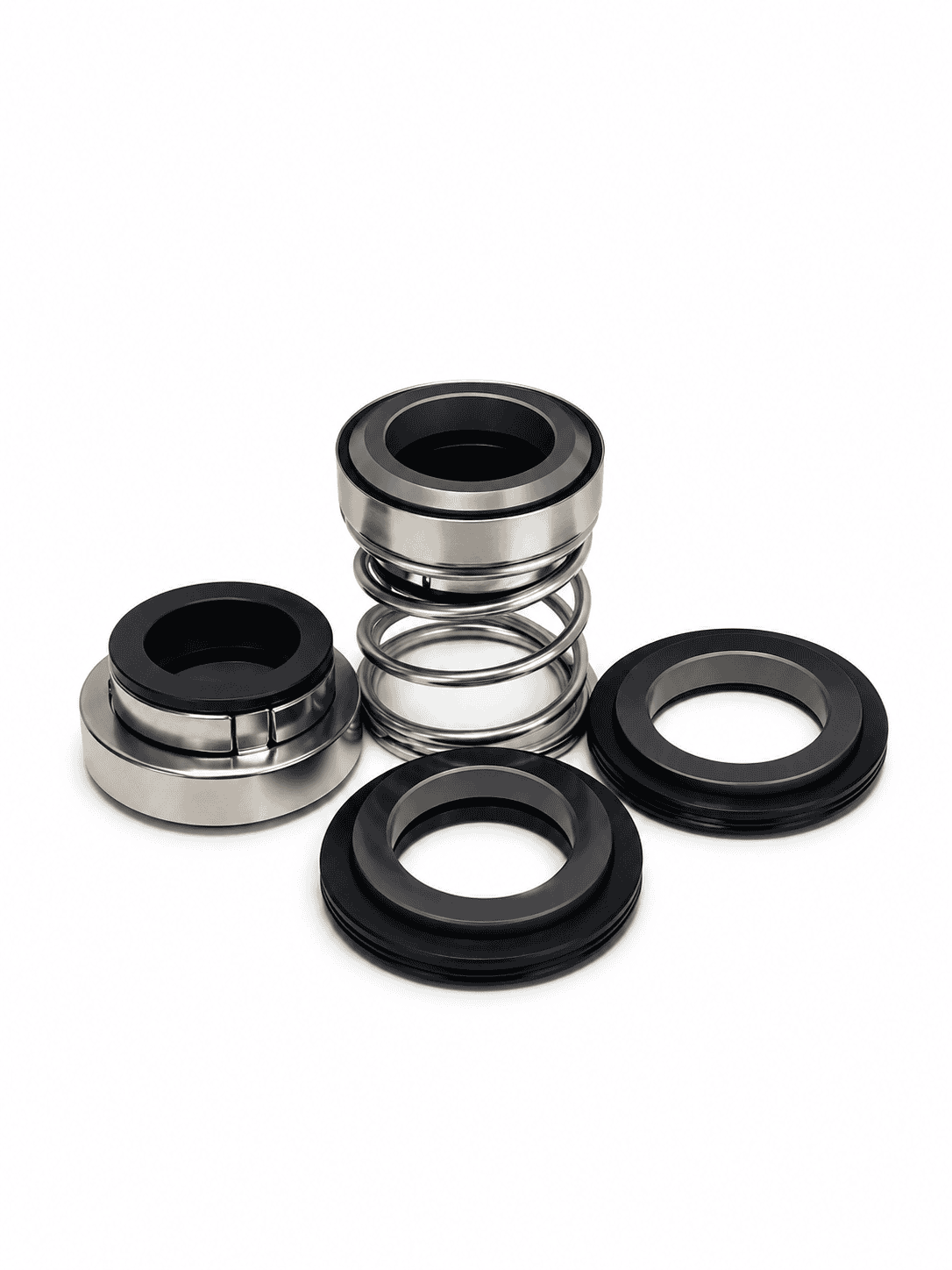

Ebara 260A Double Mechanical Seal — 14mm (14×30, Upper + Lower)

Ebara 260A is the direct replacement double mechanical seal for small Ebara submersible pumps built around a 14mm shaft and 30mm seat. This complete upper-and-lower set cross-references to VGM-2971 and W-14HL, and is the same proven seal we supply for Tsurumi 14×30 applications — built to OEM-equivalent standards or higher.

Both the upper and lower seals run Silicon Carbide against Silicon Carbide (SiC/SiC) with Viton (FKM) elastomers — a hard-face, chemical-resistant build that holds up to grit, fibers, and continuous-duty submersible service far better than carbon-ceramic alternatives.

At a glance:

• Shaft size: 14 mm

• Seat size: 30 mm

• Configuration: Double seal (upper + lower)

• Faces: SiC/SiC (upper & lower)

• Elastomers: Viton (FKM)

• Manufacturer reference: Ebara 260A

• Equivalent to: VGM-2971

• Form: Seal assembly only (O-rings/gaskets sold separately)

• Applications: Fits small Ebara submersible pumps that use the 14mm shaft and 30mm seat double-seal layout. Because it shares the 14×30 footprint, it also covers the equivalent Tsurumi and Aquascape pond and fountain pumps
