Ebara Type 198 Mechanical Seal (T-198 / Type 198) — Fits EVM / EVMU / EVMW / EVMU/A Pumps

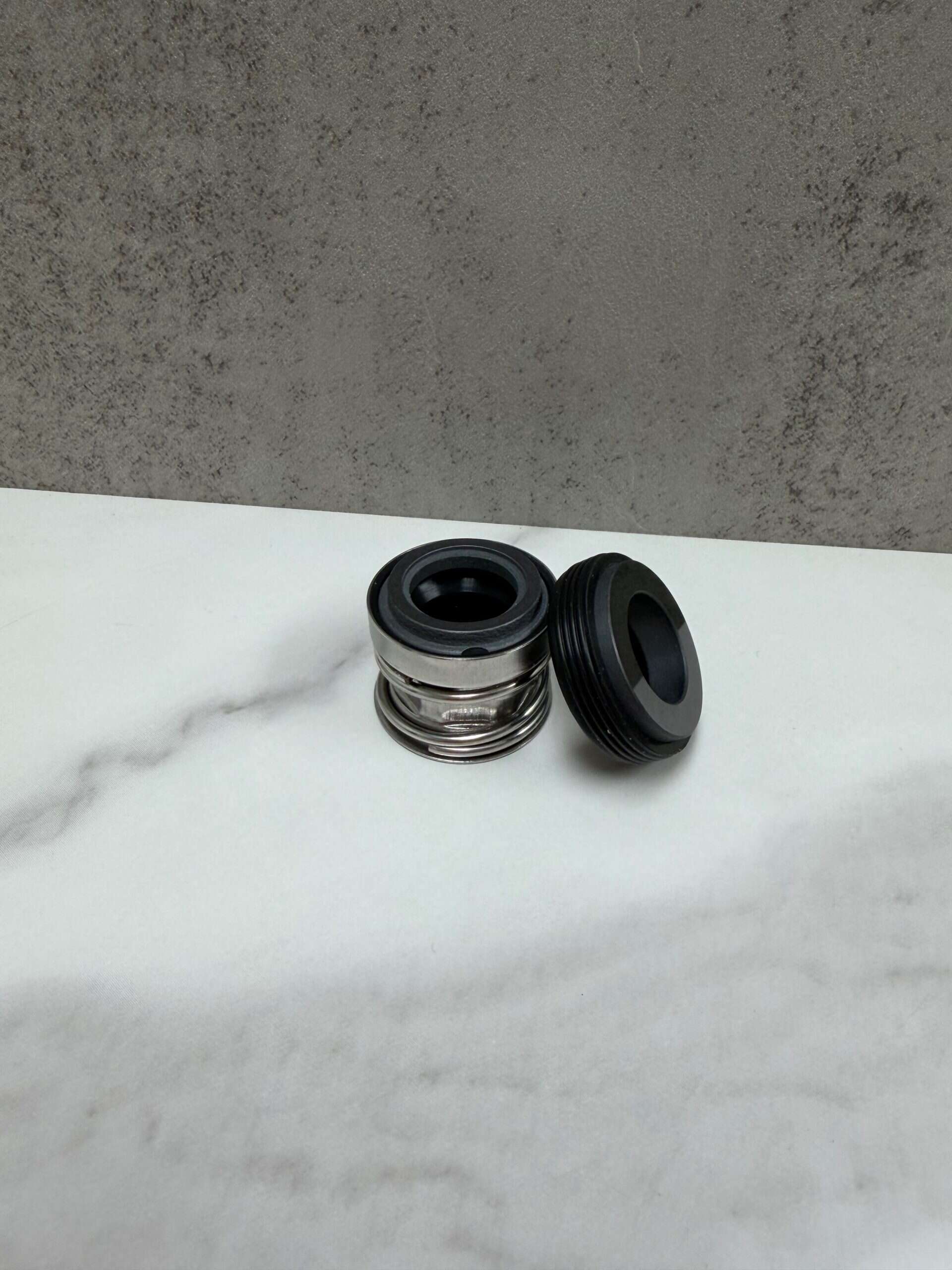

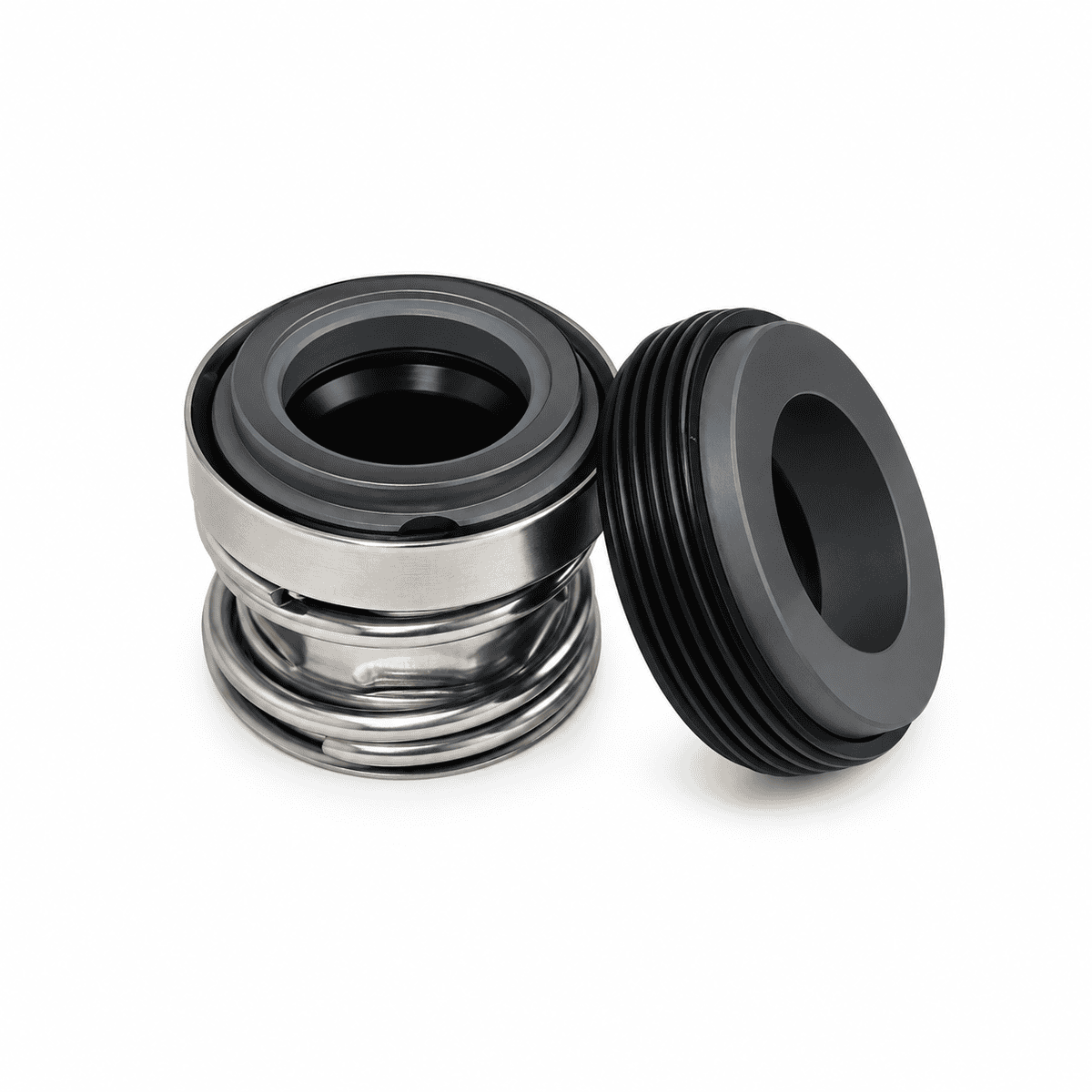

ebara EVM / Armstrong VMS 198 12.7MM
Additional images
ebara EVM / Armstrong VMS 198 16MM

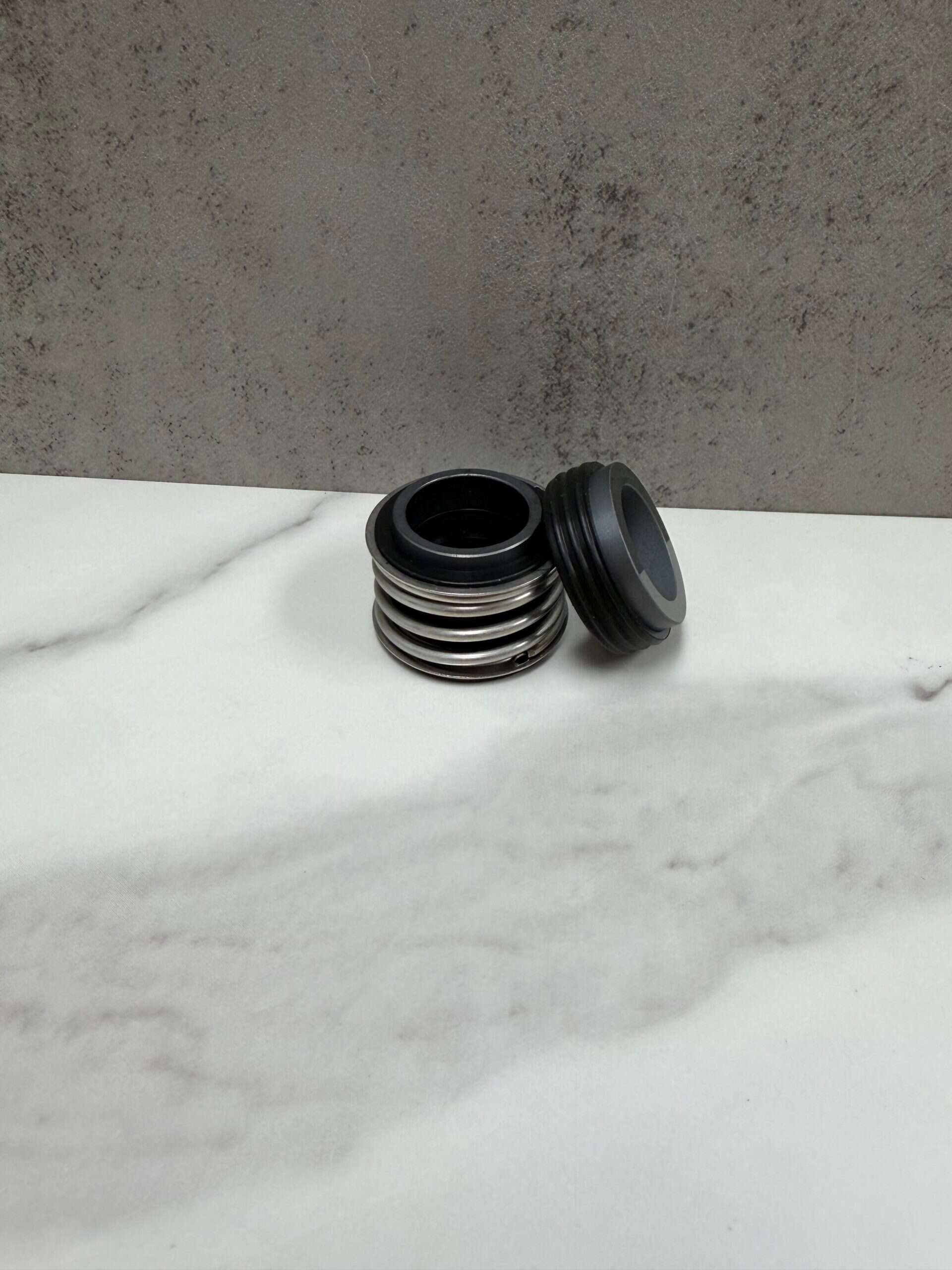

ebara EVM / Armstrong VMS 198 20MM

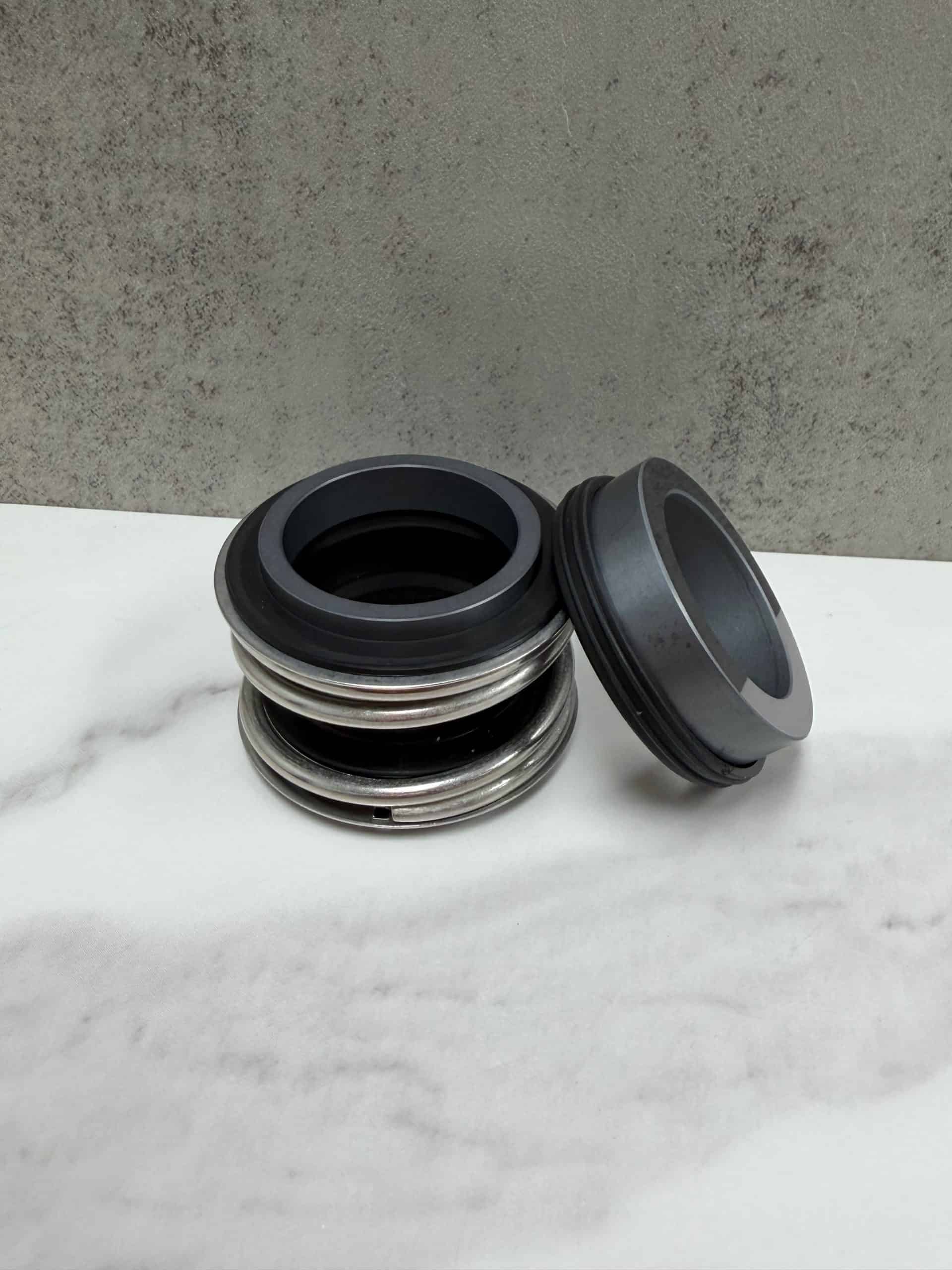

ebara EVM / Armstrong VMS 198 28MM

Ebara Type 198 Mechanical Seal (T-198 / Type 198) — Fits EVM / EVMU / EVMW / EVMU/A Pumps

SKU: N/A

Weight .3 lbs
Dimensions 2 × 2 × 1.75 in
QTY Price
Have a Question?
  • DESCRIPTION

    The Ebara Type 198 mechanical seal (T-198 / T198) is an OEM-style replacement seal for Ebara vertical multistage pumps, with silicon carbide faces on both sides and a direct-fit installation. This listing covers the Ebara EVM, EVMU, EVMW and EVMU/A families in four shaft sizes — select your size from the dropdown above.

    Mechanical seal only — the metal assembly (sleeve and set screws) is not included.

    At a Glance

    Seal type Type 198 (T-198 / T198)
    Shaft sizes 1/2 in. (12.7mm), 16mm, 20mm and 28mm — select above
    Pump families Ebara EVM, EVMU, EVMW and EVMU/A
    Rotating face Silicon Carbide
    Stationary face Silicon Carbide
    Seal chamber Built to suit non-DIN Ebara seal chamber dimensions
    What you receive 1 × Ebara Type 198 mechanical seal in the size selected. Mechanical seal only — sleeve and set screws not included
    Ebara Type 198 – Seal Reference
    Find your pump in the right-hand column, then select that shaft size above. Every size has silicon carbide faces on both sides.
    Select Faces Fits These Pumps
    1/2 in. (12.7mm) Silicon Carbide / Silicon Carbide Ebara EVMU3
    16mm Silicon Carbide / Silicon Carbide Ebara EVMU/A 10 4, EVMU/A 10 10
    20mm Silicon Carbide / Silicon Carbide Ebara EVM 18, EVMU 18, EVMW 18
    28mm Silicon Carbide / Silicon Carbide Ebara EVM, EVMU and EVMW 28mm builds — call or text to confirm your model
    Not sure which size you need? Call or text 561-414-1046 with a photo of your pump nameplate — no purchase required.

    Have an EVMSU or EVMSUL pump?

    Current Ebara EVMSU and EVMSUL vertical multistage pumps do not take a Type 198. They use a Type 192S — 16mm on the 1, 3 and 5 series, and 20mm on the 10, 15 and 20 series. See our Ebara EVMSU / EVMSUL Type 192S mechanical seal.

    Cross references and alternate part numbers

    • Vulcan Type 198 — the Ebara-chamber version of the Type 192 family

    • Ebara EVM seal, Ebara EVMU seal, Ebara EVMW seal, Ebara EVMU/A seal

    Your number not listed? Call or text 561-414-1046 and we will cross it for you.

    Rebuilding an Ebara multistage pump?We stock seals and repair parts across the Ebara range.

    Doing the job yourself? Read How to Replace a Mechanical Pump Seal.



Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
