HOMA AK848-380/19.7 Repair Kit — 55 mm Mechanical Seals & O-Ring Set

HOMA AK848-380/19.7 Repair Kit — 55 mm Mechanical Seals & O-Ring Set

The HOMA AK848-380/19.7 repair kit is a direct-fit rebuild kit for the HOMA AK848-380/19.7 submersible pump with the AM243.23F/C/8/3-3 motor — 55 mm upper and lower mechanical seals in silicon carbide with Viton elastomers, supplied with the complete Buna-N O-ring set. Built to OEM-equivalent standards or higher.

At a Glance:

• Shaft Size: 55mm

• Configuration: Double — upper and lower seal

• Seal faces: Silicon carbide / silicon carbide (SiC/SiC)

• Elastomers: Viton (FKM)

• O-rings: Complete set Buna-N (NBR)

• Fits pump: HOMA AK848-380/19.7

• Fits motor: AM243.23F/C/8/3-3

What’s included:

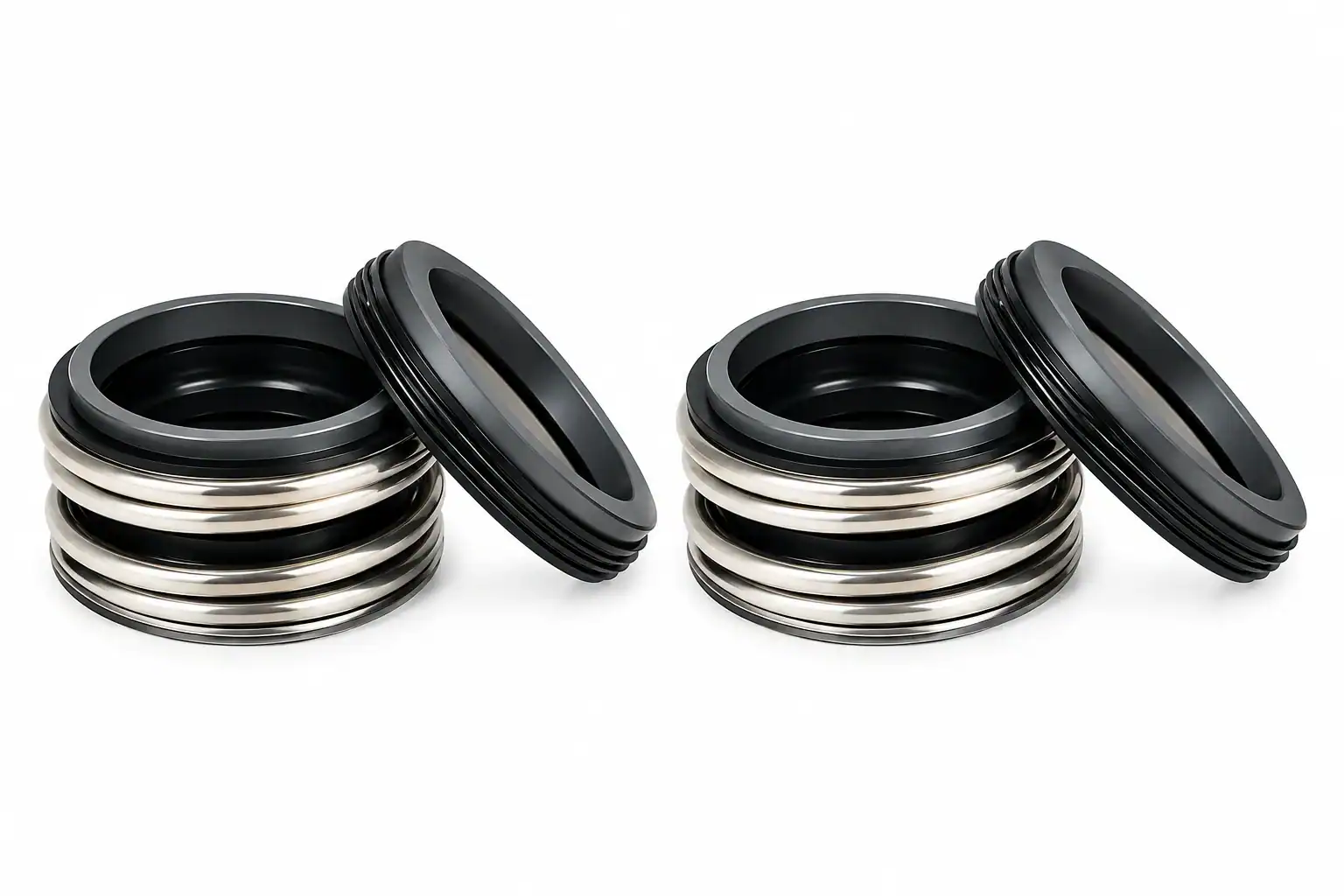

• (2) 55 mm OEM-equivalent mechanical seals (upper and lower)

• Complete Buna-N O-ring kit (all critical O-rings for installation)

Applications

The AK848-380/19.7 is a HOMA A-Series submersible sewage pump, and the seal pair is what decides how long the rebuild lasts. Silicon carbide running against silicon carbide is the face combination for wastewater carrying grit — it takes the abrasive load that grooves a carbon face inside a season, which is why HOMA specifies SiC on both sides as standard. Viton elastomers cover the temperature and chemical range of municipal and industrial sump duty. Every O-ring needed for reassembly ships in the kit, so the pump closes back up in one pass instead of waiting on a second order.

Fits: HOMA AK848-380/19.7 pump, AM243.23F/C/8/3-3 motor. Match by the full model number from the pump nameplate and the motor nameplate — HOMA runs the same base number across builds that take different seal sizes. Not sure which you have? Text a photo of both nameplates to 561-414-1046 and we’ll match it. No purchase required.

Need the seal on its own? We sell the 55 mm HOMA mechanical seal individually
