Hydromatic Pump Repair Kit — Seals & O-Rings by Pump Model

SKU: N/A

Weight 2.5 lbs
Dimensions 7 × 7 × 4 in
QTY Price
Have a Question?
  • DESCRIPTION

    Hydromatic Pump Repair Kit — Seals & O-Rings by Pump Model

    Hydromatic pump repair kits are complete seal and O-ring service kits for Hydromatic pumps — choose your exact pump model from the dropdown and you’ll get the right kit for that pump. Each kit includes two mechanical seals plus a full O-ring set, built to OEM-equivalent standards or higher for the same fit and reliability as the original.

    Standard build: Carbon/Ceramic/Buna upper seal and SiC/SiC lower seal, with Buna (NBR) O-rings. Alternate face materials are available on request.

    Find your model below, then select it in the dropdown above. The explosion-proof and XP builds are listed separately because they do not take the same kit as the standard pump.

    • 4 in. discharge, standard: S4L, S4LRC, S4LR, S4B, S4K, S4Q, H4Q, S4M, S4MRC, S4P, S4HR, S4HRL, H4H, H3H, M3-4

    • 4 in. discharge, explosion-proof and XP: S4BX, S4KX, S4KXP, S4LXP, S4LVXP, H4QX, H4QXP, H4HXP, C4HXP

    • 6 in. discharge: S6L, S6LX, S6L(X), S6A, S6AX, S6AXP

    • 8 in. and larger: S8F, S8FXP, S8L, S8LA, S8LX, S8LAXP, S8LXP, S12L, S12XP, 12VL, S4T, S4TXP

    • Other series: 30MP, MMP, 40MP, 40RDP, 60MP, 60RDP, HPG200, HPGX200FD, S3HRC, S3HVX, 500ED, S4N, S3N, S4NRC, S4NX

    An X in the model number is the explosion-proof build — an S6LX is the hazardous-location version of the S6L, and it takes a different kit. A trailing P on the S8FP is a premium-efficiency rating, not explosion-proof. The 40MP and 60MP kits are not for MMP, MMPH or MPH pumps — those take a 3 in. seal, so call us.

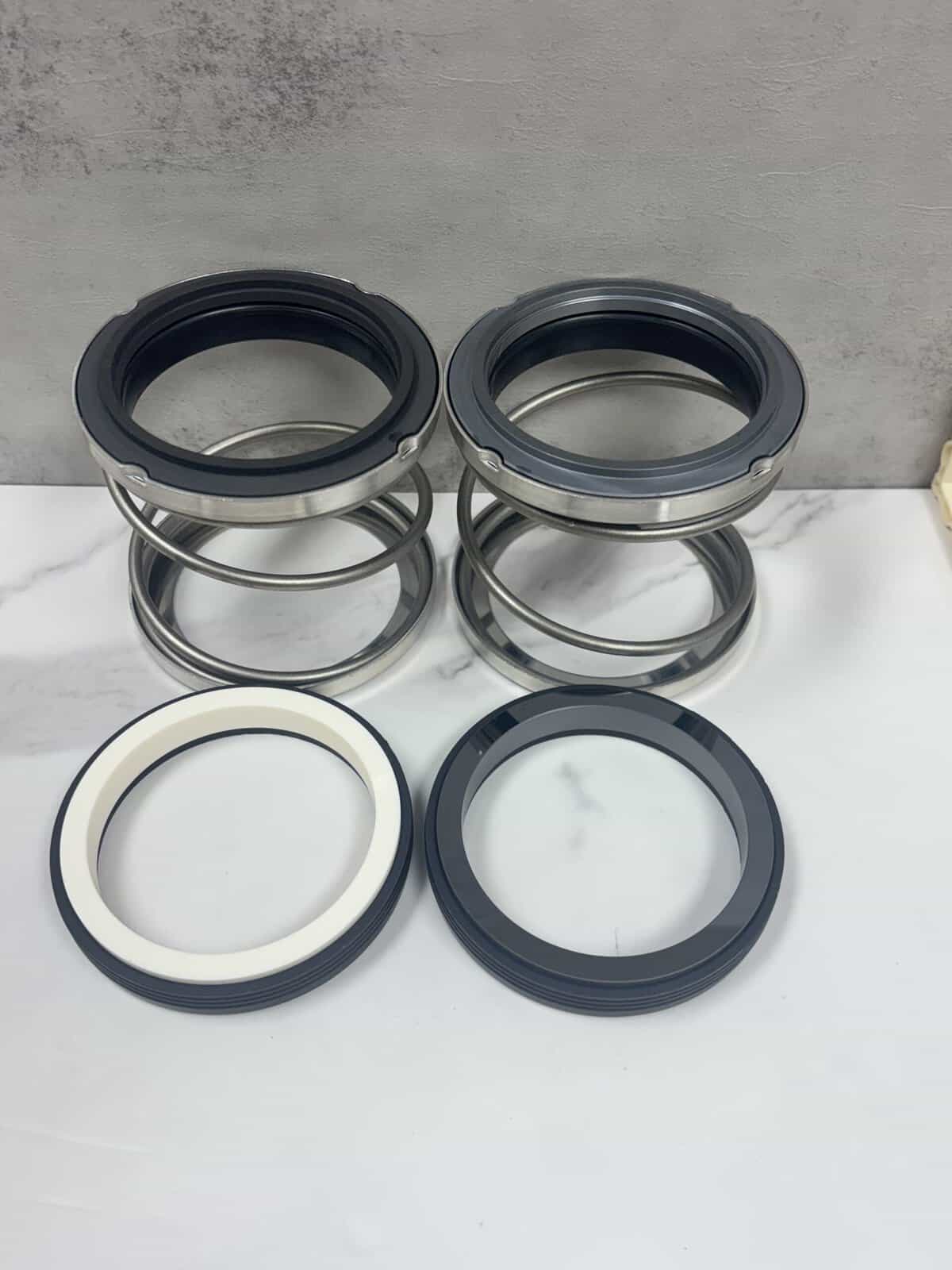

    What’s included:

    • Upper seal: Carbon/Ceramic/Buna

    • Lower seal: Silicon Carbide/ Silicon Carbide

    • O-rings: Buna (NBR)

    Model Notes:

    • 40MP and 60MP kits are not for MMP, MMPH, or MPH pumps.

    • 40RDP and 60RDP: please specify pre-2005 or 2005-current manufacture date so we send the correct O-rings and gasket.

    • S8L models: seal configuration varies (some 25 HP units use a narrow-OD / slotted-seat seal) — confirm your build before ordering.

    Pump Model Reference Numbers Notes
    12VL Takes the 3 in. seal. Call or text to confirm your build.
    30MP 009200011 Fits 30MP. Not for MMPH or MPH.

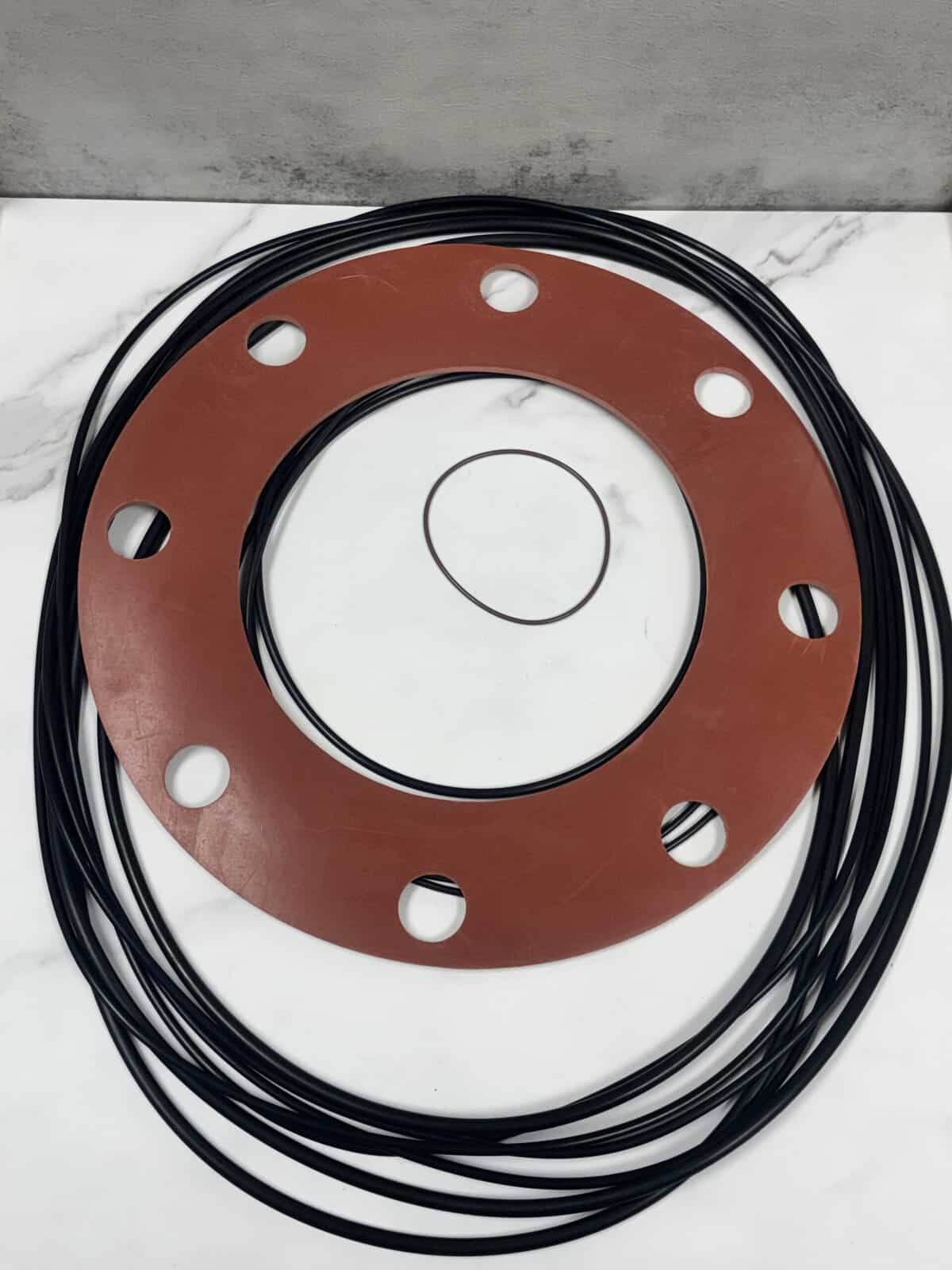

    40MP 009200011, 009200131 Includes the 4 in. discharge gasket. Not for MMP, MMPH or MPH.
    40RDP 148590001, 148590031 Includes the discharge gasket. Specify pre-2005 or 2005-current manufacture date.
    500ED 049160001, 003000001 Same pump as the S3HVX, listed under both names.
    60MP 080730001 Includes the 6 in. discharge gasket. Not for MMP, MMPH or MPH.

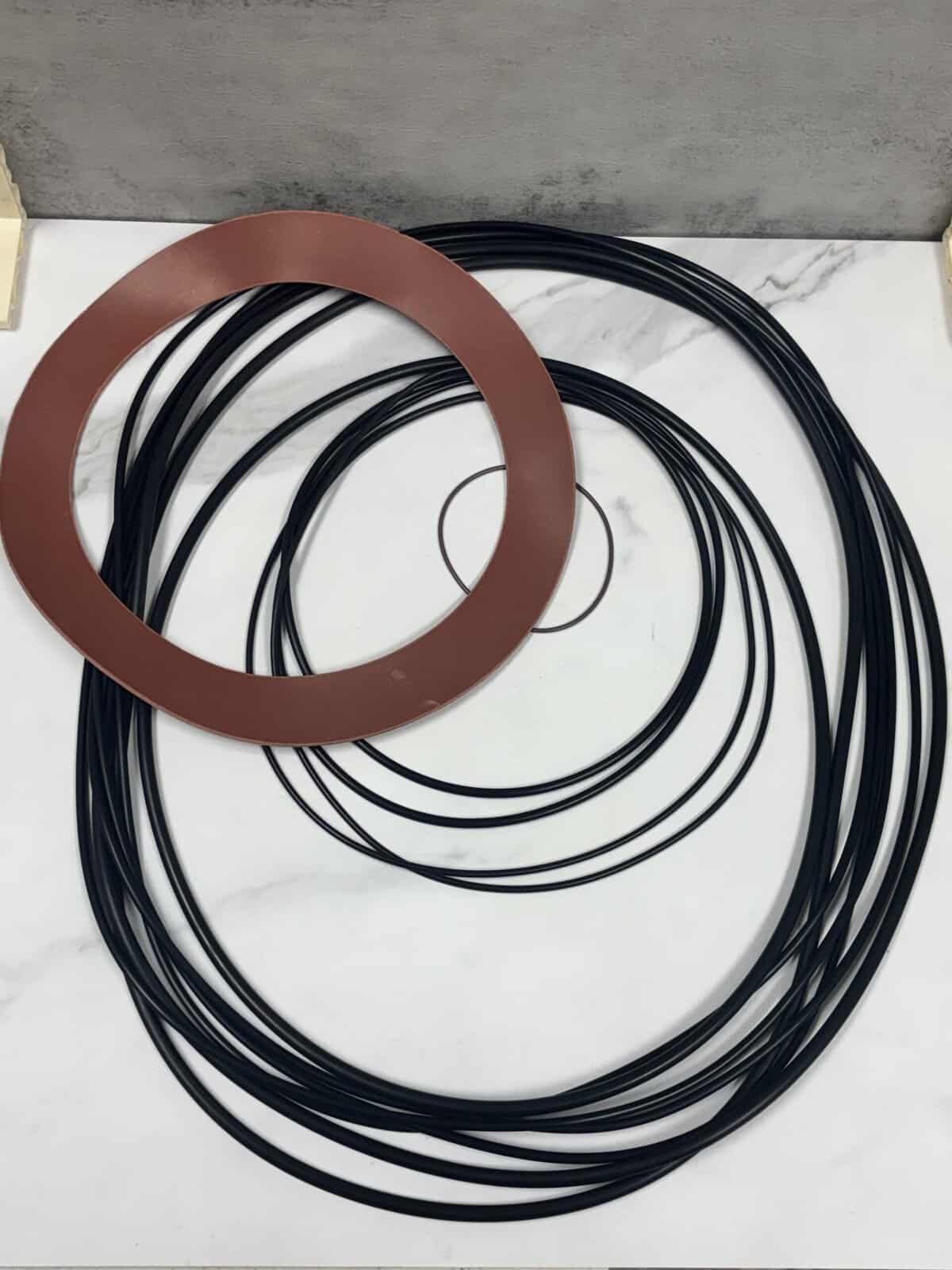

    60RDP 037180001 Includes the gasket. Specify pre-2005 or 2005-current manufacture date.
    C4HXP XP high-pressure build. Different kit from the standard pump.
    H3H 009200011, 009200131 Same kit as the H4H, S4M, S4P and S4HR.
    H4H 009200011, 009200131 Fits H4H750, H4H1000 and H4H1500. Same kit as the H3H, S4M, S4P and S4HR.
    H4HXP 110490011, 009200011 Explosion-proof build, e.g. H4HXP1000EC. Takes a larger upper seal than the standard H4H.
    H4Q 019570001 Two seals per pump, same part. Same kit as the S4L family.
    H4QX Explosion-proof build. Different kit from the standard H4Q.
    H4QXP XP high-pressure build, all sizes 2000, 2500 and 3000. Different kit from the standard H4Q.
    HPG200 003000001, 003000041 Fits HPG200.
    HPGX200FD 003000001 Fits HPGX200FD.
    M3-4 009200011, 009200131 Same kit as the H4H.
    MMP 009200011 MMP only — this is not the 40MP or 60MP kit. Call or text to confirm.
    S12L Takes the 3 in. seal. Call or text to confirm your build.
    S12XP XP build. Different kit from the standard S12L.
    S3HRC 003000001, 003000041 Fits S3HRC300.
    S3HVX 049160001, 003000001 Also sold as the 500ED.
    S3N 049160001 Same kit as the S4N.
    S4B 019570001 Two seals per pump, same part. Takes a different seal from the S4BX below.
    S4BX 080730031 Explosion-proof build, 2-1/4 in. shaft. We supply SiC/SiC faces.
    S4HR 009200011, 009200131 Same kit as the H4H. Also written S4HRL.
    S4HRL 009200011, 009200131 Same kit as the H4H. Also written S4HR.
    S4K 019570001 Upper and lower seal are the same part. Same kit as the S4L family.
    S4KX Explosion-proof build. Different kit from the standard S4K.
    S4KXP XP high-pressure build, e.g. S4KXP2000FC. Different kit from the standard S4K.
    S4L 019570001 Two seals per pump, same part. Carbide option 019570021; we supply SiC/SiC 019570051.
    S4LC2500FC 019570051 25 HP build. We supply SiC/SiC faces.
    S4LR Call or text to confirm. If your nameplate reads S4LRC, use that row.
    S4LRC 019570001 Built in 1750 RPM and 3450 RPM versions, both this kit. Same kit as the S4L family.
    S4LVXP XP high-pressure build. Different kit from the standard pump.
    S4LXP XP high-pressure build, e.g. S4LXP4000. Different kit from the standard S4L.
    S4M 009200011, 009200131 Same kit as the H4H. Also written S4MRC.
    S4MRC 009200011, 009200131 Same kit as the H4H. Also written S4M.
    S4N 049160001 Fits S4N and S3N.
    S4NRC 003000001, 003000041 Call or text to confirm fitment.
    S4NX 049160001, 003000041 Fits S4NX.
    S4P 009200011, 009200131 Same kit as the H4H.
    S4Q 019570001 Current replacement for the S4L, same kit.
    S4T 037180001 Takes the 3 in. seal. Example build S4T7500M4.
    S4TXP XP build. Different kit from the standard S4T.
    S6A 019570001 6 in. discharge. Same kit as the S4L family.
    S6AX Explosion-proof build of the S6A. Different kit from the standard pump.
    S6AXP XP build, 250 frame, 40 HP and below. Includes S6AXP4000FC.
    S6L 019570001 6 in. discharge version of the S4L — same kit, two seals per pump.
    S6LX Explosion-proof build of the S6L. Also written S6LXP. Different kit from the standard S6L.
    S8F 019570001 8 in. discharge. Same kit as the S4L family.
    S8FXP XP build. Different kit from the standard S8F.
    S8L Takes the 3 in. seal. Some 25 HP units (e.g. S8L2500M4-8) need a tapered bore and notched seat — call or text to confirm your build before ordering.
    S8LA Takes the 3 in. seal. Call or text to confirm your build.
    S8LAXP XP build, e.g. S8LAXP15000FC.
    S8LX High-pressure FB build, e.g. S8LX5000FB.
    S8LXP XP build. Different kit from the standard S8L.
    Not this kit: 60 MPH, 60 MMPH and MPH pumps take a 3 in. seal and a different kit from the 40MP and 60MP. Call or text 561-414-1046 and we will source it.
Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
