PS-4349 Mechanical Seal — Bell & Gossett 1/2″

PS-4349 Mechanical Seal — Bell & Gossett 1/2″

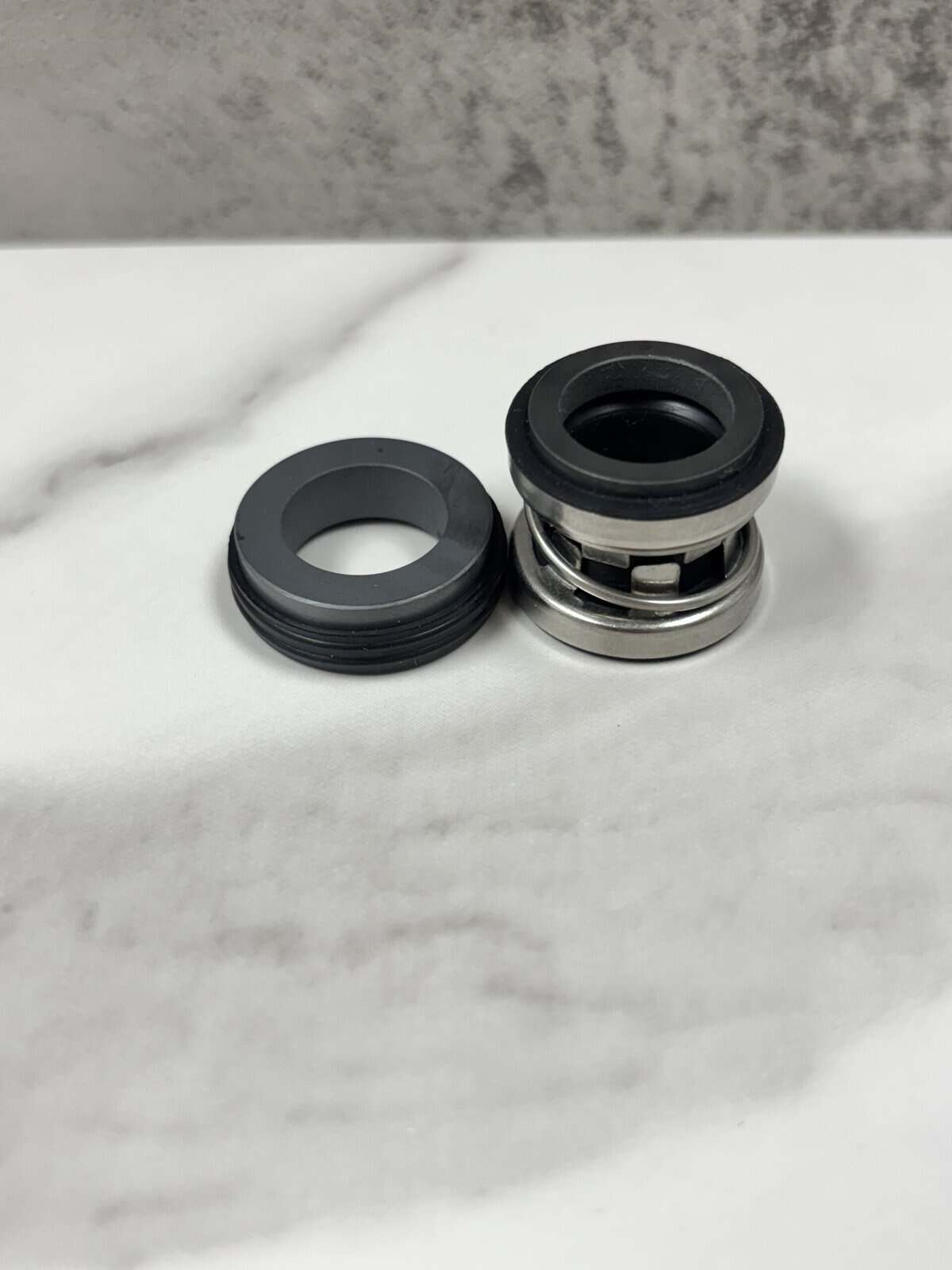

The PS-4349 mechanical seal is a direct-fit 1/2″ shaft seal for Bell & Gossett 2100 series pumps, cross-referenced to B&G P86261. It is built to OEM-equivalent standards or higher, and we supply it with an upgraded Silicon Carbide/Silicon Carbide face combination — a step up from the standard carbon version — for longer service life.

Upgraded Material
The OEM seal (186046LF / 186047LF) uses an EPDM/Carbon/Silicon Carbide build. We supply the PS-4349 with an upgraded EPDM/Silicon Carbide/Silicon Carbide combination — both faces in hard silicon carbide — for better wear resistance and longer service life in demanding duty.

At a Glance:

• Reference: PS-4349 / B&G P86261

• Series: Bell & Gossett 2100

• Shaft size: 1/2″

• Working length: 0.591″

• Cup seat: 0.938″ × 0.294″

• Faces / elastomers: EPDM / SiC / SiC (upgraded)

• Form: Seal assembly only (O-rings/gaskets sold separately)

Applications
Built for Bell & Gossett 2100 series pumps running the 1/2″ shaft seal. Matching from a worn seal? Confirm your shaft size and cup seat dimensions first, or send a photo of the old seal and your pump nameplate to info@sealhouseusa.com, or call/text 561-414-1046. No purchase required — our seal specialists will match it.
