Tsurumi H-45X Mechanical Seal — 45mm | 025-000-62 & 025-001-14

BJM K2N220 45mm double mechanical seal M01355V, upper and lower set HCP TF840 45mm double mechanical seal F21-0B045NS0000-0, upper and lower set Ebara 260D 45mm double mechanical seal ED560N-M45, upper and lower set surumi H-45X 45mm double mechanical seal 025-000-62, upper and lower set

Tsurumi H-45X Mechanical Seal — 45mm | 025-000-62 & 025-001-14

Weight 1 lbs
Dimensions 3 × 3 × 3 in
QTY Price

$292.50
Have a Question?
  • DESCRIPTION

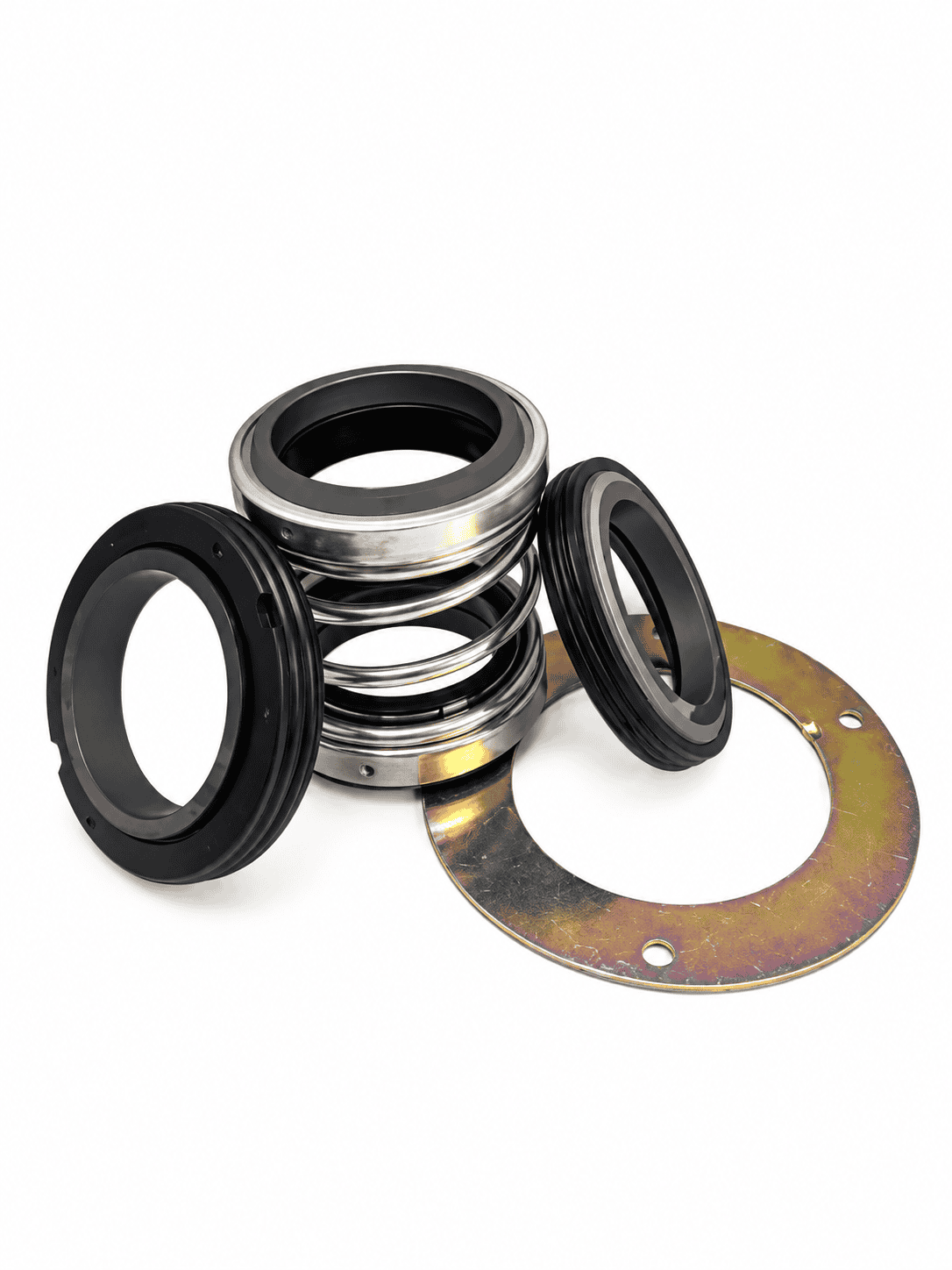

    Tsurumi H-45X Mechanical Seal — 45mm Double Seal (025-000-62)

    The Tsurumi H-45X mechanical seal is a direct-fit 45mm double seal for Tsurumi submersible pumps running a 45mm shaft, including the 100C415 cutter pump family. Tsurumi reference this seal under two OEM numbers, 025-000-62 and 025-001-14, both carrying the H-45X seal code. Both supersede the obsolete 025-197-15. Built to OEM-equivalent standards or higher.

    At a Glance

    • Shaft size: 45mm

    • Configuration: Double seal (single spring with two seat faces)

    • Faces: Silicon Carbide

    • Manufacturer reference: Tsurumi H-45X  OEM numbers: 025-000-062 , 025-001-14

    • Supersedes (obsolete): 025-197-15

    Fits

    Tsurumi submersible pumps with a 45mm shaft, including the 100C415-62 and 100C415-CR-63. Tsurumi builds change by revision, so enter your full pump model at checkout and we will verify the correct seal before it ships.

    Not sure which seal you need? Text a photo of your pump nameplate to 561-414-1046 and we’ll match it — no purchase required.





    Direct-fit 45mm double mechanical seal for Tsurumi submersible pumps, built to OEM-equivalent standards or higher. Supplied as one complete assembly — two sets of faces in series, running in the oil chamber.

    OEM 025-000-62 (H-45X), the current replacement for the obsolete 025-197-15 — fits Tsurumi 100C415-CR63.
    Also covers OEM 025-001-15 (H-45) — fits Tsurumi 100C415-62.



    What’s Included

    • One complete 45mm double mechanical seal assembly — two sets of faces, two seats

    Cross Reference — Tsurumi H-45X / 025-000-62

    • Tsurumi seal code: H-45X

    • Tsurumi current OEM part number: 025-000-62

    • Obsolete / superseded number: 025-197-15

    • Fits Tsurumi pump: 100C415-CR63

    Built for Tsurumi submersible pumps running the 45mm shaft, including the 100C415-CR63. Matching from a worn seal? Confirm your exact pump model and parts list first, or send a photo of the old seal and your pump nameplate to info@sealhouseusa.com, or call/text 561-414-1046. No purchase required.

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
