Ebara DMLEU Repair Kit — 100DMLEU6152 / 150DMLEU6152 (20 HP)

Ebara DMLEU repair kit

The Ebara DMLEU repair kit is a complete direct-fit rebuild set for 20 HP (15 kW) Ebara DMLEU submersible sewage pumps, covering both 100DMLEU6152 and 150DMLEU6152. The double mechanical seal and its matching Buna-N O-ring set ship together as one kit, built to OEM-equivalent standards or higher.

At a Glance

• Fits: Ebara 100DMLEU6152 and 150DMLEU6152

• Rating: 15 kW / 20 HP, 60 Hz, 208/230 V

• Discharge: 4 in. (100 series) and 6 in. (150 series)

• Configuration: Double mechanical seal, upper and lower

• Faces: Lower silicon carbide vs. silicon carbide; upper carbon vs. ceramic

• Elastomers: Buna-N (NBR)

• O-rings: Complete Buna-N O-ring set included

• Form: Complete repair kit — seal set and O-rings supplied together

What’s Included

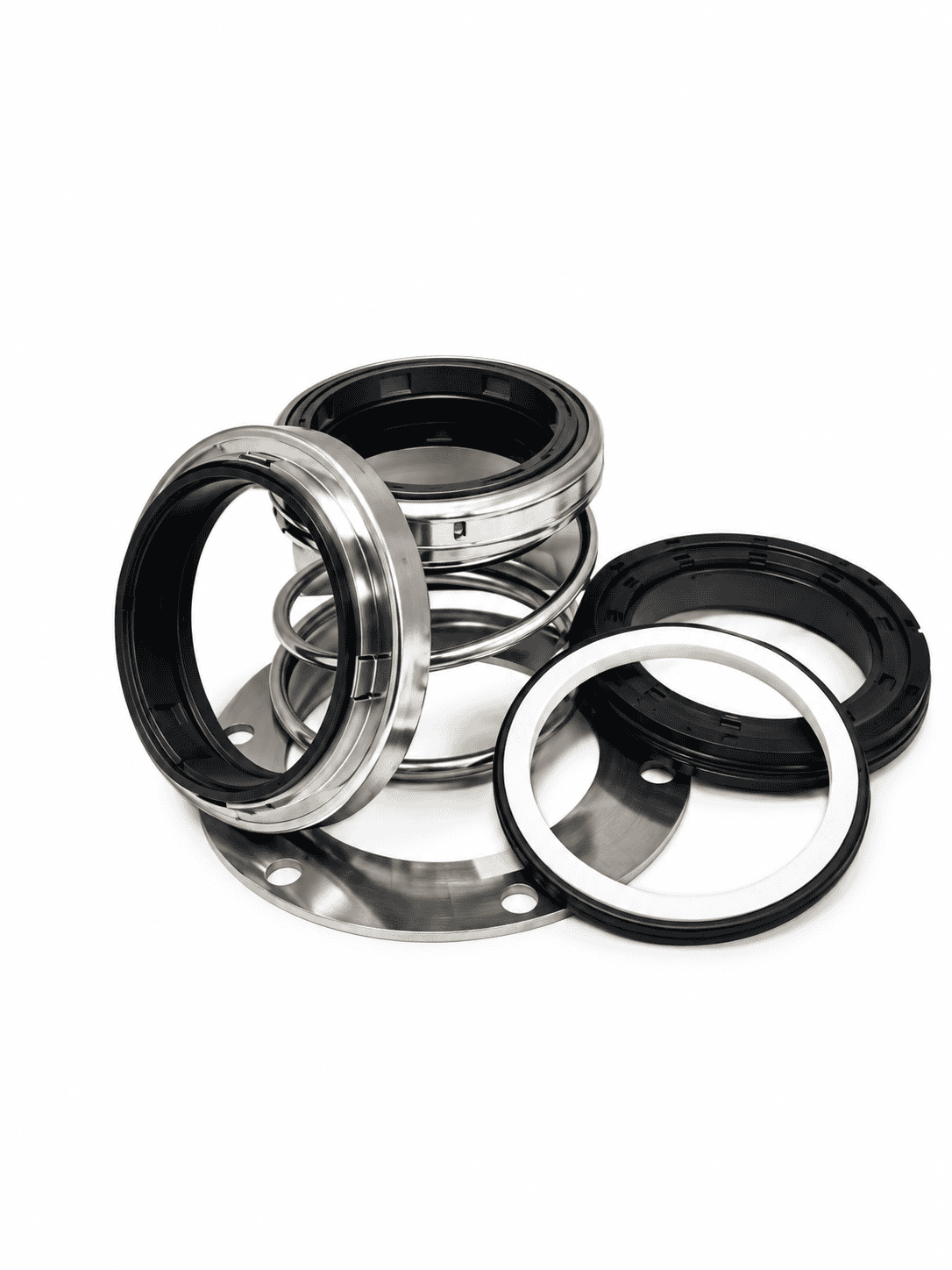

• Complete double mechanical seal set — upper and lower, stationary seats and rotating faces

• Complete Buna-N O-ring set

Applications

DMLEU pumps are submersible non-clog sewage and wastewater pumps, running the seal pair in an oil-filled chamber. The 20 HP models in this kit are found in municipal lift stations and wastewater treatment plants, commercial and institutional sewage ejection, industrial sump and effluent transfer, and process and agricultural wastewater handling — solids-bearing water where the lower seal faces abrasives continuously.

Cross-references and fitment

Fits: Ebara 100DMLEU6152 (4 in. discharge, 20 HP), Ebara 150DMLEU6152 (6 in. discharge, 20 HP)

Also written as: 100 DMLEU 6152, 150 DMLEU 6152, 100DMLEU-6152, 150DMLEU-6152, DMLEU 6152
