Taco 953-1549-3BRP Seal Kit — 1-1/8″

Taco 953-1549-3BRP Seal Kit — Type E Mechanical Seal Set (3BRP)

The Taco 953-1549-3BRP seal kit is a direct-fit “Type E / E-Design” replacement for select Taco centrifugal pumps. This complete pump repair kit helps simplify service or rebuilds by replacing common wear components and restoring a reliable seal to help prevent leaks in HVAC/hydronic hot and chilled water circulation applications.

Three kits available

Same kit, same fit — the difference is the seal material inside. Choose your build from the dropdown above.

• Standard – Carbon/Ceramic/Nitrile — ordinary hot water and chilled water systems

• Upgrade – Carbon/Ceramic/Viton — hotter systems, glycol and chemicals

• Upgrade – Silicon Carbide/Viton — gritty water and hard-wearing duty

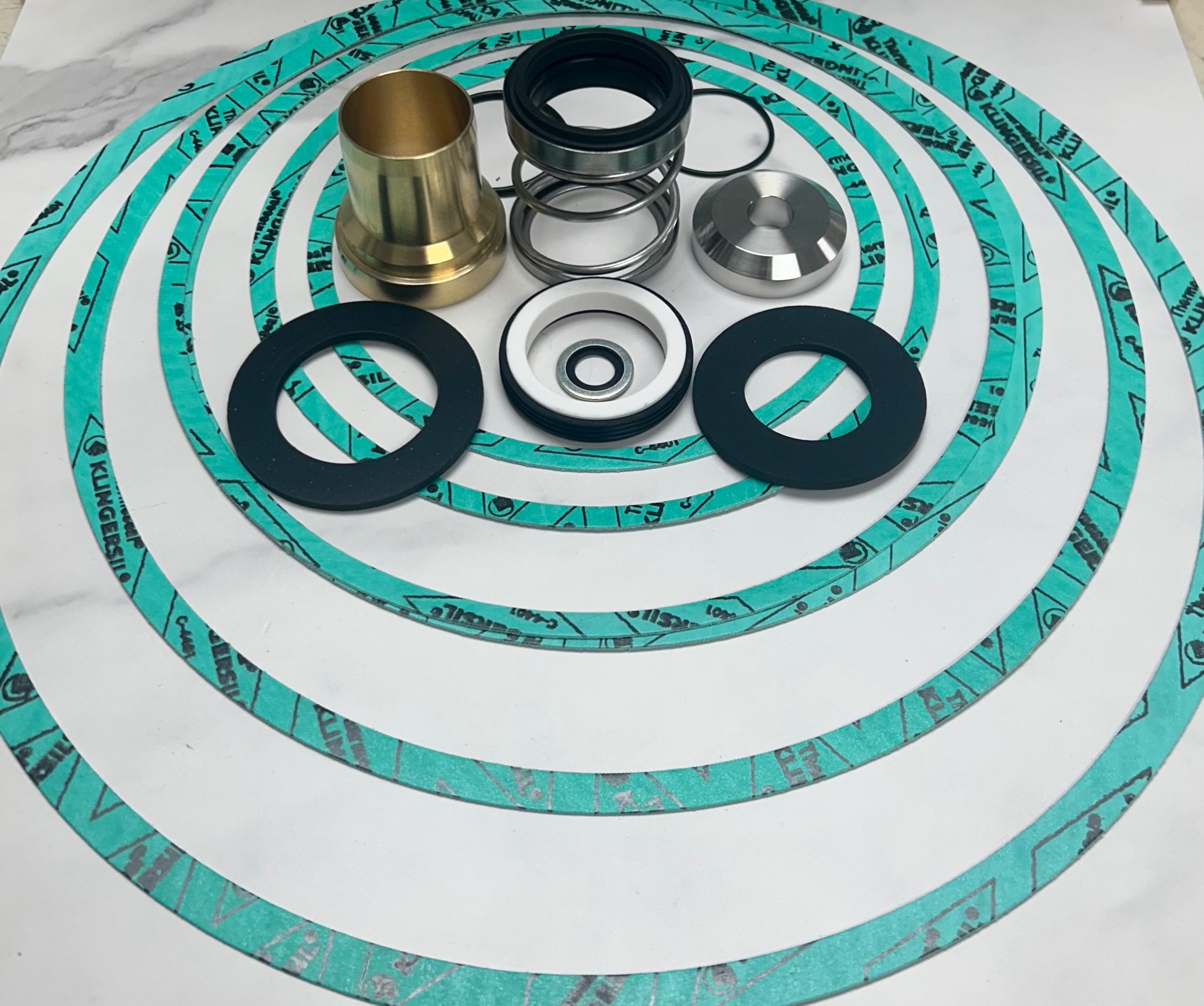

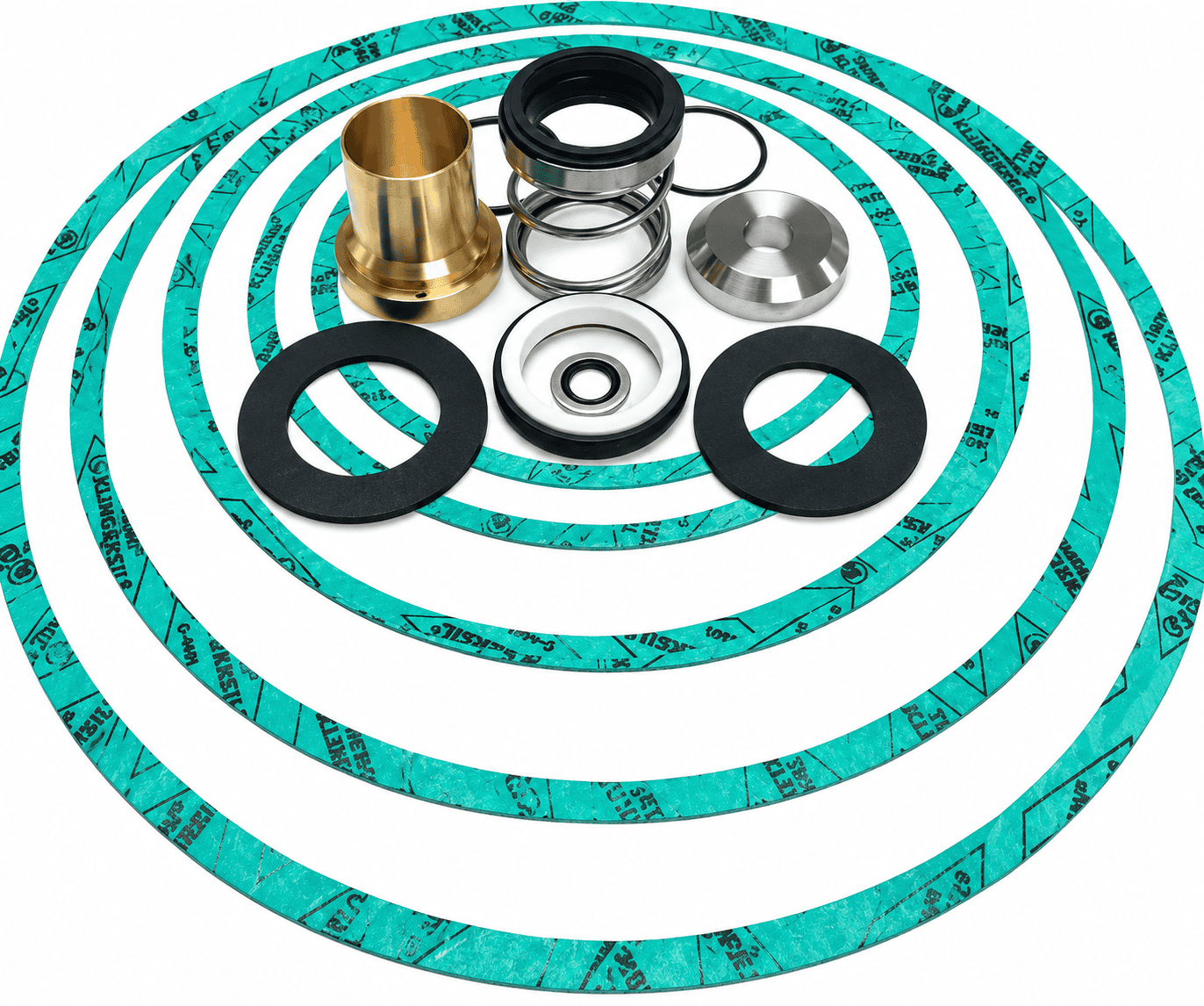

What’s included:

• “Taco Type E” mechanical seal

• Gasket set

• Oil plug washer

• Shaft sleeve

• Sleeve gasket

• Stainless bushing / spacer

• Bushing gasket

• Slingers

Which kit do I need?

Most HVAC and hydronic circulation systems take the Standard Kit. Step up to an Upgrade Kit if your system runs hotter, carries glycol or chemicals, or handles gritty water.

Still not sure? Text a photo of your pump nameplate to 561-414-1046 and tell us what the system runs — we’ll tell you which build to order. No purchase required.

Compatibility:

The Taco 953-1549-3BRP seal kit fits a 1-1/8″ shaft and works with a range of Taco centrifugal pump series, including CM, CI, CE, FM, FI, FE, VL, VI, KV, KS (verify your exact model/build).

Example nameplate from this family: FI6009E4KAJ1L0D000000

Note: Some builds in this family use the 6BRP variant — please confirm whether your pump requires 3BRP or 6BRP before ordering by calling or emailing us. Contact us, or see the 6BRP variant.

Why choose this kit:

• Precision fitment: Crimped-head seal with a custom-matched spring-to-sleeve design for consistent working length and reliable sealing—often a tighter, more accurate fit than generic aftermarket kits.

• Hydronic-ready: Built for the thermal cycling and operating conditions common in HVAC systems.

• All-in-one convenience: Includes the seal and supporting components needed for a clean, efficient rebuild.
