Flygt Plug-In 35mm Seal Kit — Fits 2670, 3153, 5100.210/.211/.220/.221

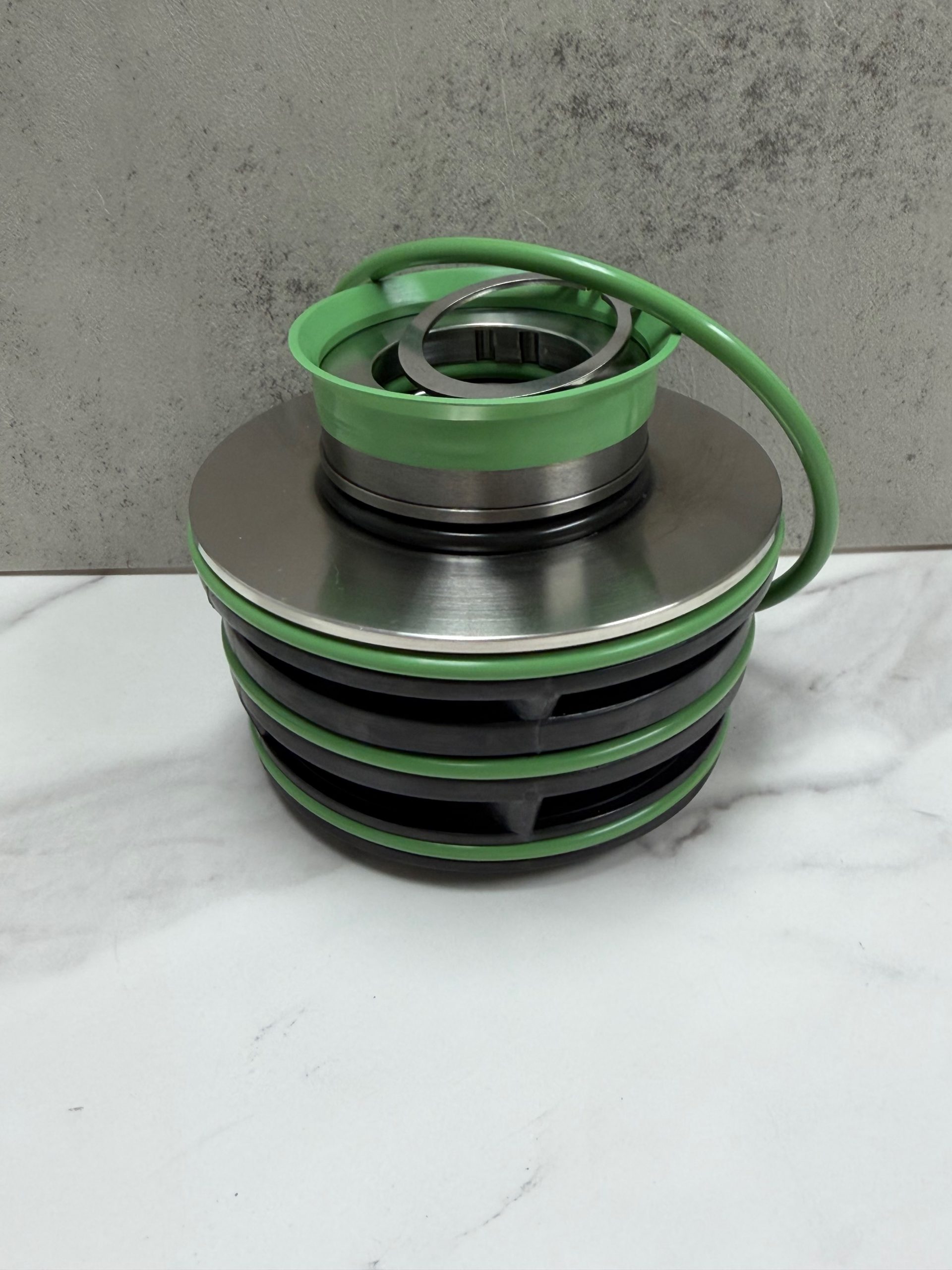

Flygt plug-in 35 mm double cartridge mechanical seal kit for Flygt 2670, 3153 and 5100.210 pumps

Flygt Plug-In 35mm Seal Kit — Fits 2670, 3153, 5100.210/.211/.220/.221

SKU: 3153

Weight 3 lbs
Dimensions 6 × 6 × 4 in
QTY Price
Have a Question?
  • DESCRIPTION

    Flygt Plug-In 35mm Seal Kit — Double Cartridge Mechanical Seal

    The Flygt plug-in 35mm seal kit is a replacement pre-assembled double cartridge mechanical seal for Flygt/Xylem submersible pumps built on a 35mm shaft. The plug-in design holds the motor-side and liquid-side seals in a single aligned unit, built to OEM-equivalent standards or higher.

    Housing spring note: The “long spring” is a housing retention spring used to help hold the plug-in components and pump housing together. It is not part of the mechanical seal cartridge. This spring is included in the factory/OEM O-ring kit.

    At a Glance

    • Shaft size: 35mm

    • Type: Pre-assembled double cartridge (plug-in)

    • Fits: Flygt 2670, 3153, 5100.210/.211/.220/.221

    Choose Your Kit
    Every version fits all pumps listed below. Find the version you need, then select the same name from the dropdown above.
    Kit What’s included Choose this if
    Cartridge mechanical seal – Pre-assembled double cartridge mechanical seal (motor-side and liquid-side seals in one unit) Your O-rings and hardware are still in good condition and you only need to replace the seal cartridge.
    Cartridge mechanical seal + O-ring kit – Double cartridge mechanical seal– Complete O-ring kit, matched to your pump model You are doing a full rebuild and want the O-rings replaced with the seal.
    Cartridge mechanical seal + O-ring kit + long spring – Double cartridge mechanical seal– Complete O-ring kit, matched to your pump model– Long spring for the bearing housing / volute (Flygt 607 48 00) Your build uses the long housing retention spring and it needs replacing.
    Cartridge mechanical seal + O-ring kit + basic repair hardware kit – Double cartridge mechanical seal– Complete O-ring kit, matched to your pump model– Basic repair hardware kit: snap rings and wave washer Your retaining rings or washer were damaged during removal or are missing.
    Cartridge mechanical seal + O-ring kit + basic repair hardware kit + long spring – Double cartridge mechanical seal– Complete O-ring kit, matched to your pump model– Basic repair hardware kit: snap rings and wave washer– Long spring for the bearing housing / volute (Flygt 607 48 00) You want the most complete refresh: new seal, O-rings, retaining hardware and long spring.
    Not sure which kit you need? Call or text 561-414-1046 with a photo of your pump nameplate — no purchase required.
    Applications

    • Flygt 2670 — 2670.180, 2670.181, plus MSHA versions 2670.081 and 2670.082

    • Flygt 3153 — 3153.091, 3153.095, 3153.181, 3153.182, 3153.185, 3153.350, 3153.390, 3153.660, 3153.670

    • Flygt 5100 — 5100.210, 5100.211, 5100.220, 5100.221

    The Flygt 2670 is a 2600-series submersible dewatering pump used on construction sites, in mines and for draining flooded areas where the liquid carries abrasive particles, and is also available in MSHA-approved versions for underground mining. The Flygt 3153 is an N-technology submersible pump for clean water, surface water and wastewater containing solids or long-fibered material, with a chopper version for heavily contaminated sewage and sludge. The Flygt 5100 is an abrasion-resistant submersible slurry pump for sand, gravel, grit and ash duty. All of these share the 35 mm plug-in cartridge seal covered by this kit.

    Important: the Flygt 5100 is built on three different shaft sizes. This 35 mm kit fits the 5100.210, .211, .220 and .221. If you have a 5100.250, .251, .260 or .261 you need our Flygt Plug-In 45 mm Seal Kit, and for the 5100.300 or .310 you need the Flygt Plug-In 60 mm Seal Kit.

    Don’t see your exact build number? Call or text 561-414-1046 with your pump nameplate and we’ll confirm the correct configuration.

    Important fitment note: Flygt plug-in seal assemblies can vary by build. Please enter your full pump model number at checkout under “Pump Model Number Notes” so we can confirm the correct configuration for your unit

    Explore our full line up of Pump Repair Kits

    Looking for more? Shop  Shaft seals, Parts & Accessories, and Pre-Cut Gaskets.

    Have questions?- Call us anytime-we’re here to help

  • SPECIFICATIONS

    Cross References / Alternative Part Numbers

    Also searched as

    • Flygt plug-in 35mm cartridge seal
    • Flygt 35mm double cartridge mechanical seal
    • Flygt double mechanical seal cartridge (pre-assembled)
    • Flygt 3153 repair kit / Flygt 3153 seal kit
    • Flygt 2670 mechanical seal / Flygt 2670 dewatering pump seal
    • Flygt 5100.210 mechanical seal / Flygt 5100.220 plug-in seal

    Model number variations (as printed on nameplates and typed in search)

    • 2670 — 2670.180, 2670.181, 2670.081, 2670.082; also typed 2670-180, 2670 180, BS 2670, BS 2670.181
    • 3153 — 3153.091, 3153.095, 3153.181, 3153.182, 3153.185, 3153.350, 3153.390, 3153.660, 3153.670; also typed 3153-181, 3153 181, N 3153, NP 3153, NS 3153, F 3153
    • 5100 — 5100.210, 5100.211, 5100.220, 5100.221; also typed 5100-210, 5100 210, HS 5100.210, H 5100

    Brand variations
    Flygt, Xylem Flygt, ITT Flygt

    Part number cross references (verify by pump build/configuration)

    • 6415030 (commonly listed as replacing 6415000)
    • 7708530 (commonly listed for a 35mm plug-in seal variant)

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
