Goulds Mechanical Seal 10K169 / 10K173 — 16mm

Buy Goulds mechanical seal 10k168 10k69 10k95 Goulds 10K168 / 10K172 mechanical seal 12mm Goulds 10K95 mechanical seal 25mm
Additional images

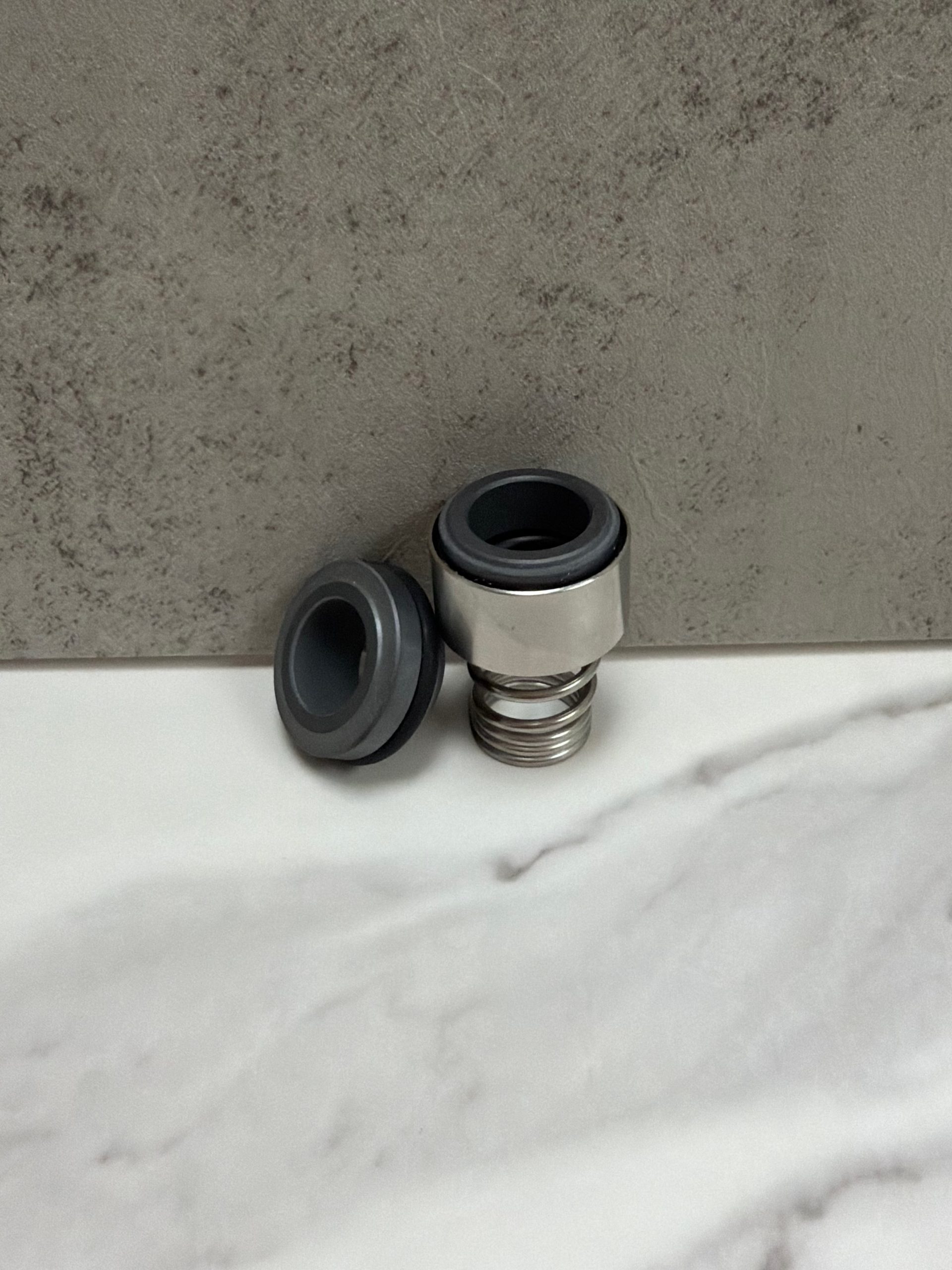

Goulds mechanical seal 10k169/ 10k168

Goulds Mechanical Seal 10K169 / 10K173 — 16mm

SKU: N/A

Weight .5 lbs
Dimensions 1 × 1 × 1.75 in
QTY Price
Have a Question?
  • DESCRIPTION

    Goulds Mechanical Seal 10K169 / 10K173 — 16mm

    Direct-fit 16mm mechanical seal replacement for Goulds vertical multistage pumps, built for reliable sealing in high-duty service with Silicon Carbide / Silicon Carbide (SiC/SiC) faces and Viton (FKM) elastomers.

    Please Note: 10K169 and 10K173 share the same design and fit. Because we supply the upgraded SiC/SiC/Viton build as standard, our 10K169 meets the 10K173 material specification—the two references are interchangeable in our catalog.

    At a glance

    • Shaft size: 16mm

    • Faces: SiC/SiC

    • Elastomers: Viton (FKM)

    • OEM cross-refs: 10K169 / 10K173

    Available versions (select from dropdown)

    • Standard Seal — 16mm: Equivalent to 10K169 / 10K173

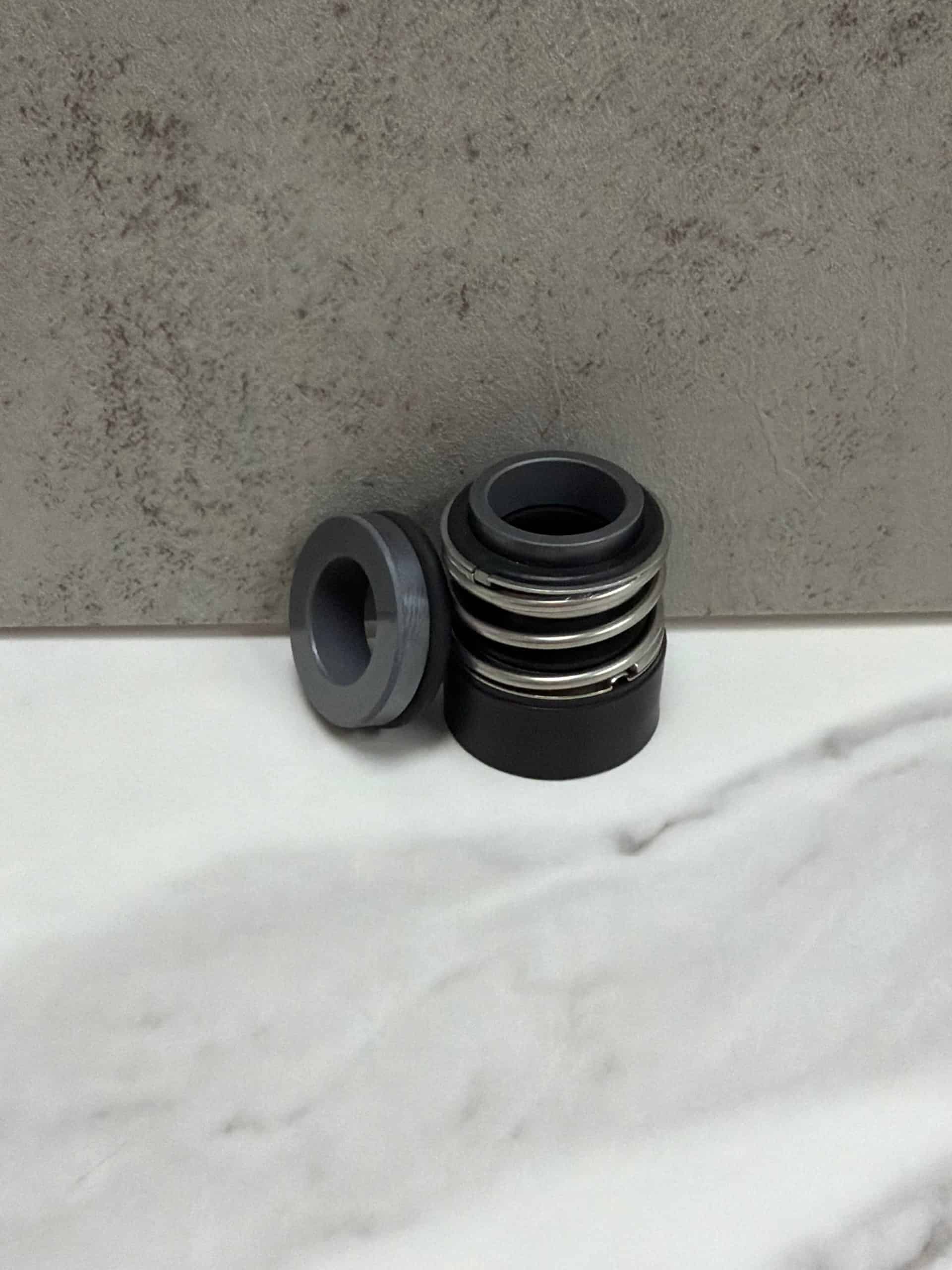

    • Upgrade Seal — 16mm: Enhanced design for higher speeds/pressure (refer to product image when selecting “Upgrade”)

      • Cross-references (for upgrade): Lowara 0160.135.R.V.T; Goulds 10K69, 10K114 (commonly used on SSV-3 / SSV-4)

    • Standard Seal with o-ring kit — for SV / e-SV / e-SVE series, frame (S) (10SV, 15SV, 22SV). OEM equivalents: 5K519 (FKM/Viton), 5K520 (EPDM).

    • Upgrade Seal with o-ring kit — SV / e-SV / e-SVE series, frame (S) (10SV, 15SV, 22SV). OEM equivalents: 5K519 (FKM/Viton), 5K520 (EPDM)

    Fits pump models (Example nameplate reference sometimes shown on SSV top plate: “3SVB1J2E0, 5 HP”)

    • Goulds: 10SV, 15SV, 22SV

    • Goulds SSV: SSV-3, SSV-4

    • Noted on equipment: Armstrong VMS-100 (Serial 555233-02)

    How to Confirm Your Seal Size — 12mm or 16mm

    Goulds/G&L SV-series pumps take either a 12mm or a 16mm seal depending on the series, and the catalog number alone won’t tell you — it can start with “3SV” either way. The series name at the top of the nameplate is the tiebreaker. If it reads SSV, your pump takes this 16mm seal; if it reads SV, it takes the smaller 12mm seal. Use the guide below to check.

    12mm or 16mm? How to Read Your Nameplate
    SV-series pumps take either a 12mm or a 16mm seal. The catalog number can start with “3SV” on both — so the series name at the top of the nameplate is what tells you the size.
    If the series reads
    SV
    catalog no.
    e.g. 3SV…
    Takes the 12mm seal
    If the series reads
    SSV
    catalog no.
    e.g. 3SVC1J2E0
    Takes this 16mm seal
    The catch: a catalog number starting with “3SV” does not tell you the size by itself — both series use it. Always check whether the series reads SV or SSV.
    Nameplate Series Seal Size Order
    SV 12mm Goulds 10K168 / 10K172 (12mm)
    SSV 16mm Goulds 10K169 / 10K173 — this seal
    Not sure which you have? Text a photo of your nameplate to 561-414-1046 and we’ll confirm the size. No purchase required.
    Cross Reference / Alternate Search Formats

    10K169 • 10K 169 • 10k169 • 10K173 • 10K 173 • 10k173 • 0160.135.R.V.T • 10K69 • 10K114

    Explore our full line up of OEM seals

    Looking for more? Shop Pump Repair Kits, Shaft Seals and Pre-Cut Gaskets

    Have questions? Call us anytime- we’re here to help

Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
