HOMA AMX646 Pump Repair Kit — 50 mm Mechanical Seals & O-Ring Kit

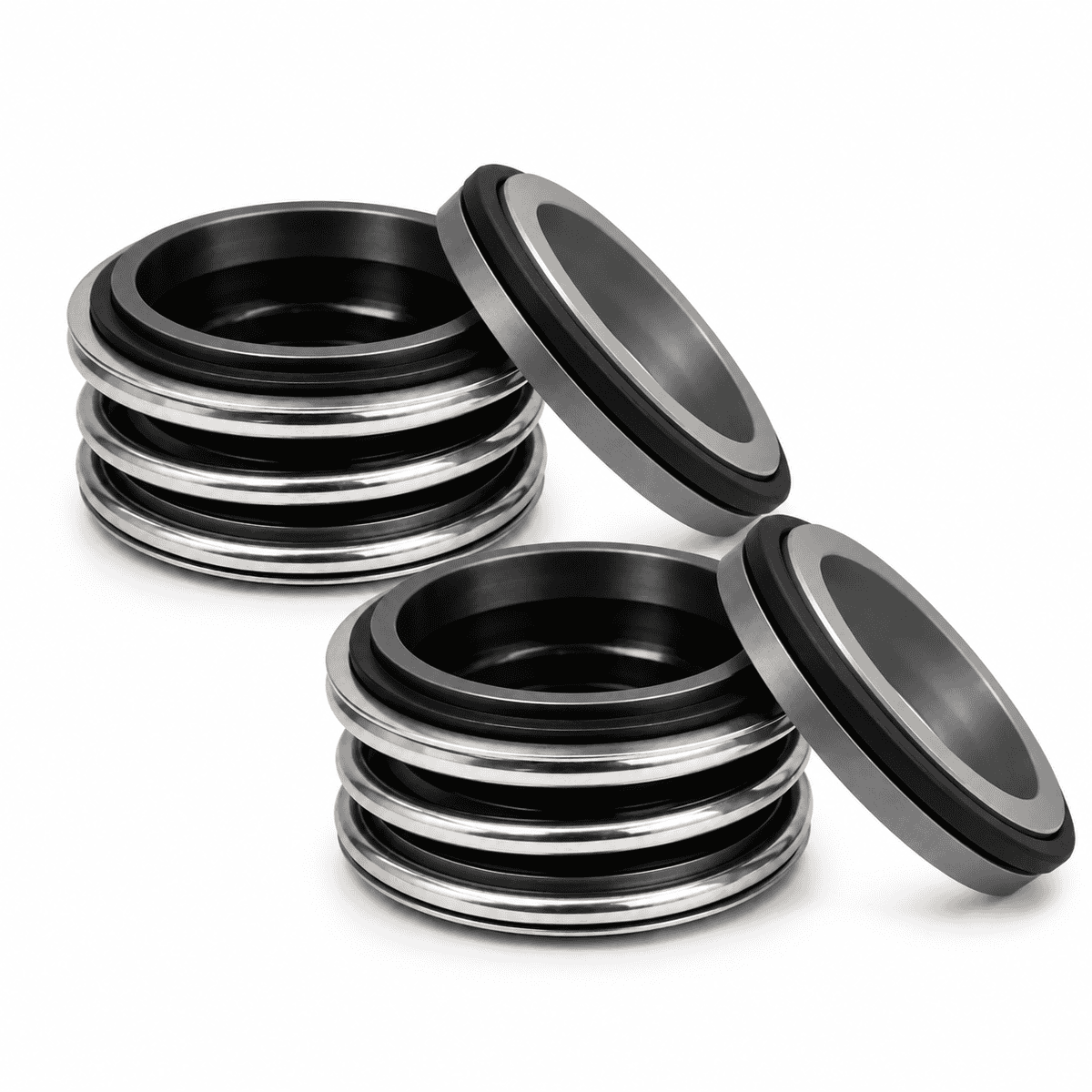

HOMA AMX646 repair kit, 50 mm silicon carbide mechanical seals with 4-piece Buna-N O-ring kit

HOMA AMX646 Pump Repair Kit — 50 mm Mechanical Seals & O-Ring Kit

Weight 4 lbs
Dimensions 6 × 6 × 4 in
QTY Price

$350.00
Have a Question?
  • DESCRIPTION

    HOMA AMX646 Repair Kit – 50mm Mechanical Seals

    The HOMA AMX646 repair kit is a direct-fit rebuild kit for the HOMA AMX646 submersible pump — 50 mm upper and lower HOMA-special mechanical seals in silicon carbide with Viton elastomers, supplied with the 4-piece Buna-N O-ring kit. Built to OEM-equivalent standards or higher.

    What’s included

    • 50 mm OEM equivalent Homa special mechanical seal (upper) – Silicon carbide / silicon carbide (SiC/SiC), Viton (FKM)

    • 50 mm OEM equivalent Homa special mechanical seal (lower) – Silicon carbide / silicon carbide (SiC/SiC), Viton (FKM)

    • Buna-N O-ring kit

    Application

    • Pump compatibility: Homa AMX646

    The AMX646 is a HOMA AMX-series submersible wastewater pump, and the upper and lower seal pair is what keeps the motor dry once the pump is back in the wet well. Silicon carbide running against silicon carbide is the face combination for water carrying grit — it takes the abrasive load that grooves a carbon face, which is why HOMA specifies SiC on both sides as standard. Viton elastomers cover the temperature and chemical range of municipal and industrial duty. The seals in this kit are the HOMA special design, not a standard-seat seal, and the kit ships with all four O-rings needed for the reassembly. Built to OEM-equivalent standards or higher.

    Rebuilding a HOMA AMX64x pump?

    The AMX64x range runs different seal sizes across builds, so match by your full nameplate designation and confirm the seat style before ordering.

    Not sure which seal material your pump needs? Read How to Choose the Right Mechanical Seal Materials for Your Pump Application.

    Explore our full line up of Pump Repair Kits

    Looking for more? Check out our Shaft seals,Parts/Accessories & OEM seals

    Have questions?- Call us anytime-we’re here to help

  • SPECIFICATIONS



Disclaimer: Seal House USA provides aftermarket replacement parts. Any OEM names are used strictly for cross-reference. We are an independent supplier.
