Flygt 3045 Pump Repair Kit — Fits 3045.091, 3045.180, 3045.181

Flygt 3045 Pump Repair Kit — Fits 3045.091, 3045.180, 3045.181

Direct-fit aftermarket repair kit for Flygt 3045 submersible pumps. It replaces the primary sealing components serviced during routine maintenance and rebuilds, restoring leak-free operation and cutting downtime. The 3045 uses a single factory seal arrangement across the range, so one kit covers every build. Cross-references to US Seal VGM-8026 and Flygt 83 91 18 / 83 91 19. Built to OEM-equivalent standards or higher.

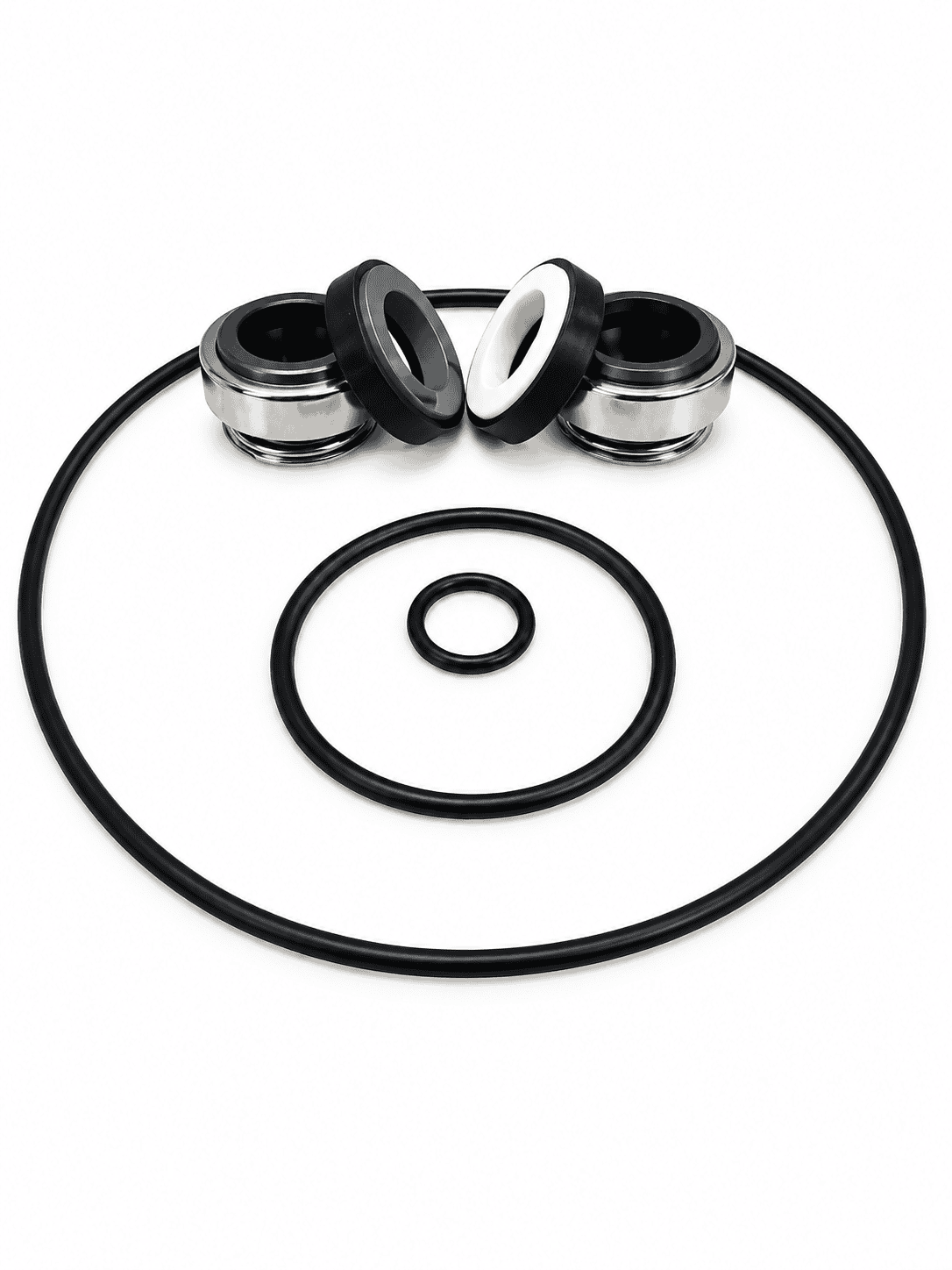

What’s included:

• Upper mechanical seal

• Lower mechanical seal

• Complete O-ring set: Buna-N (Nitrile / NBR & Viton), cross-referencing Flygt O-ring kit 80 10 33

Applications

• Flygt 3045 — 3045.091, 3045.180, 3045.181

The Flygt 3045 is a compact submersible pump at 1.2 kW on three-phase or 0.75 kW single-phase, built as a submersible sewage pump for small lift stations, building and basement drainage, pump chambers, package treatment plants and light industrial wastewater. The CP version runs a channel impeller in high-head duty; the DP and DF versions use a vortex hydraulic, which lets rag, fibre and solids pass straight through the volute instead of catching on the vane — the reason the 3045 turns up in septic, effluent and dirty-water service where a closed impeller would block. The impeller is polyamide PA66 on a stainless steel shaft, which keeps the pump light and corrosion-resistant but means the mechanical seals are what wear. The factory pairs a carbon upper seal with a silicon carbide lower — hard faces where the grit is, a lower-friction pairing where it runs in oil — and this kit supplies both along with the full O-ring set.

Nameplate prefixes you may see: CP (channel impeller), DP and DF (vortex), followed by a head class — MT (medium head) or HT (high head) — and an impeller curve code such as 230, 234, 250 or 252.

These are the builds Flygt covers with basic repair kit 601 89 49, which uses the same seals and O-ring set supplied here. Enter your full model number at checkout under “Pump Model Notes“. Not sure of your build? Send a photo of the nameplate to info@sealhouseusa.com, or call or text 561-414-1046 — no purchase required, our seal specialists will match it.
